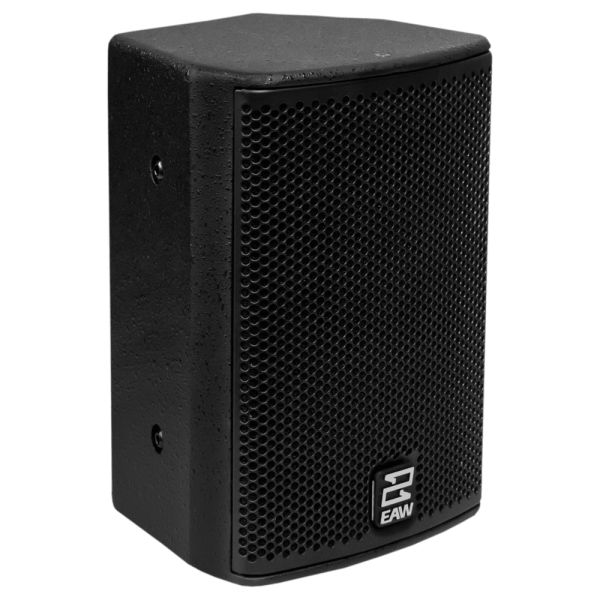

EAW MKC50 5.25in 2-Way Coaxial Loudspeaker (Black)

The EAW MKC50 is a compact and versatile 150W passive 2-way loudspeaker that offers exceptional audio performance in a variety of professional audio applications. As part of the MKC series, the MKC50 builds on the evolution of coaxial loudspeakers, delivering high-fidelity sound with a sleek, black finish. Designed for use in both portable and installed settings, this loudspeaker features a 5.25-inch low-frequency transducer paired with a 1-inch dome tweeter, providing outstanding clarity, dispersion, and output. With its innovative port design, the MKC50 is engineered to produce audio that is as pristine as that of a professional studio monitor, making it ideal for environments where clear, detailed sound is required.

Featuring a nominal beamwidth of 110 degrees conical, the MKC50 ensures wide, even coverage, ideal for use in smaller venues, classrooms, or as part of an array in larger systems. The speaker's maximum SPL of 121 dB (12 dB crest factor) and operating range from 80Hz to 20kHz allow it to deliver both high-output sound and detailed fidelity across the full spectrum of audio. The 87 dB axial sensitivity and a calculated axial output of 109 dB average (121 dB peak) provide an impressive performance, ensuring that the MKC50 excels even in demanding environments. The speaker is also designed with weather protection and transformer options for added versatility, allowing it to be used in both indoor and outdoor applications without compromising durability.

The MKC50's flexibility extends to its mounting options, which include the ability to mount the speaker in horizontal or vertical orientations using the pan & tilt wall bracket, as well as ceiling and microphone stand mounts. This makes it ideal for a variety of installation applications, from sound reinforcement in small venues to use as a high-quality monitor on stage or in rehearsal spaces. The speaker is also compatible with the UXA4401 amplifier, which helps to optimize its performance by utilizing EAW's Focusing and DynO DSP technologies. The MKC50 combines ease of use, portability, and excellent audio quality, making it an indispensable tool for professionals in need of a compact, high-performance loudspeaker.

Features

• 150W passive 2-way loudspeaker with 5.25-inch cone and 1-inch dome tweeter
• Patented coaxial design for superior fidelity, dispersion, and output
• Nominal beamwidth of 110 degrees conical for wide coverage
• Max SPL of 121 dB (12 dB crest factor) and 115 dB (6 dB crest factor)
• Operating range from 80Hz to 20kHz with axial sensitivity of 87 dB
• High-fidelity sound with calculated axial output of 109 dB average (121 dB peak)
• Innovative port design for pristine audio similar to professional studio monitors
• Flexible mounting options with M6 threaded points for pole or mic stand, and M5 threaded pattern for wall or ceiling brackets
• Weather protection and transformer options for added durability
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 9.3 x 6.5 x 5.6 inches, Net weight: 7.2 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 121 dB
• Max SPL (6 dB Crest Factor): 115 dB
• Operating Range: 80Hz - 20kHz
• Nominal Beamwidth: 110 degrees conical
• Axial Sensitivity: 87 dB
• Calculated Axial Output: 109 dB average, 121 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 6.2 ohms @ 15kHz minimum
• Recommended HPF: 80Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 150W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 5.25 inch cone, 1.25 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch dome tweeter, coaxial
• Operating Modes: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Physical

• Physical Rigging: 3 x pairs of M6 threaded points for pole or microphone stand mount adapters, 4 x M5 threaded pattern for wall or ceiling mount bracket
• Dimensions: 9.3 x 6.5 x 5.6 inches
• Net Weight: 7.2 lbs
