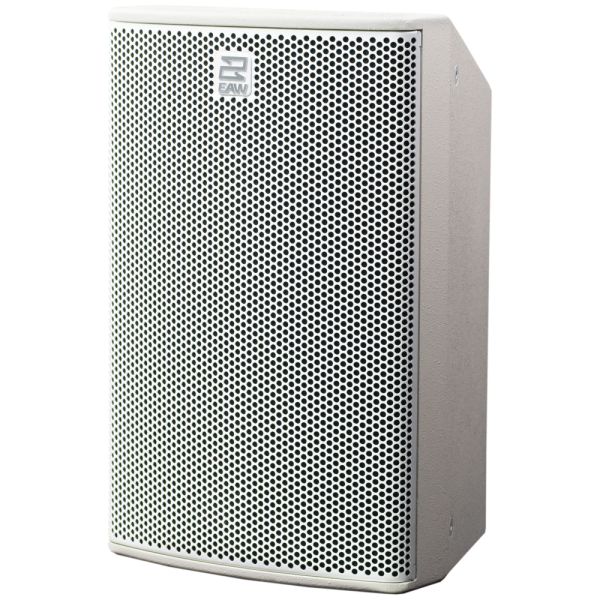

EAW MKC120PL-WP 12in 2-Way Coaxial Loudspeaker 70V/100V Weatherproof (White)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The EAW MKC120PL-WP is a 600W passive 2-way portable loudspeaker designed for professional audio applications that require high-output, compact sound reinforcement with exceptional pattern control. As part of the MKC series, the MKC120PL-WP takes coaxial loudspeaker technology to the next level, featuring the patented Concentric Summation Array (CSA) coaxial horn. This advanced technology delivers superior control, fidelity, and output, ensuring consistent tonality across the entire 90 x 60-degree coverage area, even at high SPL levels. With an IP56 rating, the MKC120PL-WP is specifically designed to withstand outdoor and challenging environments, making it an ideal choice for both permanent and temporary installations.
The MKC120PL-WP is built with a weather-resistant white finish, offering both durability and aesthetics. Its 12-inch low-frequency transducer and 1-inch exit compression driver with a 44mm voice coil deliver a wide frequency range from 48Hz to 20kHz, making it suitable for a variety of audio needs. The speaker is capable of producing a maximum SPL of 135 dB (12 dB crest factor) and 129 dB (6 dB crest factor), allowing it to fill large venues with clear, high-fidelity sound. The speaker also features a nominal beamwidth of 90 x 60 degrees, which is rotatable for flexible coverage, ensuring it can adapt to different acoustic requirements and spatial configurations.
The MKC120PL-WP is versatile in its deployment options. It can be mounted in either horizontal or vertical orientations using a pan & tilt wall bracket or U-bracket. Additionally, the speaker includes a pole stand mount with two available tilt positions, offering a wide range of installation possibilities. The integrated M10 mounting points, handle, and weather protection options further enhance its versatility and ease of use. It is also designed for use with EAW's UXA4403 amplifiers, providing optimal performance through advanced DSP processing with EAW Focusing and DynO technologies. The MKC120PL-WP ensures reliable, high-quality audio delivery across a wide range of professional audio applications.
Features
- 600W passive 2-way loudspeaker with 12-inch cone and 1-inch exit compression driver
- Patented CSA coaxial horn for superior control, fidelity, and output
- IP56-rated for dust and water resistance, suitable for outdoor and challenging environments
- Nominal beamwidth of 90 x 60 degrees, rotatable for flexible coverage
- Max SPL of 135 dB (12 dB crest factor) and 129 dB (6 dB crest factor)
- Operating range from 48Hz to 20kHz with an axial sensitivity of 95 dB
- High-fidelity sound at high SPL levels, ideal for installations and mobile applications
- Integrated M10 mounting points, handle, and pole mount with two available tilt positions
- Weather protection and transformer options for durability in various environments
- Compatible with UXA4403 amplifiers for optimal performance with EAW Focusing and DynO DSP
- 11 M10 suspension points and 4 M6 mounting pattern for flexible rigging and wall mounting
- Dimensions: 22.4 x 14.5 x 13.4 inches, Net weight: 37 lbs, Shipping weight: 42 lbs
Specifications
Performance
- Max SPL (12 dB Crest Factor): 135 dB
- Max SPL (6 dB Crest Factor): 129 dB
- Operating Range: 48Hz - 20kHz
- Nominal Beamwidth: 90 x 60 degrees, rotatable
- Axial Sensitivity: 95 dB
- Calculated Axial Output: 123 dB Average
- Nominal Phase: +15° from ideal high-pass filter
- Input Impedance: 8 ohms nominal, 7.4 ohms @ 270Hz minimum
- Recommended HPF: 45Hz, 12dB/oct
Accelerated Life Test
- LF/HF: 600W @ 8 ohms
Configuration
- LF Transducer, Loading: 1 x 12 inch cone, 2.5 inch voice coil, vented
- HF Transducer, Loading: 1 x 1 inch exit, 44mm voice coil compression driver, Concentric Summation Array (CSA)
- Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO
Physical
- Physical Rigging: 11 x M10 Suspension Points, 4 x M6 Mounting pattern for wall mount bracket
- Dimensions: 22.4 x 14.5 x 13.4 inches
- Net Weight: 37 lbs
- Shipping Weight: 42 lbs
