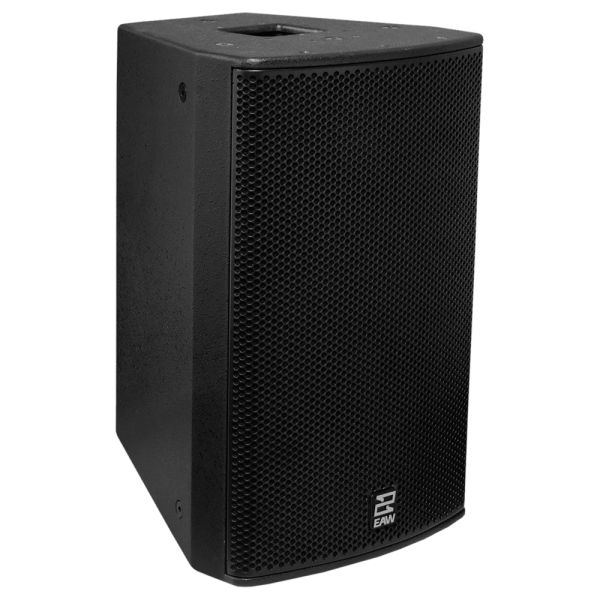

EAW MKC120PL-WP 12in 2-Way Coaxial Loudspeaker 70V/100V Weatherproof (Black)

The EAW MKC120PL-WP is a 600W passive 2-way loudspeaker specifically engineered for high-performance audio in challenging environments. Featuring a 12-inch low-frequency driver and a 1-inch exit, 44mm voice coil compression driver, this speaker is designed to deliver powerful, clear sound with superior pattern control and fidelity. Part of the MKC series, which represents a major advancement in coaxial loudspeaker technology, the MKC120PL-WP integrates EAW's patented Concentric Summation Array (CSA) technology, ensuring even sound distribution and consistent tonality across its 90 x 60-degree coverage area. This results in exceptional sound clarity and accuracy, even at high sound pressure levels (SPL).

The MKC120PL-WP is built with durability and versatility in mind. It is IP56-rated, ensuring resistance to dust and water ingress, making it ideal for outdoor and other tough environments. With multiple mounting options, including horizontal and vertical orientations, the MKC120PL-WP can be deployed easily with a pan & tilt wall bracket or a U-bracket. The speaker also features a pole stand mount with two tilt positions for additional flexibility. Its black finish and weather-resistant design make it suitable for permanent installations or mobile applications in a wide range of professional audio settings, from concert venues to corporate events and outdoor installations.

In terms of performance, the MKC120PL-WP excels with a maximum SPL of 135 dB (12 dB crest factor) and an operating range of 48Hz to 20kHz. This ensures the loudspeaker can handle demanding audio applications while maintaining excellent clarity across a broad spectrum. The speaker's axial sensitivity of 95 dB and calculated axial output of 123 dB (average) further enhance its ability to deliver high-fidelity sound in various environments. Additionally, the MKC120PL-WP is designed to be used with the UXA4403 amplifiers, offering enhanced performance through EAW's Focusing and DynO DSP technologies. This makes it a versatile solution for both installed and touring audio systems, providing high-output sound with precise pattern control.

Features

• 600W passive 2-way loudspeaker with 12-inch cone and 1-inch exit compression driver
• IP56-rated for dust and water resistance, suitable for outdoor and tough environments
• Patented CSA coaxial horn for superior control, fidelity, and output
• Nominal beamwidth of 90 x 60 degrees, rotatable for versatile coverage
• Max SPL of 135 dB (12 dB crest factor) and 129 dB (6 dB crest factor)
• Operating range from 48Hz to 20kHz with an axial sensitivity of 95 dB
• High-fidelity sound at high SPL levels, ideal for installations and mobile applications
• Integrated M10 mounting points, handle, and pole mount with two available tilt positions
• Weather protection and transformer options for durability in various environments
• Compatible with UXA4403 amplifiers for optimal performance with EAW Focusing and DynO DSP
• 11 M10 suspension points and 4 M6 mounting pattern for flexible rigging and wall mounting
• Dimensions: 22.4 x 14.5 x 13.4 inches, Net weight: 37 lbs, Shipping weight: 42 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 135 dB
• Max SPL (6 dB Crest Factor): 129 dB
• Operating Range: 48Hz - 20kHz
• Nominal Beamwidth: 90 x 60 degrees, rotatable
• Axial Sensitivity: 95 dB
• Calculated Axial Output: 123 dB Average
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 7.4 ohms @ 270Hz minimum
• Recommended HPF: 45Hz, 12dB/oct

Accelerated Life Test

• LF/HF: 600W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 12 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch exit, 44mm voice coil compression driver, Concentric Summation Array (CSA)
• Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO

Physical

• Physical Rigging: 11 x M10 Suspension Points, 4 x M6 Mounting pattern for wall mount bracket
• Dimensions: 22.4 x 14.5 x 13.4 inches
• Net Weight: 37 lbs
• Shipping Weight: 42 lbs
