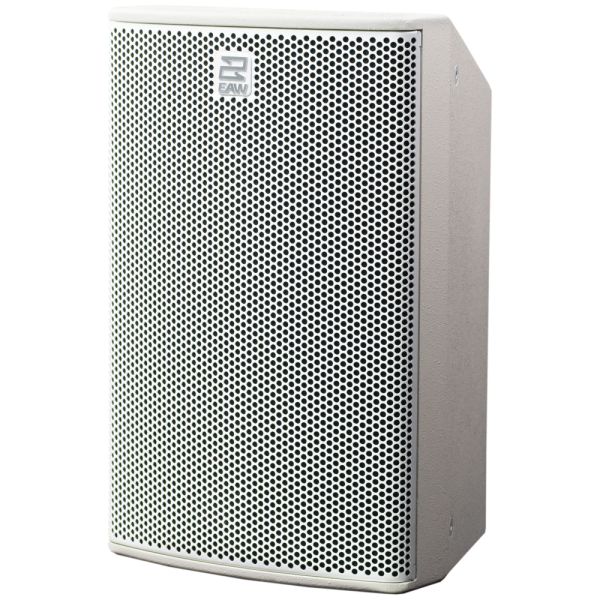

EAW MKC120 12in 2-Way Coaxial Loudspeaker (White)

The EAW MKC120 is a 600W passive 2-way portable loudspeaker that blends high output with a sleek white finish, designed for a wide array of professional audio applications. As part of the MKC series, it represents a significant advancement in coaxial loudspeaker technology. The MKC120 delivers exceptional sound clarity and pattern control, thanks to its innovative Concentric Summation Array (CSA) technology. This technology ensures consistent tonality across the entire coverage area, even at high sound pressure levels, making it ideal for both installed and mobile sound reinforcement applications. With the MKC120, audio professionals can achieve a high-fidelity listening experience that remains clear and balanced throughout its 90 x 60-degree coverage area.

Equipped with a 12-inch low-frequency driver and a 1-inch exit, 44mm voice coil compression driver, the MKC120 delivers powerful, clear sound across a broad frequency range of 48Hz to 20kHz. Its design includes an integrated M10 mounting system, pole mount, and handle for easy transport, as well as weather protection and transformer options for added durability in diverse environments. The speaker can be mounted horizontally or vertically using a pan & tilt wall bracket or U-bracket, offering flexibility for various installation configurations. Its compact size, high output, and ease of integration make the MKC120 an excellent choice for a wide range of audio applications, including professional sound reinforcement and permanent installations.

With a maximum SPL of 135 dB (12 dB crest factor) and an axial sensitivity of 95 dB, the MKC120 is capable of delivering high-level audio output in large spaces. The speaker's design and performance are enhanced by its compatibility with the UXA4403 amplifier, ensuring optimal power and performance. The MKC120 provides clear, powerful sound with precise pattern control, making it a versatile solution for demanding audio professionals.

Features

• 600W passive 2-way loudspeaker with 12-inch cone and 1-inch exit compression driver
• Patented CSA coaxial horn for superior control, fidelity, and output
• Nominal beamwidth of 90 x 60 degrees, rotatable for versatile coverage
• Max SPL of 135 dB (12 dB crest factor) and 129 dB (6 dB crest factor)
• Operating range from 48Hz to 20kHz with an axial sensitivity of 95 dB
• High-fidelity sound at high SPL levels, ideal for installations and mobile applications
• Weather protection and transformer options for durability in various environments
• Integrated M10 mounting points and pole mount with two available tilt positions
• Compatible with UXA4403 amplifiers for optimal performance
• 11 M10 suspension points and 4 M6 mounting pattern for flexible rigging and wall mounting
• Dimensions: 22.4 x 14.5 x 13.4 inches, Net weight: 37 lbs, Shipping weight: 42 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 135 dB
• Max SPL (6 dB Crest Factor): 129 dB
• Operating Range: 48Hz - 20kHz
• Nominal Beamwidth: 90 x 60 degrees, rotatable
• Axial Sensitivity: 95 dB
• Calculated Axial Output: 123 dB Average
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 7.4 ohms @ 270Hz minimum
• Recommended HPF: 45Hz, 12dB/oct

Accelerated Life Test

• LF/HF: 600W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 12 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch exit, 44mm voice coil compression driver, Concentric Summation Array (CSA)
• Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO

Physical

• Physical Rigging: 11 x M10 Suspension Points, 4 x M6 Mounting pattern for wall mount bracket
• Dimensions: 22.4 x 14.5 x 13.4 inches
• Net Weight: 37 lbs
• Shipping Weight: 42 lbs
