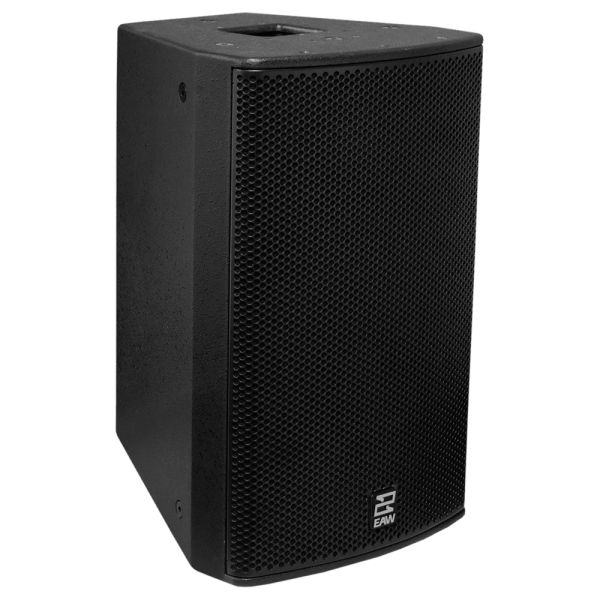

EAW MKC120 12in 2-Way Coaxial Loudspeaker (Black)

The EAW MKC120 is a high-performance, 600W passive 2-way portable loudspeaker, designed to deliver exceptional sound quality and versatility for various professional audio applications. This loudspeaker is part of the MKC series, which represents a significant evolution in coaxial loudspeaker technology. The MKC120 features a compact yet powerful design with a 12-inch low-frequency driver and a high-frequency compression driver that together provide an impressive output and clarity across a wide frequency range. The unit is equipped with EAW's patented Concentric Summation Array (CSA) technology, ensuring superior pattern control, fidelity, and high output, even at elevated sound pressure levels. This speaker's ability to maintain consistent tonality throughout the coverage area makes it an excellent choice for both permanent installations and mobile applications.

With a robust black finish, the MKC120 is designed to integrate seamlessly into a variety of environments, both aesthetically and acoustically. It offers several deployment options, including horizontal or vertical mounting via a pan & tilt wall bracket or U-bracket, and a pole stand mount with two tilt positions. Additionally, the speaker includes integrated M10 mounting points and weather protection options, ensuring durability and flexibility for use in a wide range of conditions. In high-output settings or more controlled environments, the MKC120 delivers a powerful, high-fidelity audio experience that is ideal for professional sound reinforcement.

With a maximum SPL of 135 dB (12 dB crest factor) and an operating range from 48Hz to 20kHz, the MKC120 is capable of producing clear, loud sound across a wide frequency spectrum. Its nominal beamwidth of 90 x 60 degrees ensures excellent coverage, while its compact size allows for easy transport and deployment. This speaker also benefits from a highly durable construction, with options for weather protection and transformer integration, making it suitable for both indoor and outdoor use. The MKC120 is compatible with the UXA4403 amplifier, providing a complete solution for high-quality audio reproduction in various environments.

Features

• 600W passive 2-way loudspeaker with 12-inch cone and 1-inch exit compression driver
• Patented CSA coaxial horn for superior control, fidelity, and output
• Nominal beamwidth of 90 x 60 degrees, rotatable for versatile coverage
• Max SPL of 135 dB (12 dB crest factor) and 129 dB (6 dB crest factor)
• Operating range from 48Hz to 20kHz with an axial sensitivity of 95 dB
• High-fidelity sound at high SPL levels, ideal for installations and mobile applications
• Weather protection and transformer options for durability in various environments
• Integrated M10 mounting points and pole mount with two available tilt positions
• Compatible with UXA4403 amplifiers for optimal performance
• 11 M10 suspension points and 4 M6 mounting pattern for flexible rigging and wall mounting
• Dimensions: 22.4 x 14.5 x 13.4 inches, Net weight: 37 lbs, Shipping weight: 42 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 135 dB
• Max SPL (6 dB Crest Factor): 129 dB
• Operating Range: 48Hz - 20kHz
• Nominal Beamwidth: 90 x 60 degrees, rotatable
• Axial Sensitivity: 95 dB
• Calculated Axial Output: 123 dB Average
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 7.4 ohms @ 270Hz minimum
• Recommended HPF: 45Hz, 12dB/oct

Accelerated Life Test

• LF/HF: 600W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 12 inch cone, 2.5 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch exit, 44mm voice coil compression driver, Concentric Summation Array (CSA)
• Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO

Physical

• Physical Rigging: 11 x M10 Suspension Points, 4 x M6 Mounting pattern for wall mount bracket
• Dimensions: 22.4 x 14.5 x 13.4 inches
• Net Weight: 37 lbs
• Shipping Weight: 42 lbs
