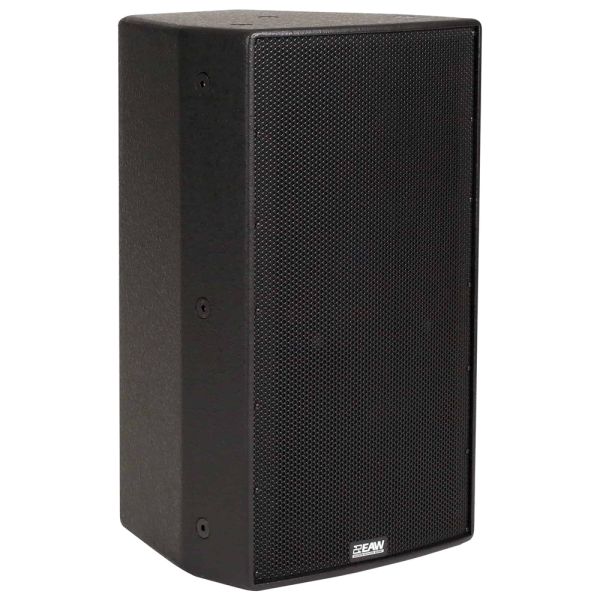

EAW MK8196ZPL-WP 8in 2-Way Full Range Loudspeaker 90° x 60° Weatherproof (Black)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The EAW MK8196zPL-WP is a high-performance, 300W, 8-inch passive 2-way portable loudspeaker designed for installations requiring both reliability and flexibility. With its IP56 rating, this speaker is built to withstand demanding environments, making it ideal for both indoor and outdoor applications in venues such as houses of worship, auditoriums, stadiums, and themed entertainment complexes. The MK8196zPL-WP offers exceptional sound clarity and broad coverage with its 90° horizontal x 60° vertical beamwidth, ensuring consistent, full-range audio even in acoustically challenging spaces.
One of the standout features of the MK8196zPL-WP is its carefully engineered HF horn, which is loaded with a 1-inch exit, 1.5-inch voice coil compression driver. The design of the horn is larger than traditional compact two-way systems, enabling extended pattern control into the midrange frequencies. This allows for a seamless overlap between the horn's pattern and the woofer's pattern at the critical crossover area. The result is a smooth, continuous sound wave with no off-axis voids, delivering uniform coverage across the entire listening area. The advanced beamwidth matching crossover point selection ensures that transitions between the high-frequency and low-frequency subsystems occur exactly where the horn and woofer's patterns align.
The MK8196zPL-WP is equipped with an internal passive crossover/filter network that goes beyond simple signal division. This sophisticated network uses complex, asymmetrical slopes to integrate the two subsystems and performs necessary equalization functions, ensuring that power response is smooth and consistent. This design allows the speaker to be powered by a single amplifier channel while achieving optimal performance.
For installation flexibility, the MK8196zPL-WP features a user-rotatable horn, allowing the speaker enclosure to be mounted both vertically and horizontally, providing the freedom to adapt the loudspeaker's orientation based on the specific needs of the space. This loudspeaker can easily accommodate various configurations.
With a power rating of 300W and a maximum SPL of 130 dB (12 dB crest factor), the MK8196zPL-WP is capable of delivering high-output sound that can fill large spaces while maintaining excellent clarity. The speaker's operating range spans from 65 Hz to 19 kHz, covering a wide frequency range for a full-spectrum audio experience. Its rugged, weather-resistant design ensures it can handle both outdoor and indoor applications, providing dependable performance in diverse environments.
Constructed from exterior-grade Baltic birch plywood and finished in a durable black coat, the MK8196zPL-WP is built for long-term reliability. It includes a U-bracket for mounting, making installation in fixed or portable setups easy and secure. The speaker's dimensions (19.75 x 11.75 x 11.03 inches) and weight (30 lbs net, 36 lbs shipping) ensure that it is both compact and portable, without sacrificing sound quality or power.
Features
- 300W passive 2-way loudspeaker with 90° horizontal x 60° vertical coverage
- 8-inch woofer with 2-inch voice coil and vented design for deep, full-range sound
- 1-inch exit, 1.5-inch voice coil compression driver with 120° x 60° CD horn for extended pattern control
- Beamwidth-matching crossover points eliminate off-axis voids for uniform coverage
- Advanced passive crossover with complex, asymmetrical slopes for optimal power response
- Operating range from 65 Hz to 19 kHz with a maximum SPL of 130 dB (12 dB crest factor)
- User-rotatable horn allows for flexible mounting (vertical or horizontal orientation)
- Rugged, weather-resistant IP56-rated enclosure, ideal for both indoor and outdoor installations
- Dimensions: 19.75 x 11.75 x 11.03 inches; Net weight: 30 lbs; Shipping weight: 36 lbs
- Includes U-bracket for secure mounting in various configurations
- Input connectors: NL4 x 2, Barrier Strip for versatile connectivity
Specifications
Performance
- Max SPL (12 dB Crest Factor): 130 dB
- Max SPL (6 dB Crest Factor): 124 dB
- Operating Range: 65 Hz to 19 kHz
- Nominal Beamwidth: 90° Horizontal x 60° Vertical
- Nominal Phase: +15° from ideal high-pass filter
- Input Impedance: LF/HF = 8Ω
Accelerated Life Test
- LF/HF: 49v
- Power Rating: 300W
Configuration
- LF Transducer, Loading: 1 x 8-inch Cone, 2-inch Voice Coil, Vented
- HF Transducer, Loading: 1 x 1-inch Exit, 1.4-inch Voice Coil Compression Driver, Horn Loaded
- Operating Modes: Passive
Physical
- Dimensions (HWD): 19.75 x 11.75 x 11.03 inches
- Net Weight: 30 lbs
- Shipping Weight: 36 lbs
- Mounting Accessories: U-Bracket
- Input Connector: NL4 x 2, Barrier Strip
