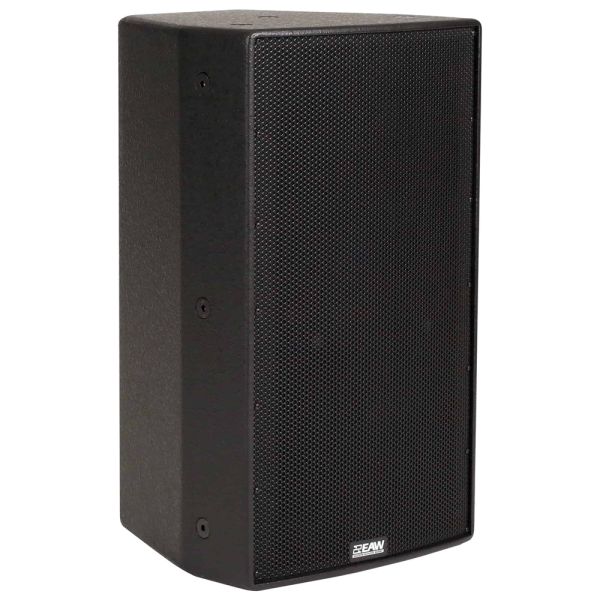

EAW MK8196Z 8in 2-Way Full Range Loudspeaker 90° x 60° (Black)

The EAW MK8196z is a highly versatile and compact passive loudspeaker that sets a new standard in installation performance, offering exceptional sound quality and advanced features for a variety of applications. Designed for small to medium-sized venues, this 300W 8-inch 2-way loudspeaker delivers impressive audio performance in both commercial and residential environments, such as houses of worship, corporate AV systems, auditoriums, and theaters. The MK8196z features a 90° horizontal x 60° vertical nominal beamwidth, providing broad and even coverage throughout the listening area.

The MK8196z features an advanced design that overcomes the common issues found in traditional compact two-way systems. Despite its small size, it outperforms many larger loudspeakers due to the integration of features. The HF horn is loaded with a 1-inch exit, 1.5-inch voice coil compression driver, which is larger than those found in most traditional compact two-way horns. This enables better pattern control and extends the control of the horn's pattern lower into the midrange, where it overlaps with the woofer's pattern, ensuring seamless integration across the critical crossover area.

The loudspeaker utilizes a beamwidth-matching crossover point, optimizing the transition between the subsystems. This ensures that the HF horn's 120° horizontal by 60° vertical coverage pattern aligns with the woofer's pattern, eliminating the off-axis voids commonly found in traditional systems. The internal passive crossover/filter network uses complex, asymmetrical slopes for equalization, further smoothing the power response and ensuring a clean, balanced output. The MK8196z is designed to be powered by a single amplifier channel, making setup simple and straightforward without compromising on sound quality.

The MK8196z provides a maximum SPL of 130 dB (12 dB crest factor) and 124 dB (6 dB crest factor), delivering audio performance across a wide frequency range, from 65Hz to 19kHz. It is built with a user-rotatable horn, allowing the enclosure to be mounted vertically or horizontally for greater flexibility and ease of installation. This feature makes it an ideal choice for environments where optimal coverage is required in various orientations.

Constructed from durable, exterior-grade Baltic birch plywood, the MK8196z is built to withstand the rigors of professional installations and demanding environments. The rugged enclosure is finished in a sleek black color, which not only complements the performance but also ensures the loudspeaker integrates into various interior designs. The included U-bracket mounting accessory makes the MK8196z easy to install and position for precise sound distribution. With its compact size, high-quality construction, and impressive performance, the MK8196z is an ideal choice for high-demand audio applications.

Features

• 300W passive 2-way loudspeaker with 90° horizontal x 60° vertical beamwidth
• Advanced HF horn with 1-inch exit, 1.5-inch voice coil compression driver
• 120° x 60° CD horn for broad, even coverage across the frequency spectrum
• Beamwidth-matched crossover points eliminate off-axis voids for smooth coverage
• Operating range from 65Hz to 19kHz for full-range sound reproduction
• Maximum SPL of 130 dB (12 dB crest factor), 124 dB (6 dB crest factor)
• Passive operation with internal complex crossover for smoother power response
• User-rotatable horn allows for flexible vertical or horizontal mounting
• Durable, exterior-grade Baltic birch plywood enclosure with a sleek black finish
• U-bracket mounting accessory for easy installation
• Dimensions: 19.75 x 11.75 x 11.03 inches; Net weight: 30 lbs; Shipping weight: 36 lbs
• Input connectors: NL4 x 2, Barrier Strip for flexible connectivity options

Specifications

Performance

• Max SPL (12 dB Crest Factor): 130 dB
• Max SPL (6 dB Crest Factor): 124 dB
• Operating Range: 65 Hz to 19 kHz
• Nominal Beamwidth: 90° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF/HF = 8Ω

Accelerated Life Test

• LF/HF: 49v
• Power Rating: 300W

Configuration

• LF Transducer, Loading: 1 x 8-inch Cone, 2-inch Voice Coil, Vented
• HF Transducer, Loading: 1 x 1-inch Exit, 1.4-inch Voice Coil Compression Driver, Horn Loaded
• Operating Modes: Passive

Physical

• Dimensions (HWD): 19.75 x 11.75 x 11.03 inches
• Net Weight: 30 lbs
• Shipping Weight: 36 lbs
• Mounting Accessories: U-Bracket
• Input Connector: NL4 x 2, Barrier Strip
