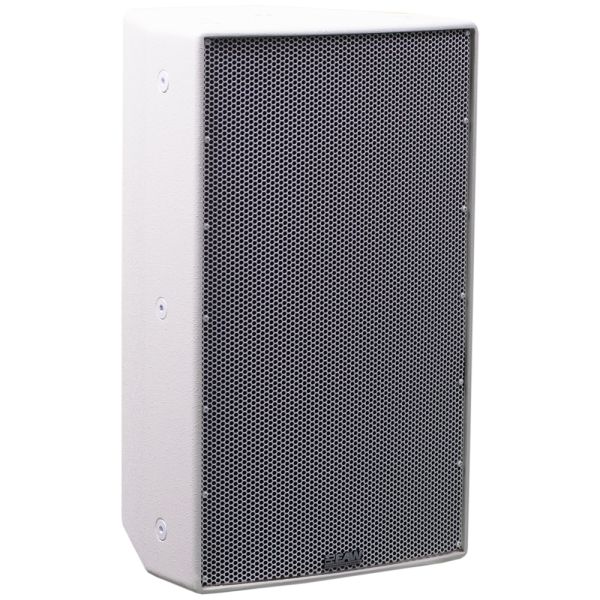

EAW MK8126iPL-WP 8in 2-Way Full Range Loudspeaker 120° x 60° Weatherproof (White)

The EAW MK8126iPL-WP is a high-performance, 300W passive 2-way loudspeaker specifically engineered for installation in both residential and commercial applications where sound clarity, durability, and versatility are essential. This loudspeaker offers an IP56 rating, making it ideal for use in challenging environments with exposure to dust and moisture, ensuring reliable performance in outdoor venues, houses of worship, hotel ballrooms, auditoriums, and more. Despite its compact size, the MK8126iPL-WP outperforms many traditional compact two-way loudspeakers, offering superior audio coverage and clarity.

The system is equipped with an 8-inch woofer and a 1-inch exit, 1.4-inch voice coil compression driver, mounted on a constant directivity (CD) horn. The horn is significantly larger than traditional compact two-way horns, enabling extended pattern control into the midrange frequencies. This expanded control helps ensure that the horn's pattern overlaps with the woofer's pattern in the critical crossover area, eliminating the beamwidth mismatch that often leads to off-axis voids in the crossover region of other loudspeakers. The integration of the subsystems is optimized by the advanced beamwidth-matching crossover point selection, ensuring smooth and consistent sound distribution across the entire frequency range.

The MK8126iPL-WP's internal passive crossover/filter network is designed to power the system through a single amplifier channel, while smoothing the power response and enhancing audio performance. The system's crossover point selection, which is beamwidth-optimized, eliminates the typical off-axis voids, providing a more uniform sound field and improved audio clarity throughout the entire coverage area. The user-rotatable horn allows for flexible mounting, enabling the enclosure to be oriented either vertically or horizontally to suit different installation requirements and acoustic preferences.

In terms of performance, the MK8126iPL-WP delivers impressive sound pressure levels. It reaches a maximum SPL of 130 dB with a 12 dB crest factor and 124 dB with a 6 dB crest factor. The system operates within an impressive frequency range of 65Hz to 19kHz, ensuring it captures a wide spectrum of sound while maintaining exceptional clarity. The system is designed to handle 300W of power with an accelerated life test rating of 49V at 300W, providing excellent durability and long-term performance in demanding environments.

With an 8Ω nominal impedance, the MK8126iPL-WP is well-suited for use with most amplifiers and integrated systems. Its passive operating mode requires no additional external processing, simplifying setup and integration into both existing and new audio systems. The speaker's physical construction features a robust exterior-grade Baltic birch plywood enclosure finished with a wear-resistant textured white paint, ensuring durability while maintaining a sleek appearance that blends seamlessly into its surroundings.

The MK8126iPL-WP is versatile, with dimensions of 19.75 x 11.75 x 11.03 inches and a net weight of 30 lbs, making it easy to transport and mount. It includes a U-bracket for flexible mounting options, and its connectivity is provided via two NL4 connectors and a barrier strip for added flexibility. The MK8126iPL-WP provides outstanding sound quality and durability.

Features

• 300W passive 2-way loudspeaker with 8-inch LF transducer and 1-inch exit, 1.4-inch voice coil compression driver
• IP56-rated enclosure for protection against dust and moisture, ideal for both indoor and outdoor use
• 120° horizontal x 60° vertical nominal beamwidth for broad and consistent sound coverage
• Maximum SPL of 130 dB (12 dB crest factor), 124 dB (6 dB crest factor) for powerful audio reproduction
• Operating range from 65Hz to 19kHz, delivering a wide frequency response
• Beamwidth-optimized crossover design eliminates off-axis voids, ensuring even sound coverage
• Rotatable horn for flexible vertical or horizontal mounting options
• Internal passive crossover with complex, asymmetrical slopes for superior integration and equalization
• Compact, lightweight design (19.75 x 11.75 x 11.03 inches, 30 lbs net weight) for easy installation
• U-bracket mounting accessory included for flexible mounting in various environments
• Rugged Baltic birch plywood construction with wear-resistant textured white paint finish
• Input connectors: NL4 x 2, Barrier Strip for flexible connectivity

Specifications

Performance

• Max SPL (12 dB Crest Factor): 130 dB
• Max SPL (6 dB Crest Factor): 124 dB
• Operating Range: 65Hz - 19kHz
• Nominal Beamwidth: 120° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF/HF = 8Ω
• Accelerated Life Test: 300W

Accelerated Life Test

• LF/HF: 49V, 300W

Configuration

• LF Transducer, Loading: 1 x 8 inch cone, 2 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch exit, 1.4 inch voice coil compression driver, horn loaded
• Operating Modes: Passive

Physical

• Dimensions: 19.75 x 11.75 x 11.03 inches
• Net Weight: 30 lbs
• Shipping Weight: 36 lbs
• Mounting Accessories: U-Bracket
• Input Connector: NL4 x 2, Barrier Strip
