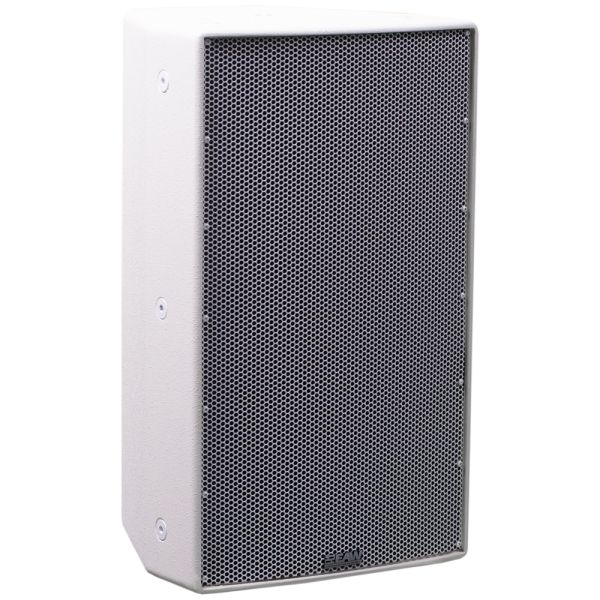

EAW MK8126i 8in 2-Way Full Range Loudspeaker 120° x 60° (White)

The EAW MK8126i is a powerful and compact 300W passive 2-way portable loudspeaker designed to deliver exceptional sound performance, even in the most challenging environments. The MK8126i sets a new benchmark in installation performance by overcoming the common issues faced by compact two-way systems. Despite its smaller size, this loudspeaker outperforms many traditional compact systems, making it an ideal solution for a range of applications such as corporate A/V systems, houses of worship, auditoriums, meeting rooms, and other smaller venues. Its clean, high-fidelity output ensures it is well-suited for both background and foreground audio reinforcement.

The MK8126i incorporates an advanced design with an 8-inch low-frequency (LF) transducer featuring a 2-inch voice coil and a vented enclosure, which ensures an accurate and robust bass response. The high-frequency (HF) section consists of a 1-inch exit, 1.4-inch voice coil compression driver mounted on a custom-designed constant directivity (CD) horn. This horn is larger than typical compact two-way horns, allowing it to extend pattern control into the midrange frequencies. This design allows the horn's pattern to overlap with the woofer's pattern in the critical crossover region, eliminating off-axis voids that are often present in traditional two-way systems. The nominal beamwidth of the MK8126i is 120° horizontally by 60° vertically, providing wide and even coverage throughout the listening area.

One of the standout features of the MK8126i is its beamwidth-matching crossover system. This system optimally selects the crossover point to ensure a seamless transition between the low and high-frequency subsystems, where the coverage patterns from both the LF and HF drivers meet. This crossover technology eliminates the beamwidth mismatch common in traditional two-way loudspeakers, ensuring a consistent, uniform sound field with no gaps or holes in coverage. The internal passive crossover/filter network goes beyond merely dividing the signal, performing critical equalization functions that further improve the speaker's overall performance.

With an operating range of 65 Hz to 19 kHz, the MK8126i provides a wide frequency response that captures all the detail of the audio, making it ideal for both speech and music applications. The speaker's maximum SPL is 130 dB (12 dB crest factor) and 124 dB (6 dB crest factor), delivering powerful, clear sound even in large or challenging environments. The MK8126i's high power-handling capacity allows it to perform reliably at high output levels, ensuring it can meet the demands of professional audio installations.

For versatility in installation, the MK8126i features a user-rotatable horn. This allows the speaker to be mounted either horizontally or vertically, depending on the acoustics and requirements of the space. The loudspeaker comes equipped with a U-bracket for secure and flexible mounting options. It also features dual NL4 input connectors and a barrier strip for easy and secure wiring. The durable exterior-grade Baltic birch plywood construction is finished in a sleek, white, wear-resistant textured paint, providing both durability and an aesthetically pleasing appearance that blends seamlessly into various environments.

Features

• 300W passive 2-way portable loudspeaker with an 8-inch LF driver and 1-inch exit compression driver
• Operating range of 65 Hz to 19 kHz, ensuring wide frequency response for clear, full-range audio
• 120° horizontal x 60° vertical nominal beamwidth for wide and even sound coverage
• Maximum SPL of 130 dB (12 dB crest factor) and 124 dB (6 dB crest factor) for high-output performance
• Advanced beamwidth-matching crossover system eliminates off-axis voids and ensures smooth transitions
• Rotatable horn allows for vertical or horizontal mounting for flexible installation options
• Passive crossover/filter network with equalization functions for enhanced sound performance
• Durable exterior-grade Baltic birch plywood with a wear-resistant white paint finish
• Comes with U-bracket for easy mounting and dual NL4 x 2 connectors for secure wiring
• Dimensions: 19.75 x 11.75 x 11.03 inches, Net Weight: 30 lbs, Shipping Weight: 36 lbs

Specifications

Performance

• Max SPL (12 dB Crest Factor): 130 dB
• Max SPL (6 dB Crest Factor): 124 dB
• Operating Range: 65Hz - 19kHz
• Nominal Beamwidth: 120° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF/HF = 8Ω
• Accelerated Life Test: 300W

Accelerated Life Test

• LF/HF: 49V, 300W

Configuration

• LF Transducer, Loading: 1 x 8 inch cone, 2 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch exit, 1.4 inch voice coil compression driver, horn loaded
• Operating Modes: Passive

Physical

• Dimensions: 19.75 x 11.75 x 11.03 inches
• Net Weight: 30 lbs
• Shipping Weight: 36 lbs
• Mounting Accessories: U-Bracket
• Input Connector: NL4 x 2, Barrier Strip
