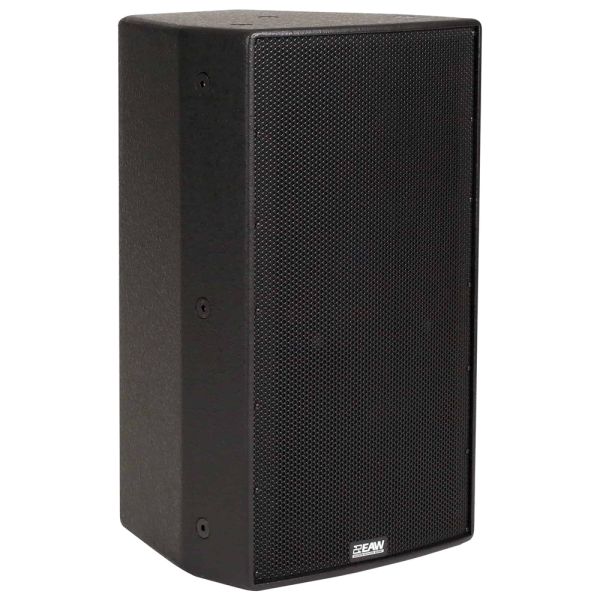

EAW MK8126i 8in 2-Way Full Range Loudspeaker 120° x 60° (Black)

The EAW MK8126i is a high-performance 300W passive 2-way portable loudspeaker designed to deliver exceptional sound quality and clarity, setting a new standard for compact two-way loudspeakers. Despite its small size, this speaker outperforms many traditional compact systems, thanks to its advanced design and superior acoustic engineering. Ideal for a variety of professional applications, the MK8126i is an excellent choice for installations in smaller venues such as corporate A/V systems, houses of worship, auditoriums, meeting rooms, and more. It can also be used effectively in distributed audio systems and as a fill speaker in larger spaces.

The MK8126i features a powerful 8-inch low-frequency (LF) transducer with a 2-inch voice coil and a vented enclosure for optimal bass response. The high-frequency (HF) transducer is a 1-inch exit, 1.4-inch voice coil compression driver loaded onto a custom-designed constant directivity (CD) horn. This design enhances the speaker's pattern control, providing uniform sound coverage with a nominal beamwidth of 120° horizontally and 60° vertically. The large HF horn allows for pattern control lower into the midrange, ensuring that the horn's pattern overlaps with the woofer's pattern in the critical crossover area, eliminating off-axis voids often found in traditional two-way loudspeakers. This feature delivers a smooth, even response across the entire listening area.

To further optimize the performance, the MK8126i incorporates an advanced beamwidth-matching crossover system. This system carefully selects the crossover point to ensure that the transition between the LF and HF drivers occurs precisely where their coverage patterns align. This eliminates the beamwidth mismatch that can create gaps in coverage, leading to voids in sound, particularly in the critical crossover region. The passive crossover/filter network uses complex asymmetrical slopes to integrate the subsystems, providing excellent signal division and performing critical equalization functions that improve the overall sound quality.

With a wide operating range of 65 Hz to 19 kHz, the MK8126i is capable of delivering clear and balanced sound across a wide frequency spectrum. The loudspeaker offers a maximum SPL of 130 dB (12 dB crest factor) and 124 dB (6 dB crest factor), ensuring that it can handle high-output applications without distortion or loss of clarity. This makes it an ideal solution for both background and foreground sound reinforcement in a variety of environments.

The MK8126i is built for versatility and ease of installation. Its user-rotatable horn allows for the "rotate the enclosure around the horn" option, enabling the speaker to be mounted vertically or horizontally depending on the needs of the space. Additionally, the speaker comes equipped with a U-bracket for easy mounting in a variety of installation scenarios. The robust construction features exterior-grade Baltic birch plywood, ensuring durability while maintaining excellent acoustic performance. The speaker is finished in a sleek, wear-resistant black paint, providing a professional look that blends seamlessly with any installation environment.

Overall, the EAW MK8126i offers superior sound performance, flexibility, and reliability for a wide range of professional audio applications. Its compact size, advanced acoustic design, and versatile mounting options make it an excellent choice for installations where space is limited but high-quality sound is essential.

Features

• 300W passive 2-way portable loudspeaker with an 8-inch LF driver and 1-inch exit compression driver
• Operating range of 65 Hz to 19 kHz, delivering clear and full-range audio
• 120° horizontal x 60° vertical nominal beamwidth for even sound coverage
• Maximum SPL of 130 dB (12 dB crest factor) and 124 dB (6 dB crest factor)
• Advanced beamwidth-matching crossover system to eliminate off-axis voids
• Rotatable horn design allows for vertical or horizontal mounting
• Passive crossover/filter network with asymmetrical slopes for optimal integration
• Durable construction with exterior-grade Baltic birch plywood and sleek black paint finish
• Comes with U-bracket for easy mounting in various installation environments
• Dimensions: 19.75 x 11.75 x 11.03 inches, Weight: 30 lbs (Net), 36 lbs (Shipping)

Specifications

Performance

• Max SPL (12 dB Crest Factor): 130 dB
• Max SPL (6 dB Crest Factor): 124 dB
• Operating Range: 65Hz - 19kHz
• Nominal Beamwidth: 120° Horizontal x 60° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF/HF = 8Ω
• Accelerated Life Test: 300W

Accelerated Life Test

• LF/HF: 49V, 300W

Configuration

• LF Transducer, Loading: 1 x 8 inch cone, 2 inch voice coil, vented
• HF Transducer, Loading: 1 x 1 inch exit, 1.4 inch voice coil compression driver, horn loaded
• Operating Modes: Passive

Physical

• Dimensions: 19.75 x 11.75 x 11.03 inches
• Net Weight: 30 lbs
• Shipping Weight: 36 lbs
• Mounting Accessories: U-Bracket
• Input Connector: NL4 x 2, Barrier Strip
