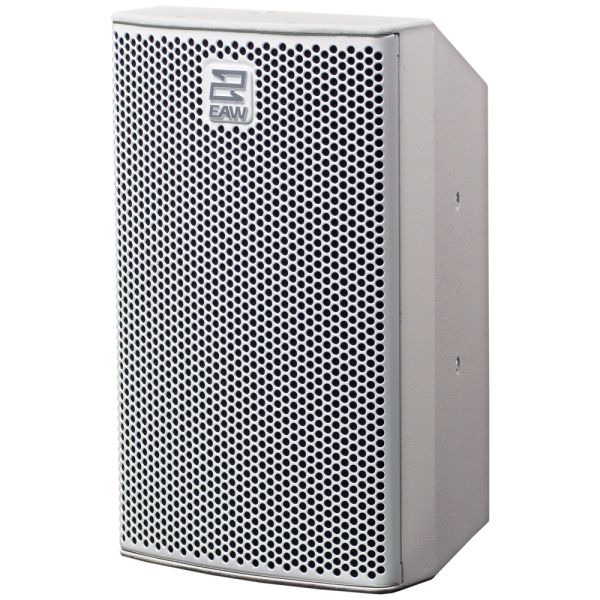

EAW MK80PL-WP 8in 2-Way Coaxial Loudspeaker Weatherproof (White)

The EAW MK80PL-WP is a 450W passive 2-way portable loudspeaker, engineered to deliver exceptional sound quality with durability and versatility for both mobile and installed applications. As part of the MKC series, the MK80PL-WP showcases a sophisticated evolution in coaxial loudspeaker design. It features an 8-inch low-frequency transducer combined with a 1-inch exit compression driver and a 35mm voice coil, delivering powerful audio that rivals high-end studio monitors. The white finish makes it suitable for environments where aesthetic integration is important, while the IP56 rating ensures it can withstand harsh conditions, offering dust and water resistance for both indoor and outdoor use.

Performance-wise, the MK80PL-WP excels with a maximum SPL of 132 dB (12 dB crest factor) and 126 dB (6 dB crest factor), ensuring it can produce loud, clear sound across a broad spectrum of frequencies. With an operating range of 60Hz to 20kHz and axial sensitivity of 93 dB, the speaker is designed to deliver high-fidelity audio with excellent dispersion, even at high output levels. The nominal beamwidth of 90 x 60 degrees, which is rotatable, allows the MK80PL-WP to adapt to various spatial configurations, ensuring optimal sound coverage in both vertical and horizontal orientations. Its calculated axial output of 120 dB average (132 dB peak) further guarantees consistent and powerful sound reproduction, making it suitable for sound reinforcement in large spaces or outdoor events.

Designed for flexibility, the MK80PL-WP offers a range of mounting options to suit different installation needs. It can be mounted horizontally or vertically using the optional pan & tilt wall bracket, and it can also be installed on a ceiling or microphone stand with the included M6 threaded points. Additionally, the speaker features two M10 suspension points for permanent rigging solutions. The MK80PL-WP supports 70V/100V transformer options, making it suitable for large-scale distributed audio systems. The speaker is optimized for use with the companion UXA4401 amplifier, which enhances the speaker's performance through EAW's Focusing and DynO DSP technologies, ensuring clear and dynamic sound delivery across a wide frequency range.

Features

• 450W passive 2-way loudspeaker with 8-inch cone and 1-inch exit compression driver
• Patented Concentric Summation Array (CSA) for superior fidelity, dispersion, and output
• Nominal beamwidth of 90 x 60 degrees, rotatable for flexible coverage
• Max SPL of 132 dB (12 dB crest factor) and 126 dB (6 dB crest factor)
• Operating range from 60Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Weather protection and transformer options for durability in various environments
• Flexible mounting options with 2x M10 suspension points, M6 threaded points for wall/ceiling brackets, and pole mount adapters
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 16.6 x 10 x 10.5 inches, Net weight: 22 lbs, Shipping weight: 26 lbs
• Input connectors: 2x Neutrik NL4, 2-pin barrier strip

Specifications

Performance

• Max SPL (12 dB Crest Factor): 132 dB
• Max SPL (6 dB Crest Factor): 126 dB
• Operating Range: 60Hz - 20kHz
• Nominal Beamwidth: 90 x 60 degrees rotatable
• Axial Sensitivity: 93 dB
• Calculated Axial Output: 120 dB average, 132 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 7.4 ohms @ 270Hz minimum
• Recommended HPF: 60Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 450W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 8 inch cone, 2 inch voice coil, vented
• HF Transducer, Loading: 1x1-inch exit, 35mm voice coil compression driver, Concentric Summation Array (CSA) loaded
• Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO

Physical

• Physical Rigging: 2x M10 Suspension points, 4 x M6 threaded pattern for wall or ceiling mount bracket, 2x pairs of M6 threaded points for pole mount adapter
• Dimensions: 16.6 x 10 x 10.5 inches
• Net Weight: 22 lbs
• Shipping Weight: 26 lbs
• Input Connector: 2x Neutrik NL4, 2-pin barrier strip
