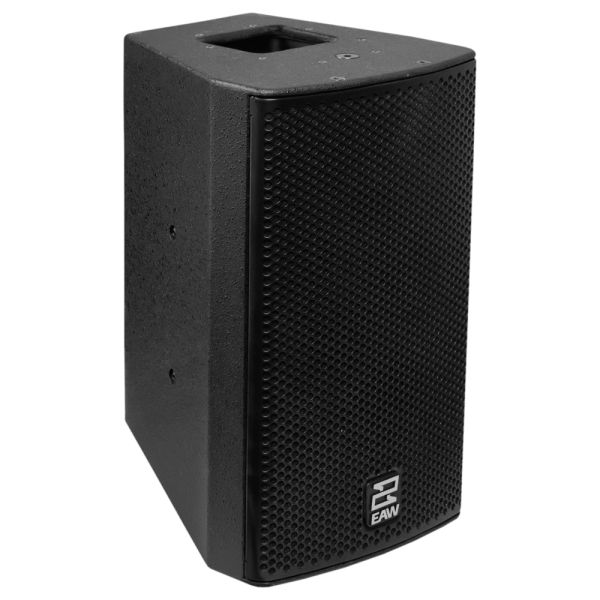

EAW MK80PL-WP 8in 2-Way Coaxial Loudspeaker Weatherproof (Black)

The EAW MK80PL-WP is a 450W passive 2-way portable loudspeaker designed to deliver high-quality audio with exceptional durability. As part of the MKC series, it represents a significant advancement in coaxial loudspeaker technology. The MKC80PL-WP is equipped with an 8-inch low-frequency transducer and a 1-inch exit compression driver with a 35mm voice coil, providing powerful, full-range sound. Its Concentric Summation Array (CSA) design ensures superior dispersion, fidelity, and output, making it ideal for both portable and permanent installations. With an IP56 rating for dust and water resistance, the MKC80PL-WP is built to withstand the elements, making it suitable for use in both indoor and outdoor environments.

The MK80PL-WP offers a wide coverage area with its nominal beamwidth of 90 x 60 degrees, which is rotatable to adapt to different deployment configurations. This ensures that the speaker delivers even sound coverage across large areas, mounted vertically or horizontally. It is capable of producing a maximum SPL of 132 dB (12 dB crest factor) and 126 dB (6 dB crest factor), making it ideal for applications that require high-output sound with clear, dynamic audio. With a frequency range of 60Hz to 20kHz and an axial sensitivity of 93 dB, the MKC80PL-WP ensures high-fidelity sound with excellent clarity, while the calculated axial output of 120 dB average (132 dB peak) ensures powerful audio reproduction.

For maximum versatility, the MK80PL-WP can be deployed in a variety of configurations using its flexible mounting options. It can be mounted in either horizontal or vertical orientations using a pan & tilt wall bracket, or it can be mounted on a ceiling or microphone stand using the M6 threaded points. The speaker is also equipped with two M10 suspension points for more permanent rigging solutions. It supports both weather protection and transformer options, making it a great choice for outdoor installations or environments with varying weather conditions. Additionally, the MKC80PL-WP is optimized for use with the companion UXA4401 amplifier, which delivers enhanced performance through EAW's Focusing and DynO DSP technologies, ensuring optimal sound clarity and control.

Features

• 450W passive 2-way loudspeaker with 8-inch cone and 1-inch exit compression driver
• Patented Concentric Summation Array (CSA) for superior fidelity, dispersion, and output
• Nominal beamwidth of 90 x 60 degrees, rotatable for flexible coverage
• Max SPL of 132 dB (12 dB crest factor) and 126 dB (6 dB crest factor)
• Operating range from 60Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Weather protection and transformer options for durability in various environments
• Flexible mounting options with M6 threaded points for pole or mic stand, 2x M10 suspension points for rigging
• Compatible with UXA4401 amplifier for optimal performance with EAW Focusing and DynO DSP
• Dimensions: 16.6 x 10 x 10.5 inches, Net weight: 22 lbs, Shipping weight: 26 lbs
• Input connectors: 2x Neutrik NL4, 2-pin barrier strip

Specifications

Performance

• Max SPL (12 dB Crest Factor): 132 dB
• Max SPL (6 dB Crest Factor): 126 dB
• Operating Range: 60Hz - 20kHz
• Nominal Beamwidth: 90 x 60 degrees rotatable
• Axial Sensitivity: 93 dB
• Calculated Axial Output: 120 dB average, 132 dB peak
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 7.4 ohms @ 270Hz minimum
• Recommended HPF: 60Hz 12 dB/oct

Accelerated Life Test

• LF/HF: 450W @ 8 ohms

Configuration

• LF Transducer, Loading: 1 x 8 inch cone, 2 inch voice coil, vented
• HF Transducer, Loading: 1x1-inch exit, 35mm voice coil compression driver, Concentric Summation Array (CSA) loaded
• Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO

Physical

• Physical Rigging: 2x M10 Suspension points, 4 x M6 threaded pattern for wall or ceiling mount bracket, 2x pairs of M6 threaded points for pole mount adapter
• Dimensions: 16.6 x 10 x 10.5 inches
• Net Weight: 22 lbs
• Shipping Weight: 26 lbs
• Input Connector: 2x Neutrik NL4, 2-pin barrier strip
