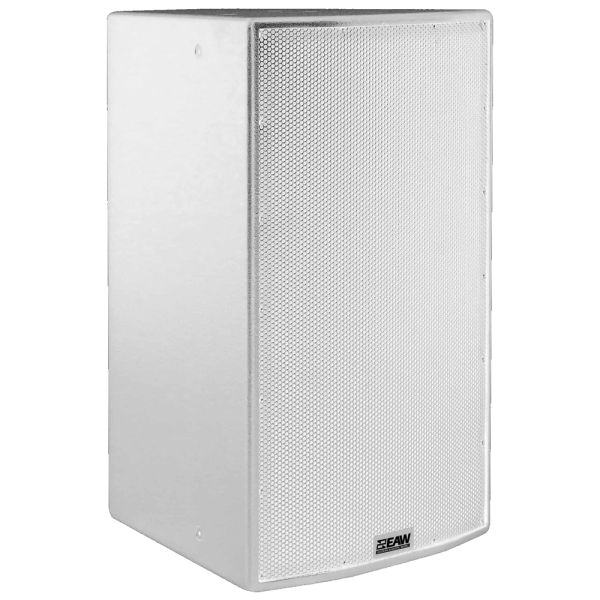

EAW MK5399i-WP 15in 2-Way Full Range Loudspeaker 90° x 90° Weatherproof (White)

The EAW MK5399i-WP is an advanced, high-performance 800W passive 2-way portable loudspeaker designed for demanding professional applications. As part of the MK5300i Series, this loudspeaker excels in both smaller venues and large-scale installations. Ideal for use in small houses of worship, auditoriums, corporate A/V systems, hotel ballrooms, and meeting rooms, the MK5399i-WP is also highly effective in larger venues, such as arenas, stadiums, nightclubs, and themed-entertainment complexes, providing consistent and high-fidelity audio across a wide range of environments.

Equipped with a 15-inch low-frequency (LF) driver and a 3-inch voice coil 1.4-inch exit compression driver, the MK5399i-WP offers a broad operating range from 48 Hz to 18 kHz. The LF driver ensures deep bass reproduction, while the HF driver delivers clear, bright treble. This combination provides a full-range audio experience, with the speaker capable of producing exceptional clarity and dynamic response throughout its frequency range. The loudspeaker features a nominal beamwidth of 90° x 90°, delivering even and consistent sound coverage across large areas, ensuring that the entire audience enjoys high-quality sound regardless of their position.

The MK5399i-WP achieves impressive sound output with a maximum SPL of 139 dB. The calculated axial output limit is 127 dB (average) and 133 dB (peak) for both LF/HF and LF sections, with the HF section reaching 127 dB (average) and 133 dB (peak). This high output capability allows the speaker to handle demanding sound reinforcement applications without distortion, providing clear, powerful sound even at higher volumes. The EAW beamwidth-matching crossover and filter design ensure that the loudspeaker provides smooth power response throughout the crossover region, eliminating discontinuities that can impact sound quality in other two-way loudspeakers. The result is a more natural and cohesive audio experience for any application.

For flexibility and customization, the MK5399i-WP offers both single-amp and bi-amp operating modes. Users can also take advantage of external signal processing, including a high-pass filter and DSP with 2-way filters, to optimize performance for specific installations. This speaker adapts to meet the unique requirements of any venue.

Built with durability in mind, the MK5399i-WP features a robust exterior-grade Baltic birch plywood construction. The speaker is finished in a wear-resistant textured white paint, making it suitable for both aesthetic and practical applications. The powder-coated perforated steel grille ensures that the speaker's internal components are well-protected while maintaining excellent acoustic transparency. Additionally, the MK5399i-WP is IP56-rated, meaning it is resistant to dust and water, making it a perfect choice for both indoor and outdoor use, even in challenging environmental conditions.

The MK5399i-WP offers professional-grade sound performance, reliability, and durability, making it an excellent choice for venues and events that require high-quality audio. This loudspeaker delivers consistent, powerful sound that meets the demands of a variety of environments.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 3-inch voice coil compression driver
• Operating range from 48 Hz to 18 kHz, offering full-range sound with deep bass and clear highs
• 90° x 90° nominal beamwidth for consistent and even coverage across large venues
• Maximum SPL of 139 dB with calculated axial output limits of 127 dB (average) and 133 dB (peak)
• Single-amp and bi-amp operating modes with external signal processing options, including high-pass filter and DSP with 2-way filters
• Beamwidth-matching crossover/filter design for smooth power response and natural sound reproduction
• Durable Baltic birch plywood construction for optimal acoustic performance and longevity
• Wear-resistant textured white paint finish for a professional appearance and added durability
• Powder-coated perforated steel grille for protection and excellent sound transparency
• IP56-rated for dust and water resistance, suitable for both indoor and outdoor environments
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 18 kHz
• Nominal Beamwidth: 90 x 90 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 18 kHz)
  • LF: 98 dB (48 Hz to 1350 Hz)
  • HF: 105 dB (1200 Hz to 18 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.9 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.7 Ohm @ 180 Hz (Minimum)
  • HF 8 Ohm (Nominal), 7.1 Ohm @ 5500 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 127 dB (Average), 133 dB (Peak)
• Max SPL: 139 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
