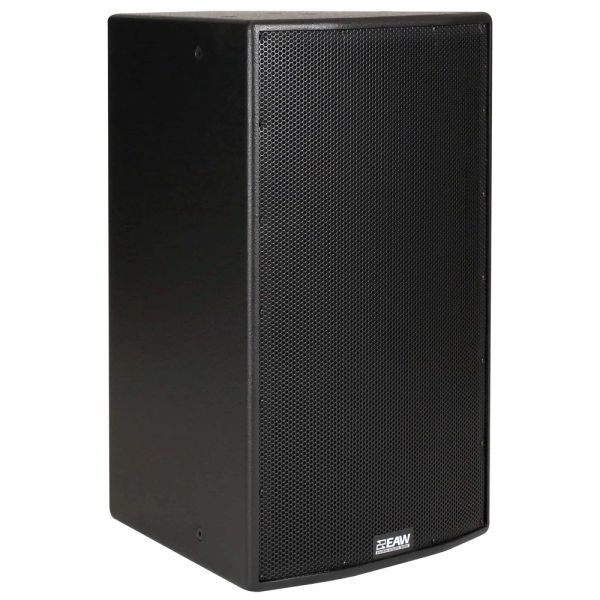

EAW MK5399i-WP 15in 2-Way Full Range Loudspeaker 90° x 90° Weatherproof (Black)

The EAW MK5399i-WP is a highly versatile, 800W passive 2-way portable loudspeaker designed to deliver exceptional sound performance across a broad range of professional applications. As part of the MK5300i Series, this speaker is engineered to meet the needs of smaller venues, such as houses of worship, auditoriums, corporate A/V systems, hotel ballrooms, and meeting rooms. It is also an excellent choice for distributed and fill sound purposes in larger spaces, including large auditoriums, stadiums, arenas, nightclubs, and themed-entertainment complexes. The MK5399i-WP combines advanced acoustic design with high power handling to deliver clean, clear, and consistent audio across various environments.

At the core of the MK5399i-WP is a 15-inch low-frequency (LF) driver paired with a 1.4-inch exit, 3-inch voice coil compression driver for the high-frequency (HF) reproduction. The combination of these drivers produces a wide operating range from 48 Hz to 18 kHz, offering a full-range audio experience that covers deep, rich bass through to bright, clear treble. The loudspeaker's 90° x 90° nominal beamwidth ensures that the sound is evenly distributed across large areas, making it suitable for both small and large venues.

The MK5399i-WP's design maximizes sound output, with an impressive maximum SPL of 139 dB. The calculated axial output limits for both LF/HF and LF sections are 127 dB (average) and 133 dB (peak), while the HF section reaches 127 dB (average) and 133 dB (peak), delivering powerful sound with minimal distortion. EAW's beamwidth-matching crossover and filter design guarantee that the power response remains smooth and even throughout the frequency spectrum, providing a seamless audio experience without the frequency discontinuities common in other two-way loudspeakers.

Flexibility is a key feature of the MK5399i-WP. The speaker can operate in both single-amp and bi-amp (external processor) modes, depending on your system configuration. For greater performance optimization, external signal processing options include a high-pass filter and DSP with 2-way filters. This loudspeaker adapts to meet your needs.

Constructed from exterior-grade Baltic birch plywood, the MK5399i-WP offers a highly durable build while maintaining superior acoustic properties. The speaker is finished in a wear-resistant textured black paint, ensuring that it stands up to the rigors of frequent use without compromising on appearance. The powder-coated perforated steel grille provides robust protection to the internal components, ensuring longevity while allowing for excellent acoustic transparency. Additionally, with an IP56 rating, the MK5399i-WP is highly resistant to dust and water, making it ideal for both indoor and outdoor applications in various environmental conditions.

Designed to meet the demanding requirements of modern professional audio systems, the MK5399i-WP delivers a reliable and high-fidelity sound solution for a wide range of venues and sound reinforcement needs. This loudspeaker offers superior performance, durability, and sound clarity.

Features

• 800W passive 2-way loudspeaker featuring a 15-inch LF driver and 3-inch voice coil compression driver
• Operating range of 48 Hz to 18 kHz, covering both low bass and high-end frequencies
• 90° x 90° nominal beamwidth for consistent and broad sound coverage
• Maximum SPL of 139 dB, with calculated axial output limits of 127 dB (average) and 133 dB (peak)
• Single-amp and bi-amp modes with external signal processing, including high-pass filter and DSP with 2-way filters
• Beamwidth-matching crossover/filter design to ensure smooth power response throughout the frequency range
• Durable Baltic birch plywood construction for optimal acoustics and long-lasting performance
• Wear-resistant textured black paint finish for enhanced durability and professional appearance
• Powder-coated perforated steel grille for protection and sound transparency
• IP56-rated for dust and water resistance, ideal for both indoor and outdoor applications
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 18 kHz
• Nominal Beamwidth: 90 x 90 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 18 kHz)
  • LF: 98 dB (48 Hz to 1350 Hz)
  • HF: 105 dB (1200 Hz to 18 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.9 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.7 Ohm @ 180 Hz (Minimum)
  • HF 8 Ohm (Nominal), 7.1 Ohm @ 5500 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 127 dB (Average), 133 dB (Peak)
• Max SPL: 139 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
