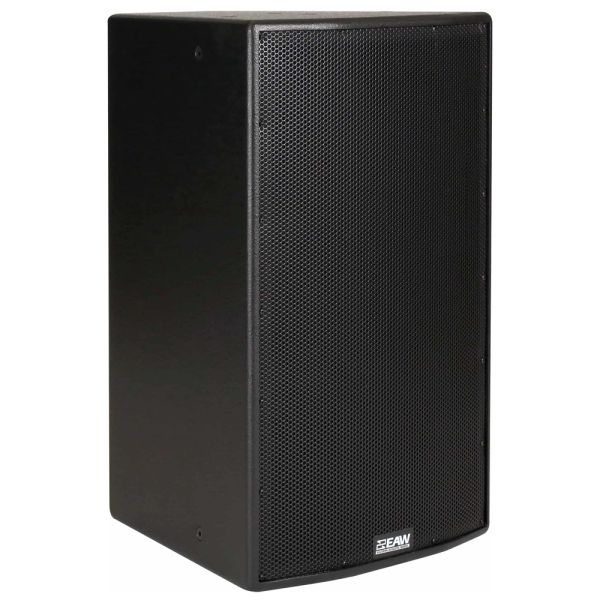

EAW MK5396i-WP 15in 2-Way Full Range Loudspeaker 90° x 60° Weatherproof (Black)

The EAW MK5396i-WP is a versatile 800W passive 2-way portable loudspeaker designed for high-output performance in a range of professional audio environments. This loudspeaker is part of the MK5300i Series, engineered for both smaller venues such as houses of worship, auditoriums, hotel ballrooms, and corporate meeting rooms, as well as larger applications like arenas, stadiums, nightclubs, and themed entertainment complexes. With a combination of high-fidelity sound and powerful output, the MK5396i-WP excels in delivering consistent, clear, and dynamic audio coverage.

At its core, the MK5396i-WP features a 15-inch low-frequency (LF) driver, paired with a high-performance 3-inch voice coil, 1.4-inch exit compression driver for the high-frequency (HF) range. Together, these drivers provide an impressive operating range from 48 Hz to 19 kHz, ensuring deep bass and crystal-clear highs. The loudspeaker's nominal beamwidth of 90° x 60° provides broad, even sound dispersion, making it suitable for large-scale installations where wide coverage is essential. The MK5396i-WP's advanced crossover/filter design ensures smooth power response, eliminating the discontinuities found in many other two-way loudspeakers.

With a maximum SPL of 139 dB and calculated axial output limits of 127 dB (average) and 133 dB (peak) for both LF/HF and LF sections, the MK5396i-WP is capable of handling even the most demanding audio requirements. This speaker can deliver high-output sound with remarkable clarity, all while maintaining the quality and integrity of the audio source. EAW's beamwidth-matching crossover design ensures even distribution of sound, making the MK5396i-WP perfect for a variety of acoustic environments.

For increased versatility, the MK5396i-WP operates in both single-amp and bi-amp (external processor) modes. It also features external signal processing, including a high-pass filter and DSP with 2-way filters, to optimize its performance. The speaker's ability to work with other MK5300i series systems and SBK Series subwoofers offers flexibility in complex sound system configurations. Enclosures for all MK5300i and SBK Series models share the same height, allowing for easy integration into arrays using EAW's preconfigured accessory flybar.

The MK5396i-WP is constructed with exterior-grade Baltic birch plywood, ensuring durability while also delivering superior acoustic properties. The speaker is finished in a wear-resistant textured black paint that protects the enclosure from environmental wear and tear while maintaining a professional appearance. Additionally, the grille is crafted from powder-coated perforated steel, providing protection while maintaining optimal sound quality. Designed with an IP56 rating, this speaker is fully dustproof and resistant to water, making it suitable for both indoor and outdoor installations.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 3-inch voice coil compression driver
• Operating range of 48 Hz to 19 kHz, delivering deep bass and crisp high-frequency response
• 90° x 60° nominal beamwidth for even and broad sound coverage
• Maximum SPL of 139 dB with calculated axial output limits of 127 dB (average) and 133 dB (peak)
• Single-amp and bi-amp operating modes with external signal processing options, including high-pass filter and DSP with 2-way filters
• Beamwidth-matching crossover design for smooth and consistent power response
• Durable exterior-grade Baltic birch plywood construction with wear-resistant textured black paint
• Powder-coated perforated steel grille for protection without compromising sound quality
• IP56 rating for dust and water resistance, ideal for both indoor and outdoor use
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 19 kHz
• Nominal Beamwidth: 90 x 60 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 19 kHz)
  • LF: 98 dB (48 Hz to 1400 Hz)
  • HF: 105 dB (1200 Hz to 19 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.8 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.7 Ohm @ 170 Hz (Minimum)
  • HF 8 Ohm (Nominal), 6.3 Ohm @ 3300 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 127 dB (Average), 133 dB (Peak)
• Max SPL: 139 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
