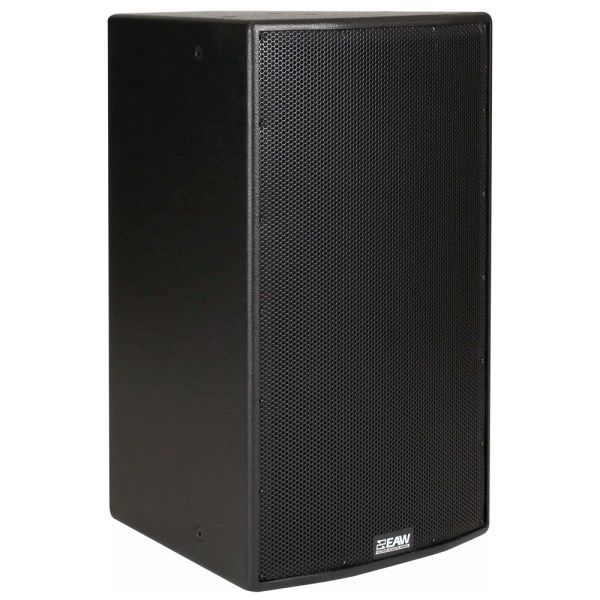

EAW MK5396i 15in 2-Way Full Range Loudspeaker 90° x 60° (Black)

The EAW MK5396i is a powerful and versatile 800W passive 2-way portable loudspeaker that delivers exceptional audio performance for a wide variety of applications. This speaker is part of the MK5300i Series, which is designed to be the primary PA system in smaller venues, including houses of worship, auditoriums, corporate A/V systems, hotel ballrooms, and meeting rooms. The MK5396i excels in larger venues as well, including arenas, stadiums, nightclubs, and themed entertainment complexes, where high output and clear, consistent sound coverage are essential.

At the core of the MK5396i is a 15-inch low-frequency (LF) driver and a 3-inch voice coil compression driver for the high-frequency (HF) range. Together, these components deliver clean, full-range audio with a broad operating range from 48 Hz to 19 kHz, ensuring robust bass response and crisp, detailed highs. The speaker features a nominal beamwidth of 90° x 60°, providing even coverage across a wide area and making it an ideal choice for installations where consistent sound is required over large distances.

One of the standout features of the MK5396i is its high SPL capability, with a maximum sound pressure level of 139 dB and calculated output limits of 127 dB (average) and 133 dB (peak) for both LF/HF and LF sections. This allows the speaker to perform at higher levels than would be expected from a loudspeaker of this size and price, making it suitable for even the most demanding environments. The speaker's advanced crossover and beamwidth-matching design ensure smooth, consistent power response throughout the entire frequency range, eliminating any unwanted discontinuities typically found in other two-way loudspeakers.

The MK5396i also offers flexibility in its configuration. Users can select between single-amp and bi-amp (external processor) operating modes, and it includes an external signal processing option with a high-pass filter and DSP with 2-way filters. This enhances the speaker's performance, ensuring that it operates optimally across various sound systems. The design is compatible with both MK5300i series systems and SBK Series subwoofers, offering seamless integration into existing PA systems. Enclosures for both series share the same height, allowing for versatile installation options where different horn patterns or speaker types are needed.

Constructed from exterior-grade Baltic birch plywood, the MK5396i is built to last while offering superior acoustic properties. The speaker is finished with a wear-resistant textured black paint, providing durability and an aesthetically pleasing appearance suitable for professional environments. The grille is powder-coated and perforated steel, offering protection while maintaining sound quality. Additionally, the MK5396i is IP56-rated, which means it is fully protected against dust and water, making it suitable for both indoor and outdoor use, even in harsh conditions.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 3-inch voice coil compression driver
• 90° x 60° nominal beamwidth for consistent coverage across large areas
• Operating range of 48 Hz to 19 kHz, delivering full-range audio with powerful bass and clear highs
• Maximum SPL of 139 dB, with calculated axial output limits of 127 dB (average) and 133 dB (peak)
• Single-amp and bi-amp operating modes with external signal processing options, including high-pass filter and DSP with 2-way filters
• Advanced beamwidth-matching crossover and filter design for smooth, consistent power response
• Constructed with exterior-grade Baltic birch plywood for durability and optimal sound quality
• Weatherproof IP56 rating, suitable for both indoor and outdoor use
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 19 kHz
• Nominal Beamwidth: 90 x 60 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 19 kHz)
  • LF: 98 dB (48 Hz to 1400 Hz)
  • HF: 105 dB (1200 Hz to 19 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.8 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.7 Ohm @ 170 Hz (Minimum)
  • HF 8 Ohm (Nominal), 6.3 Ohm @ 3300 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 127 dB (Average), 133 dB (Peak)
• Max SPL: 139 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
