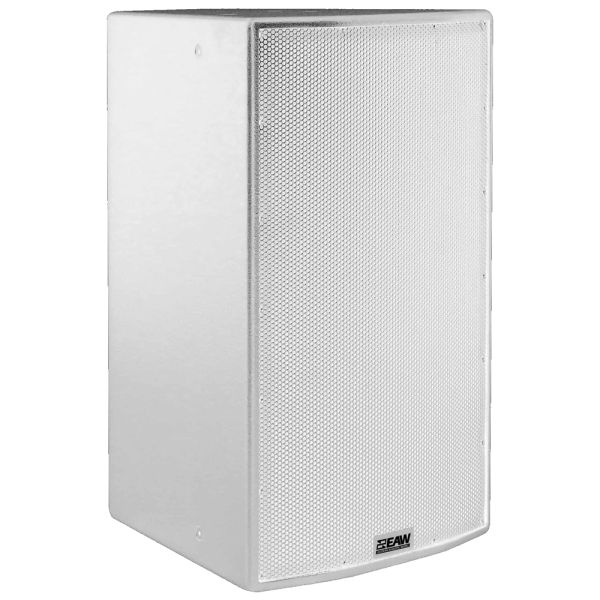

EAW MK5394i-WP 15in 2-Way Full Range Loudspeaker 90° x 45° Weatherproof (White)

The EAW MK5394i-WP is a high-performance 800W passive 2-way portable loudspeaker designed to deliver powerful sound in both small and large venues. Its clean, full-range audio makes it an excellent choice for a variety of applications, including small houses of worship and corporate A/V systems, as well as large venues like stadiums, nightclubs, and themed entertainment complexes. The MK5394i-WP is specifically engineered to provide consistent sound coverage across wide spaces, making it ideal for both primary PA elements and distributed or fill purposes.

At the heart of the MK5394i-WP is a 15-inch low-frequency (LF) driver paired with a 3-inch voice coil compression driver for high-frequency (HF) output. This combination results in clean, high-fidelity sound reproduction across a wide frequency range, with an operating range of 48 Hz to 16 kHz. The speaker is optimized for high output levels, with a calculated maximum SPL of 140 dB, ensuring that it can fill even the largest spaces with clear, impactful sound. The 90° x 45° nominal beamwidth ensures consistent directivity and even coverage, eliminating any hot spots or unevenness typically found in large venues.

The MK5394i-WP is built with versatility in mind, offering both single-amp and bi-amp operating modes. The bi-amp configuration utilizes external signal processing, including a high-pass filter and DSP with 2-way filters, to enhance performance and ensure an optimal frequency response. The advanced beamwidth-matching crossover/filter design minimizes the discontinuities that often affect other two-way loudspeakers, providing smooth, even power response across the entire crossover region. This speaker is engineered to deliver high-output, distortion-free audio.

Designed for professional environments, the MK5394i-WP is built with durability and aesthetic appeal in mind. The enclosure is constructed from exterior-grade Baltic birch plywood, offering both strength and resonance-free performance. Its white finish is wear-resistant, providing a sleek, clean appearance suitable for any environment. The grille is a powder-coated perforated steel, providing excellent protection for the drivers while allowing for optimal acoustic performance. This speaker is IP56-rated, meaning it is fully protected against dust and water, making it suitable for both indoor and outdoor use, even in harsh weather conditions.

The MK5394i-WP is designed to integrate with other systems in the EAW MK5300i series. Its enclosure height matches that of the MK2300i series, making it easy to mix and match different horn patterns or speaker types for a versatile installation. The system is also compatible with SBK Series subwoofers, enabling users to create powerful arrays using EAW's pre-configured accessory flybar. Deployed in a permanent installation or as a portable solution for various events, the MK5394i-WP delivers superior sound and reliability.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 3-inch voice coil compression driver
• 90° x 45° nominal beamwidth for even coverage across a wide area
• Operating range of 48 Hz to 16 kHz, offering powerful bass and clear high-frequency output
• Maximum SPL of 140 dB, with calculated axial output limits of 126 dB (average) and 132 dB (peak)
• Single-amp and bi-amp operating modes with external signal processing options, including high-pass filter and DSP with 2-way filters
• Advanced beamwidth-matching crossover and filter design for consistent power response and minimal distortion
• Constructed with exterior-grade Baltic birch plywood for strength and durability
• Weatherproof IP56 rating, suitable for both indoor and outdoor use
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 16 kHz
• Nominal Beamwidth: 90 x 45 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 97 dB (48 Hz to 16 kHz)
  • LF: 98 dB (48 Hz to 1350 Hz)
  • HF: 107 dB (1200 Hz to 16 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.9 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.7 Ohm @ 170 Hz (Minimum)
  • HF 8 Ohm (Nominal), 7.1 Ohm @ 5500 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 126 dB (Average), 132 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 128 dB (Average), 134 dB (Peak)
• Max SPL: 140 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
