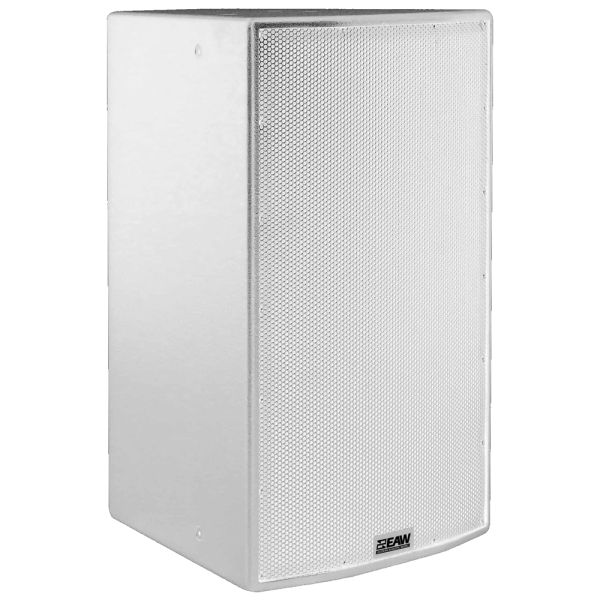

EAW MK5394i 15in 2-Way Full Range Loudspeaker 90° x 45° (White)

The EAW MK5394i is an 800W, 15-inch passive 2-way loudspeaker, designed for high output and exceptional sound clarity. Finished in a sleek white, it is perfect for a range of applications, from small venues like houses of worship, corporate A/V systems, auditoriums, and hotel ballrooms to large venues such as stadiums, arenas, and nightclubs. The MK5394i also excels as a distributed or fill speaker in large entertainment spaces and theaters, providing consistent and clear audio coverage across wide areas. With an IP56 rating, this loudspeaker is weatherproof, making it suitable for both indoor and outdoor use, delivering reliability in challenging environments.

The MK5394i combines a high-performance 15-inch low-frequency (LF) driver and a 1.4-inch exit, 3-inch voice coil compression driver for high-frequency (HF) reproduction. The combination of these drivers provides deep bass, crisp mids, and clear highs, while the horn-loaded design ensures efficient sound projection. The 90° x 45° nominal beamwidth of this loudspeaker ensures even coverage, making it ideal for venues where uniform sound distribution is essential. The result is a high-fidelity output with exceptional clarity at higher volumes, making the MK5394i a reliable choice for both speech and music reinforcement.

With a wide frequency range of 48 Hz to 16 kHz, the MK5394i ensures full-range performance that can handle a variety of content types. Its impressive sensitivity of 97 dB (LF/HF) allows for efficient sound reproduction, while its calculated axial output limits of 126 dB (average) and 132 dB (peak) ensure that this speaker can handle high power levels without distortion. Its maximum SPL of 140 dB makes it capable of providing ample sound pressure for large crowds and environments requiring high-volume output. The speaker's high-frequency section produces a peak output of 134 dB, ensuring clear and articulate treble, while the low frequencies maintain power and definition.

The MK5394i supports both single-amp and bi-amp configurations, offering flexible setup options to meet the specific needs of your installation. The speaker also benefits from external signal processing with a high-pass filter and DSP with 2-way filters. This feature ensures optimal performance by managing the frequency response and maintaining consistent power across the crossover region. EAW's beamwidth-matching crossover and filter design eliminate frequency discontinuities, ensuring a smooth, even power response for seamless integration into any sound system.

Constructed with exterior-grade Baltic birch plywood, the MK5394i offers durability and excellent acoustic performance. Its exterior is finished with a wear-resistant textured white paint, giving it a clean, professional look while providing protection against scratches and environmental wear. The powder-coated perforated steel grille provides additional protection to the internal components while allowing for optimal acoustic transparency. The MK5394i offers reliable performance and longevity, backed by EAW's six-year warranty.

With dimensions of 30 x 18.71 x 19.73 inches and weighing 77 lbs, this speaker is designed to be stable and easy to install, making it a versatile solution for a wide range of professional audio applications. The MK5394i delivers impressive sound quality and high output in a sleek, professional package.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 3-inch voice coil compression driver
• 90° x 45° nominal beamwidth for even, wide coverage across large spaces
• Operating range of 48 Hz to 16 kHz for full-range audio reproduction
• Peak SPL of 132 dB and max SPL of 140 dB, delivering high output for demanding environments
• Calculated axial output limit of 126 dB (average) for clear, distortion-free performance
• Axial sensitivity of 97 dB (LF/HF) for efficient sound reproduction
• Single-amp and bi-amp operating modes with external signal processing options
• High-pass filter and DSP with 2-way filters for optimized audio processing
• Durable, exterior-grade Baltic birch plywood construction with a sleek, white, wear-resistant finish
• IP56 weatherproof rating for reliable performance in both indoor and outdoor environments
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 16 kHz
• Nominal Beamwidth: 90 x 45 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 97 dB (48 Hz to 16 kHz)
  • LF: 98 dB (48 Hz to 1350 Hz)
  • HF: 107 dB (1200 Hz to 16 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.9 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.7 Ohm @ 170 Hz (Minimum)
  • HF 8 Ohm (Nominal), 7.1 Ohm @ 5500 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 126 dB (Average), 132 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 128 dB (Average), 134 dB (Peak)
• Max SPL: 140 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
