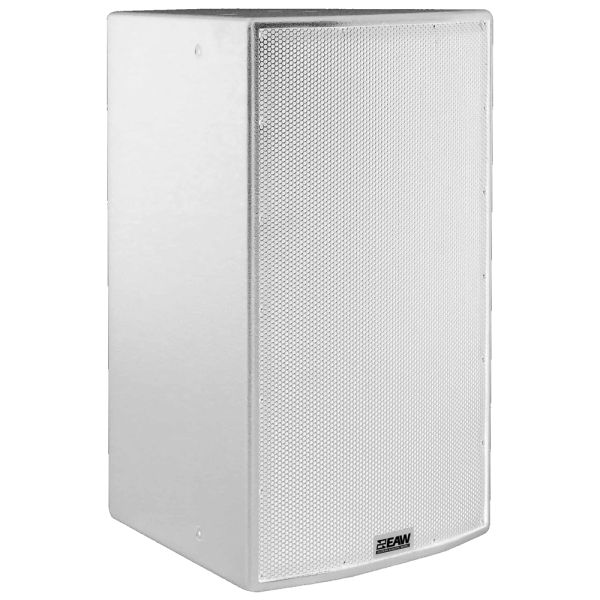

EAW MK5366i-WP 15in 2-Way Full Range Loudspeaker 60° x 60° Weatherproof (White)

The EAW MK5366i-WP is a high-performance, 800W, 15-inch passive 2-way loudspeaker designed for demanding professional audio applications. Finished in an elegant white, this speaker offers exceptional sound quality and durability, making it ideal for use in a variety of settings including small houses of worship, auditoriums, corporate A/V systems, hotel ballrooms, and meeting rooms. It also excels in larger venues, such as arenas, stadiums, nightclubs, and themed-entertainment complexes, providing full-range sound for distributed or fill purposes. With its IP56 rating, this model is weatherproof and offers protection against dust and water, making it suitable for both indoor and outdoor environments.

The MK5366i-WP features a powerful 15-inch low-frequency (LF) driver, paired with a 1.4-inch exit, 3-inch voice coil compression driver for the high frequencies. This design ensures superior sonic performance, delivering clear highs and deep, punchy lows. The 60° x 60° beamwidth ensures broad, even sound coverage across large spaces, providing consistent sound quality throughout the entire venue. The speaker's horn-loaded design helps maintain directivity across the high-frequency passband, making it ideal for wide area coverage without sacrificing clarity. Used for speech or music, the MK5366i-WP guarantees clean, high-fidelity output at significantly higher levels than would be expected from a loudspeaker of this size and price.

The operating range of the MK5366i-WP spans from 48 Hz to 17 kHz, ensuring a full-frequency response that can handle a wide variety of audio content. The speaker is capable of producing a peak output of 133 dB, with an impressive maximum SPL of 139 dB, making it suitable for even the most demanding live sound applications. With an axial sensitivity of 98 dB (LF/HF), this speaker efficiently converts power into sound, providing high output with minimal distortion. Its calculated axial output limit of 127 dB (average) allows it to handle extended levels of sound pressure without compromising performance.

For flexibility in system setup, the MK5366i-WP supports both single-amp and bi-amp operating modes. This versatility, combined with external signal processing options such as high-pass filtering and DSP with 2-way filters, allows users to optimize the speaker's performance in various environments. The beamwidth-matching crossover and filter design further ensure that the MK5366i-WP delivers a smooth, consistent power response, eliminating frequency discontinuities that can be present in other two-way loudspeakers. This design makes it an excellent choice for applications requiring precise sound distribution and high output.

The speaker is built with durability and longevity in mind, featuring an enclosure made from exterior-grade Baltic birch plywood, which ensures structural integrity and a balanced acoustic performance. The enclosure is finished with wear-resistant textured white paint, offering protection against the elements while maintaining a professional appearance in any setting. A powder-coated, perforated steel grille provides additional protection for the internal components while allowing for optimal acoustic performance. The MK5366i-WP is built to withstand the rigors of both mobile and permanent installations, providing long-lasting performance in demanding environments.

Weighing 77 lbs and with dimensions of 30 x 18.71 x 19.73 inches, the MK5366i-WP has a solid, stable design that makes it easy to handle and install, while its relatively compact size ensures that it fits well in a variety of spaces. Used on its own or in conjunction with other EAW MK5300i Series speakers and SBK Series subwoofers, the MK5366i-WP delivers exceptional sound quality and is backed by a six-year warranty for peace of mind.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 1.4-inch exit, 3-inch voice coil HF compression driver
• 60° x 60° nominal beamwidth for even and wide sound coverage across large areas
• Operating range from 48 Hz to 17 kHz for full-range audio performance
• Peak SPL of 133 dB and max SPL of 139 dB, providing high output for demanding applications
• Axial sensitivity of 98 dB (LF/HF) for efficient sound reproduction with minimal distortion
• Flexible operating modes: Single-amp and bi-amp with external signal processing options
• High-pass filter and DSP with 2-way filters for enhanced audio processing
• Exterior-grade Baltic birch plywood construction with powder-coated steel grille for durability
• IP56 weatherproof rating, ensuring protection against dust and water for outdoor use
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 17 kHz
• Nominal Beamwidth: 60 x 60 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 17 kHz)
  • LF: 98 dB (48 Hz to 1400 Hz)
  • HF: 105 dB (1200 Hz to 17 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.6 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.9 Ohm @ 240 Hz (Minimum)
  • HF 8 Ohm (Nominal), 6.3 Ohm @ 5000 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 127 dB (Average), 133 dB (Peak)
• Max SPL: 139 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
