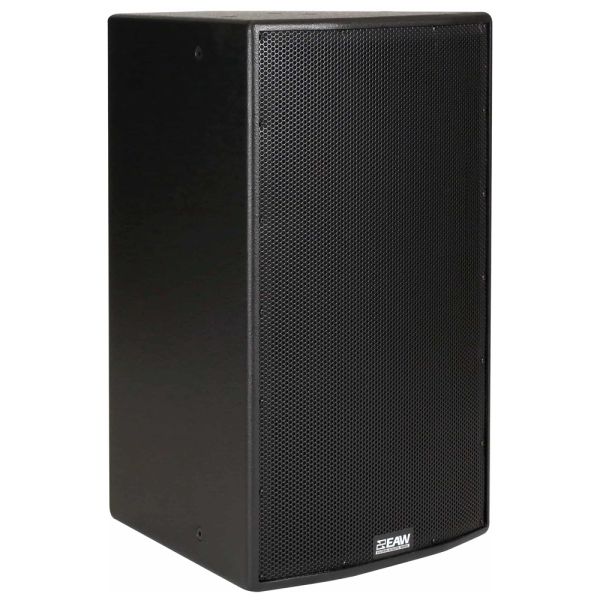

EAW MK5366i-WP 15in 2-Way Full Range Loudspeaker 60° x 60° Weatherproof (Black)

The EAW MK5366i-WP is an 800W, 15-inch passive 2-way loudspeaker designed to deliver exceptional performance and versatility for a wide range of professional audio applications. Finished in a sleek black, the MK5366i-WP is ideal for smaller venues like houses of worship, auditoriums, corporate A/V systems, and hotel ballrooms, while also providing reliable distributed or fill sound for larger venues such as stadiums, nightclubs, and themed-entertainment venues. With its rugged, IP56-rated weather-resistant design, this loudspeaker is perfect for both indoor and outdoor environments, offering clear, high-fidelity output and sound reinforcement wherever needed.

At the heart of the MK5366i-WP is a high-performance 15-inch low-frequency (LF) driver with a 3-inch voice coil, ensuring powerful and deep bass reproduction. Paired with a 1.4-inch exit, 3-inch voice coil compression driver for the high frequencies, this system is engineered to deliver crystal-clear highs with minimal distortion. The horn-loading design, combined with a 60° x 60° nominal beamwidth, guarantees even sound coverage across large areas, making it ideal for both front-of-house applications and distributed sound systems. The result is a speaker that provides consistent, high-fidelity audio across wide and long distances, ensuring superior coverage and sound clarity.

The MK5366i-WP offers an operating range from 48 Hz to 17 kHz, providing a full-frequency response for a wide range of sound sources. With an axial sensitivity of 98 dB (LF/HF), it produces high output levels with great efficiency. Capable of reaching a peak output of 133 dB and a maximum SPL of 139 dB, this speaker is more than capable of handling high-volume environments without compromising sound quality. Used for high-energy performances or speech reinforcement, the MK5366i-WP excels in both clarity and power, even in large venues.

With the flexibility to operate in single-amp or bi-amp modes, the MK5366i-WP can be tailored to different system setups. The inclusion of an external signal processing option with high-pass filtering and DSP with 2-way filters ensures optimal sound performance. EAW's beamwidth-matching crossover and filter design provide a power response, eliminating frequency inconsistencies that are common in other loudspeakers. This thoughtful design makes the MK5366i-WP easy to integrate into a variety of installations while delivering superior sound quality across the entire frequency spectrum.

The MK5366i-WP features durable construction, utilizing exterior-grade Baltic birch plywood for the enclosure, which provides both strength and lightness for easy handling. The powder-coated perforated steel grille protects the speaker's internal components from damage while maintaining acoustic performance. Designed for longevity and resilience, the speaker's exterior finish is a wear-resistant, textured black paint, perfect for harsh environments and outdoor use. Additionally, the IP56 rating ensures the loudspeaker is dustproof and resistant to water, making it suitable for both indoor and outdoor installations in all weather conditions.

Weighing 77 lbs and with dimensions of 30 x 18.71 x 19.73 inches, the MK5366i-WP provides a solid, stable footprint that makes it both portable and versatile for permanent or mobile setups. Used alone or as part of a larger audio system with other MK5300i Series speakers or SBK Series subwoofers, this loudspeaker guarantees outstanding audio performance. Backed by a six-year warranty, the MK5366i-WP is a reliable, high-performance solution for any professional sound reinforcement need.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 1.4-inch exit, 3-inch voice coil HF compression driver
• 60° x 60° nominal beamwidth for wide and even sound coverage across large areas
• Operating range from 48 Hz to 17 kHz for full-range audio performance
• Maximum SPL of 139 dB, with a peak output of 133 dB for high-power sound delivery
• Axial sensitivity of 98 dB (LF/HF) for efficient sound reproduction
• Flexible operating modes: Single-amp and bi-amp with external signal processing options
• High-pass filter and DSP with 2-way filters for enhanced audio processing
• Exterior-grade Baltic birch plywood construction with powder-coated steel grille for durability
• IP56 weatherproof rating for reliable outdoor use and protection against dust and water
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 17 kHz
• Nominal Beamwidth: 60 x 60 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 17 kHz)
  • LF: 98 dB (48 Hz to 1400 Hz)
  • HF: 105 dB (1200 Hz to 17 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.6 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.9 Ohm @ 240 Hz (Minimum)
  • HF 8 Ohm (Nominal), 6.3 Ohm @ 5000 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 127 dB (Average), 133 dB (Peak)
• Max SPL: 139 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
