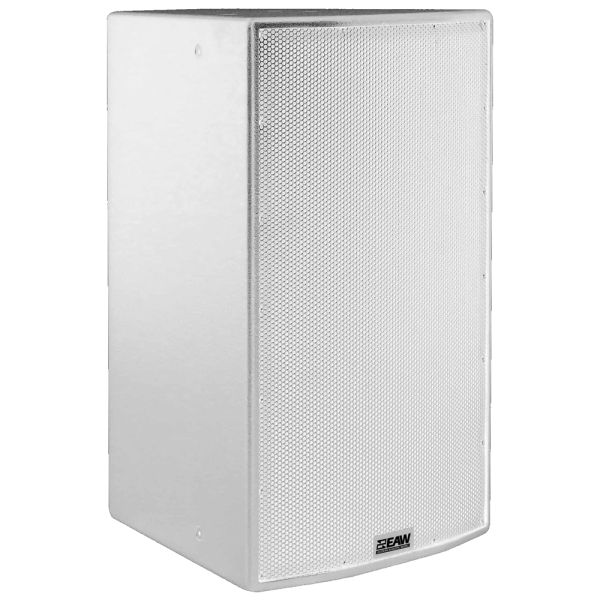

EAW MK5364i-WP 15in 2-Way Full Range Loudspeaker 60° x 45° Weatherproof (White)

The EAW MK5364i-WP is an 800W, 15-inch passive 2-way portable loudspeaker designed for high-performance audio applications in both small and large venues. Used as a main PA in smaller spaces such as houses of worship, corporate settings, and theaters, or for distributed or fill purposes in larger venues such as stadiums, nightclubs, or themed-entertainment complexes, this loudspeaker delivers clear, impactful sound. With a sleek white finish and rugged construction, the MK5364i-WP is built to endure and perform in demanding environments while offering superb sound quality and versatile deployment options.

The MK5364i-WP features a 15-inch low-frequency (LF) driver with a 3-inch voice coil that provides deep, powerful bass, while the high-frequency (HF) section consists of a 1.4-inch exit, 3-inch voice coil compression driver. The combination of these components ensures full-range performance with detailed highs and clean, articulate lows. The speaker employs a carefully designed horn with a 60° x 45° nominal beamwidth, delivering even sound coverage and minimizing unwanted reflections. This design ensures consistent directivity across the high-frequency passband, making it ideal for both indoor and outdoor use where clear sound is essential.

The MK5364i-WP operates within a frequency range of 48 Hz to 17 kHz, producing a frequency response that ensures all aspects of a performance are heard with clarity. Its high sensitivity of 98 dB (LF/HF) guarantees that the speaker produces clean sound at higher volumes without distortion. With a calculated peak output of 134 dB and a maximum SPL of 140 dB, the MK5364i-WP is capable of delivering incredibly high output levels, making it suitable for large events and concerts. The speaker can be configured in single-amp or bi-amp modes, allowing for enhanced flexibility and optimized sound quality when paired with an external processor. EAW's beamwidth-matching crossover/filter design ensures a smooth transition between the LF and HF drivers, offering balanced sound and preventing frequency discontinuities.

Durability is at the forefront of the MK5364i-WP's design. The speaker is housed in an exterior-grade Baltic birch plywood enclosure that is both strong and lightweight. The powder-coated perforated steel grille provides protection to the drivers while maintaining optimal acoustical performance. The weather-resistant IP56 rating ensures that the MK5364i-WP can withstand outdoor conditions, making it suitable for both indoor and outdoor applications. The white finish is not only aesthetically pleasing but also resistant to wear, ensuring that the speaker maintains its appearance over time, even in challenging environments.

Measuring 30 x 18.71 x 19.73 inches and weighing 77 lbs, the MK5364i-WP offers both portability and durability. The speaker is designed for ease of installation and use in a variety of setups, including as part of larger PA systems. Its compatibility with other EAW products, such as the MK2300i Series and SBK Series subwoofers, allows for integration and the creation of cohesive, high-output sound systems. Additionally, the MK5364i-WP comes with a six-year warranty, providing peace of mind and long-term reliability for users.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 1.4-inch exit, 3-inch voice coil HF compression driver
• 60° x 45° nominal beamwidth for optimal sound coverage and high directivity
• Operating range of 48 Hz to 17 kHz, ensuring full-range audio performance
• Maximum SPL of 140 dB and peak output of 134 dB for powerful, clear sound in large venues
• Axial sensitivity of 98 dB (LF/HF) for excellent efficiency and sound clarity
• Flexible operating modes: Single-amp and bi-amp with external signal processing
• High-pass filter and DSP with 2-way filters for enhanced audio processing
• Exterior-grade Baltic birch plywood construction for durability and strength
• IP56 weatherproof rating for reliable outdoor use and protection against dust and water
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 17 kHz
• Nominal Beamwidth: 60 x 45 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 17 kHz)
  • LF: 98 dB (48 Hz to 1350 Hz)
  • HF: 106 dB (1150 Hz to 17 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 7.1 Ohm @ 130 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.6 Ohm @ 160 Hz (Minimum)
  • HF 8 Ohm (Nominal), 6.1 Ohm @ 5000 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 128 dB (Average), 134 dB (Peak)
• Max SPL: 140 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
