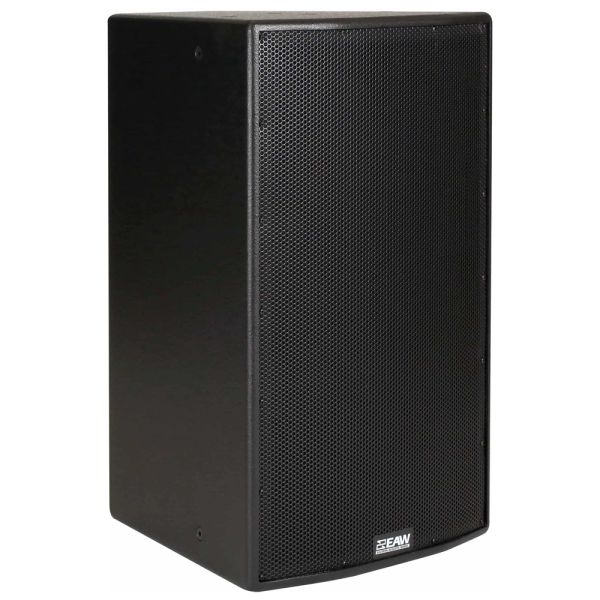

EAW MK5364i-WP 15in 2-Way Full Range Loudspeaker 60° x 45° Weatherproof (Black)

The EAW MK5364i-WP is an 800W, 15-inch passive 2-way portable loudspeaker designed for high-output applications across a variety of settings, including smaller venues like houses of worship, auditoriums, corporate A/V systems, hotel ballrooms, and meeting rooms. It is also well-suited for larger venues such as stadiums, arenas, nightclubs, and themed entertainment complexes, where it excels as a distributed or fill speaker. The MK5364i-WP offers outstanding sonic performance, combining deep bass with crisp highs to ensure clear and powerful audio reproduction in any environment.

Engineered by EAW for maximum sound quality, the MK5364i-WP features a 15-inch low-frequency (LF) driver with a 3-inch voice coil, delivering strong and deep bass output that perfectly complements the high-frequency components. The high-frequency (HF) section is powered by a 1.4-inch exit, 3-inch voice coil compression driver, which is mounted in a horn that ensures consistent and precise sound dispersion. This horn delivers a 60° x 45° nominal beamwidth, providing optimal coverage while maintaining high directivity for clear and focused sound in the desired listening areas. With its robust design and reliable components, this loudspeaker ensures a wide and consistent coverage range across its operating spectrum.

The MK5364i-WP operates across a broad frequency range of 48 Hz to 17 kHz, producing clean and full-range sound with a sensitivity of 98 dB across the LF and HF components. The speaker's impressive maximum SPL of 140 dB and calculated peak output of 134 dB make it suitable for both large-scale events and more intimate gatherings, offering exceptional sound pressure levels without distortion. The speaker can be used in single-amp or bi-amp configurations, with the bi-amp mode offering greater flexibility and optimal performance through external signal processing. EAW's beamwidth-matching crossover/filter design ensures even power response across the entire frequency range, providing a seamless blend between the LF and HF drivers and eliminating the discontinuities found in other two-way loudspeakers.

Built for reliability and durability, the MK5364i-WP is housed in an exterior-grade Baltic birch plywood enclosure, providing strength and resistance to wear and tear. The wear-resistant textured black paint finish not only adds to its aesthetic appeal but also protects the speaker from scratches and environmental damage. The powder-coated perforated steel grille offers additional protection to the drivers while ensuring excellent acoustical performance. With IP56 weatherproofing, this loudspeaker is also designed for use in outdoor environments, where it can withstand exposure to dust and water, making it a versatile solution for a range of applications.

With dimensions of 30 x 18.71 x 19.73 inches and a weight of 77 lbs, the MK5364i-WP offers a solid, rugged design that is still portable enough for easy setup and transport. It is ideal for installation in both permanent and temporary setups, and its ability to integrate with other EAW loudspeakers, such as the MK2300i and SBK Series subwoofers, makes it a great choice for large-scale audio systems. The MK5364i-WP also comes with a six-year warranty, providing peace of mind and long-term reliability for users.

Features

• 800W passive 2-way loudspeaker with 15-inch LF driver and 1.4-inch exit, 3-inch voice coil HF compression driver
• 60° x 45° nominal beamwidth for even sound coverage with high directivity
• Operating range from 48 Hz to 17 kHz, delivering full-range audio
• Maximum SPL of 140 dB and calculated peak output of 134 dB for powerful sound reproduction
• Axial sensitivity of 98 dB (LF/HF) for clear and accurate sound
• Single-amp and bi-amp operating modes for flexible setup
• External signal processing with high-pass filters and DSP with 2-way filters for enhanced performance
• Exterior-grade Baltic birch plywood enclosure with wear-resistant textured black finish
• Powder-coated perforated steel grille for driver protection and acoustical transparency
• IP56-rated weatherproof construction suitable for outdoor use
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 17 kHz
• Nominal Beamwidth: 60 x 45 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 17 kHz)
  • LF: 98 dB (48 Hz to 1350 Hz)
  • HF: 106 dB (1150 Hz to 17 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 7.1 Ohm @ 130 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.6 Ohm @ 160 Hz (Minimum)
  • HF 8 Ohm (Nominal), 6.1 Ohm @ 5000 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 128 dB (Average), 134 dB (Peak)
• Max SPL: 140 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
