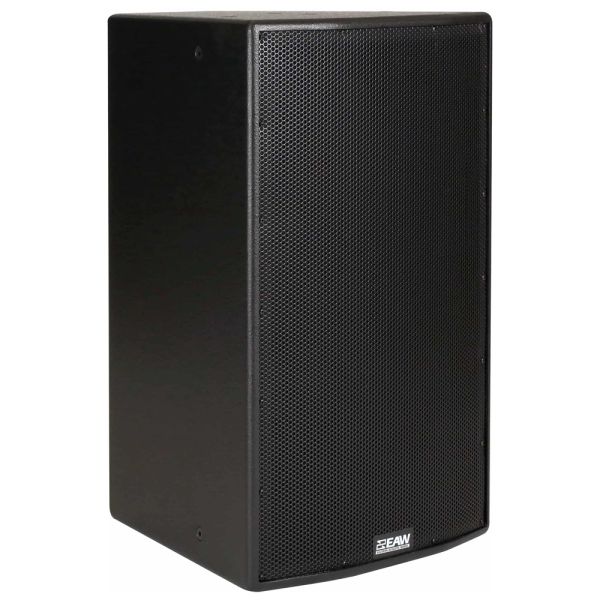

EAW MK5364i 15in 2-Way Full Range Loudspeaker 60° x 45° (Black)

The EAW MK5364i is an 800W passive 2-way portable loudspeaker designed for high-output performance in smaller venues like houses of worship, auditoriums, corporate A/V systems, hotel ballrooms, and meeting rooms. It is also well-suited for larger venues including stadiums, arenas, nightclubs, and themed entertainment complexes, where it can be used for distributed or fill purposes. The MK5364i delivers superior sound quality with a high-efficiency design, making it an excellent choice for both temporary and permanent installations where clear, powerful sound is needed across a broad area.

This loudspeaker is built around a robust 15-inch low-frequency (LF) driver with a 3-inch voice coil, delivering powerful bass response. The compression driver, featuring a 1.4-inch exit and 3-inch voice coil, works seamlessly with a horn-loaded design to produce crisp high frequencies. The horn's 60° x 45° coverage pattern ensures that sound is evenly distributed across the listening area, creating a well-balanced listening experience throughout the venue. The MK5364i is designed to deliver consistent, high-fidelity output at high levels, with a maximum SPL of 140 dB and an average output of 127 dB, making it capable of handling demanding sound reinforcement applications.

Performance-wise, the MK5364i covers a frequency range of 48 Hz to 17 kHz, ensuring both deep lows and clear highs. Its 98 dB sensitivity (LF/HF) ensures it delivers powerful sound output with minimal distortion. The speaker's input impedance is 8 Ohms (nominal) for both LF and HF components, providing optimal compatibility with a range of amplifier setups. The system's beamwidth-matching crossover/filter design ensures smooth power response throughout the crossover region, helping to eliminate any potential discontinuities and ensuring a coherent sound experience. The MK5364i also offers flexible operating modes: single-amp (LF/HF) and bi-amp (LF, HF), with external signal processing options for fine-tuned performance.

The MK5364i is housed in a rugged, exterior-grade Baltic birch plywood enclosure with a wear-resistant textured black paint finish, ensuring durability and a professional appearance. The powder-coated perforated steel grille provides additional protection for the internal components while maintaining optimal acoustical performance. Designed for portability and ease of installation, this loudspeaker is ideal for both fixed installations and mobile setups. With its IP56-rated weatherproof construction, the MK5364i is built to withstand the elements, making it suitable for outdoor installations in addition to indoor use.

At 77 lbs and with dimensions of 30 x 18.71 x 19.73 inches, the MK5364i is a robust solution for high-output sound reinforcement. It is also compatible with EAW's preconfigured accessory flybar for easy rigging and installation in large arrays, allowing it to be seamlessly integrated into a wide range of audio systems. The speaker's performance, flexibility, and rugged design make it an excellent choice for professional sound applications, offering clear, powerful audio in a variety of environments.

Features

• 800W passive 2-way loudspeaker with 15-inch LF driver and 1.4-inch exit, 3-inch voice coil HF compression driver
• Operating range of 48 Hz to 17 kHz for full-range sound reproduction
• 60° x 45° nominal beamwidth for even sound distribution across wide areas
• Max SPL of 140 dB with calculated peak output of 133 dB for powerful sound delivery
• Axial sensitivity of 98 dB (LF/HF) for clear, high-output performance
• Single-amp and bi-amp operating modes for flexible system setup
• Beamwidth-matching crossover/filter design for smooth, even power response
• Rugged, weather-resistant IP56-rated enclosure made of exterior-grade Baltic birch plywood
• Wear-resistant textured black paint finish with powder-coated perforated steel grille
• Compatible with EAW's preconfigured accessory flybar for easy rigging and installation
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 17 kHz
• Nominal Beamwidth: 60 x 45 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 17 kHz)
  • LF: 98 dB (48 Hz to 1350 Hz)
  • HF: 106 dB (1150 Hz to 17 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 7.1 Ohm @ 130 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.6 Ohm @ 160 Hz (Minimum)
  • HF 8 Ohm (Nominal), 6.1 Ohm @ 5000 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 128 dB (Average), 134 dB (Peak)
• Max SPL: 140 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
