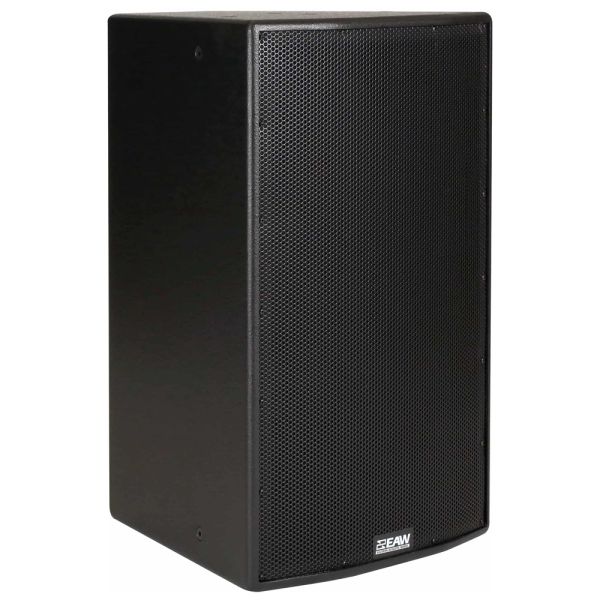

EAW MK5326i-WP 15in 2-Way Full Range Loudspeaker 120° x 60° Weatherproof (Black)

The EAW MK5326i-WP is an 800W, 15-inch passive 2-way portable loudspeaker designed for high-output performance in a wide range of environments. This model is part of the MK5300i series, engineered to deliver superior sound quality and high efficiency for both smaller and larger venues, including houses of worship, auditoriums, corporate AV systems, hotel ballrooms, arenas, and nightclubs. The MK5326i-WP is particularly suitable for both primary PA applications and as a distributed or fill speaker in larger installations, offering versatility and exceptional clarity across its broad frequency range.

At the core of the MK5326i-WP is a 15-inch low-frequency (LF) driver with a 3-inch voice coil, delivering impressive bass response and output. Paired with a high-frequency (HF) compression driver featuring a 1.4-inch exit and a 3-inch voice coil, the speaker provides an excellent balance between the low-end power and high-end clarity. The horn-loaded design ensures that the system can produce high output levels while maintaining clarity, especially in environments where sound must reach long distances with even coverage.

The MK5326i-WP offers a nominal beamwidth of 120° x 60°, ensuring broad, even coverage across both horizontal and vertical planes. The system is capable of delivering a maximum SPL of 139 dB, with a calculated axial output limit of 133 dB peak. This makes the MK5326i-WP perfect for large venues or outdoor events where high sound pressure levels are required. Its frequency range of 48 Hz to 17 kHz guarantees that both the low and high frequencies are reproduced with full fidelity, providing a clean and detailed sound throughout the operating range.

Equipped with a beamwidth-matching crossover/filter design, the MK5326i-WP offers even power distribution across the frequency spectrum, ensuring smooth transitions between the LF and HF drivers. This feature eliminates the common issues with discontinuities that can affect the performance of other loudspeakers, resulting in consistent sound quality. The MK5326i-WP also provides users with the option to choose between single-amp and bi-amp operating modes. In bi-amp mode, the LF and HF components are powered separately, allowing for greater efficiency and improved performance when used with external processors.

The enclosure of the MK5326i-WP is made from exterior-grade Baltic birch plywood, providing both durability and acoustic performance. It is finished with wear-resistant textured black paint, making it suitable for use in both portable and permanent installations. The grille is made of powder-coated perforated steel, ensuring protection for the drivers while allowing optimal sound transmission. The speaker's rugged design and IP56 rating make it weather-resistant, capable of withstanding harsh conditions, making it ideal for outdoor installations or venues with high humidity.

For ease of installation, the MK5326i-WP is designed to integrate with EAW's accessory flybar system, making it easy to rig and suspend in arrays for large-scale events or installations. Its compact yet powerful design, with dimensions of 30 x 18.71 x 19.73 inches and a weight of 77 lbs, allows for efficient transport and flexible placement, while still delivering high-fidelity sound performance at significant volumes.

Features

• 800W passive 2-way loudspeaker with a 15-inch LF driver and 1.4-inch exit, 3-inch voice coil HF compression driver
• Operating range from 48 Hz to 17 kHz for full-range sound reproduction
• 120° x 60° nominal beamwidth for even coverage across wide areas
• Max SPL of 139 dB and calculated peak output of 133 dB for high-impact performance
• Axial sensitivity of 98 dB (whole space SPL) for clear and powerful sound
• Single-amp and bi-amp modes for flexibility in system setup
• Beamwidth-matching crossover/filter design for even power distribution and smooth frequency response
• Weather-resistant, IP56-rated enclosure made from exterior-grade Baltic birch plywood with a wear-resistant textured black paint finish
• Powder-coated perforated steel grille for durability and protection
• Compatible with EAW's preconfigured accessory flybar for easy rigging and suspension
• Dimensions: 30 x 18.71 x 19.73 inches, Weight: 77 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 15 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 48 Hz to 17 kHz
• Nominal Beamwidth: 120 x 60 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 98 dB (48 Hz to 17 kHz)
  • LF: 98 dB (48 Hz to 1400 Hz)
  • HF: 105 dB (1200 Hz to 17 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 6.9 Ohm @ 150 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.8 Ohm @ 240 Hz (Minimum)
  • HF 8 Ohm (Nominal), 7.7 Ohm @ 5000 Hz (Minimum)
• High Pass Filter: High Pass =>50 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 80V (800W @ 8 Ohm)
  • LF: 80V (800W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 127 dB (Average), 133 dB (Peak)
  • LF: 127 dB (Average), 133 dB (Peak)
  • HF: 126 dB (Average), 132 dB (Peak)
• Max SPL: 139 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 18.71 x 19.73 inches
• Weight: 77 lbs
