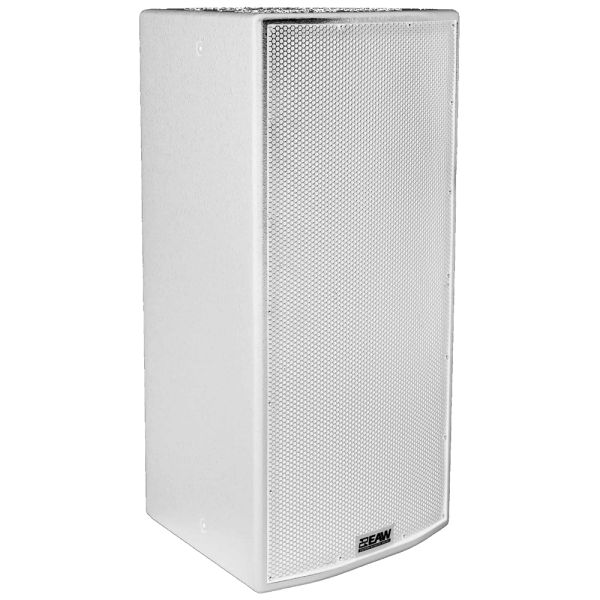

EAW MK2396i-WP 12in 2-Way Full Range Loudspeaker 90° x 60° Weatherproof (White)

The EAW MK2396i-WP is a 600W 12-inch passive 2-way loudspeaker with IP56-rated weather protection, designed for both indoor and outdoor applications. Featuring a clean white finish, it is ideal for use in various venues, including small houses of worship, auditoriums, corporate A/V systems, hotel ballrooms, meeting rooms, as well as for distributed or fill purposes in larger venues such as arenas, stadiums, and nightclubs. Engineered for high output and precision, the MK2396i-WP provides clear, high-fidelity sound with wide coverage and consistent performance across its operating range.

The MK2396i-WP features a 12-inch low-frequency (LF) driver with a 3-inch voice coil for deep, powerful bass response, while the high-frequency (HF) section is equipped with a 1.4-inch exit, 3-inch voice coil compression driver, delivering sharp, clear highs. These drivers work together to provide full-range audio reproduction with a frequency range of 65 Hz to 20 kHz. The loudspeaker uses a 90° x 60° nominal beamwidth horn design, ensuring wide and even sound coverage throughout the listening area. This horn also helps maintain directivity, preventing unwanted reflections and ensuring clarity even at higher volumes.

With a calculated peak SPL of 138 dB and axial output limits of 122 dB (average) and 128 dB (peak) for LF/HF, the MK2396i-WP produces powerful and distortion-free sound, even at high levels. The speaker's advanced beamwidth-matching crossover and filter design eliminates common issues found in many two-way loudspeakers, such as phase and frequency inconsistencies, ensuring smooth and accurate sound across the entire frequency range.

For greater flexibility, the MK2396i-WP supports both single-amp and bi-amp operating modes, giving users the ability to tailor their setup for different applications. The loudspeaker also features a high-pass filter with a 60 Hz cutoff and DSP with 2-way filters, optimizing the low-end response while maintaining high-fidelity output across the midrange and high frequencies.

Built to withstand the elements, the MK2396i-WP features an IP56 rating, making it resistant to dust and water, allowing it to be used in both indoor and outdoor environments. The exterior-grade Baltic birch plywood enclosure ensures durability and a resonant-free design, while the wear-resistant textured white paint finish adds an extra layer of protection, making it suitable for a variety of challenging environments. The powder-coated perforated steel grille offers protection for the internal components while maintaining optimal sound transparency.

With its versatile design, the MK2396i-WP is perfect for both portable and permanent installations. This loudspeaker offers powerful, high-quality sound for a wide range of professional audio applications.

Features

• 600W passive 2-way loudspeaker with IP56-rated weather protection for outdoor and indoor use
• 12-inch LF driver with 3-inch voice coil for deep bass and 1.4-inch exit, 3-inch voice coil HF compression driver for clear highs
• 90° x 60° nominal beamwidth horn design for wide, consistent coverage
• Operating range of 65 Hz to 20 kHz for full-range sound reproduction
• Max SPL of 138 dB with calculated axial output limits of 122 dB (average) and 128 dB (peak) for LF/HF
• Beamwidth-matching crossover and filter design for integration between LF and HF drivers
• Single-amp and bi-amp operating modes for flexible configuration
• High-pass filter with 60 Hz cutoff and DSP with 2-way filters for optimized performance
• Exterior-grade Baltic birch plywood construction with wear-resistant textured white paint finish
• Powder-coated perforated steel grille for maximum sound transparency and protection
• Dimensions: 30 x 15.54 x 14.75 inches, Weight: 60 lbs
• Shipping weight: 66 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 12 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 65 Hz to 20 kHz
• Nominal Beamwidth: 90 x 60 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 94 dB (65 Hz to 20 kHz)
  • LF: 97 dB (65 Hz to 1400 Hz)
  • HF: 104 dB (1200 Hz to 20 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 7.3 Ohm @ 180 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.9 Ohm @ 290 Hz (Minimum)
  • HF 8 Ohm (Nominal), 7.3 Ohm @ 6800 Hz (Minimum)
• High Pass Filter: High Pass =>60 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 69.3V (600W @ 8 Ohm)
  • LF: 69.3V (600W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 122 dB (Average), 128 dB (Peak)
  • LF: 125 dB (Average), 131 dB (Peak)
  • HF: 126 dB (Average), 132 dB (Peak)
• Max SPL: 138 dB
