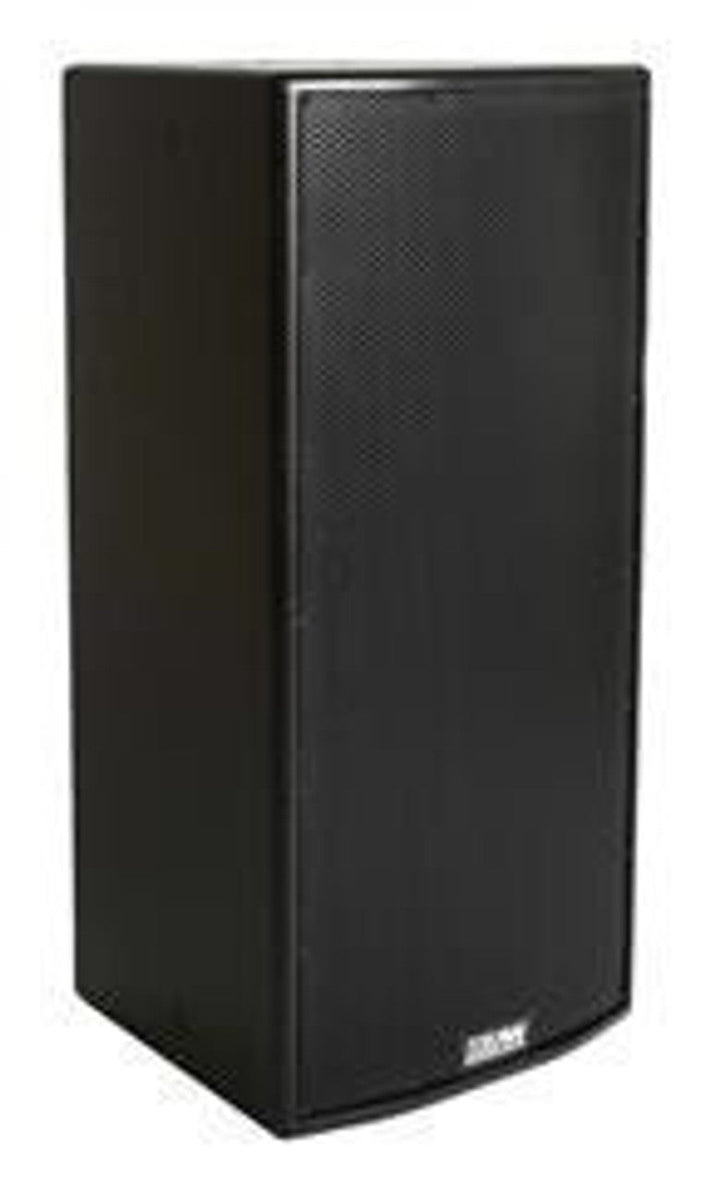

EAW MK2394i-WP 12in 2-Way Full Range Loudspeaker 90° x 45° Weatherproof (Black)

The EAW MK2394i-WP is a high-performance 600W passive 2-way loudspeaker designed for a variety of venues, ranging from smaller spaces such as houses of worship, auditoriums, corporate A/V systems, hotel ballrooms, and meeting rooms, to larger venues like stadiums, arenas, nightclubs, and themed entertainment complexes. This loudspeaker excels both as a primary PA system and as a distributed fill speaker, offering versatility and exceptional sound quality. With its sleek finish and IP56 rating, the MK2394i-WP is perfect for environments requiring both aesthetic appeal and reliable performance under challenging conditions, making it suitable for both indoor and outdoor installations.

At the heart of the MK2394i-WP is a 12-inch low-frequency (LF) driver with a 3-inch voice coil and a 1.4-inch exit, 3-inch voice coil high-frequency (HF) compression driver. The HF driver is horn-loaded, ensuring high output with excellent clarity across the frequency range. The 90° x 45° beamwidth horn design provides wide, consistent coverage throughout the listening area, ensuring that the sound is evenly distributed across the venue. This directivity and consistent coverage allow the MK2394i-WP to deliver high-fidelity sound even in larger venues, making it ideal for both speech and music applications. The horn design has been optimized to achieve smooth performance across the high-frequency passband, maintaining clear and intelligible sound.

The MK2394i-WP utilizes advanced technology in its crossover and filter design, which includes EAW's beamwidth-matching technology to ensure integration of the LF and HF drivers. This design eliminates phase discrepancies and frequency discontinuities that are often present in two-way loudspeakers, ensuring a uniform power response across the entire frequency range. Users can operate the MK2394i-WP in either single-amp or bi-amp modes, with bi-amping providing greater flexibility and control by allowing an external processor to independently manage the LF and HF drivers. This results in improved sound quality and system performance, particularly in more complex audio setups.

With an operating range of 65 Hz to 19 kHz, the MK2394i-WP ensures full-range sound reproduction, providing deep bass and crisp highs. The axial sensitivity is rated at 95 dB (LF/HF), 97 dB (LF), and 106 dB (HF), ensuring that the speaker can deliver clear sound even at higher output levels. With a calculated axial output limit of 123 dB (average) and 129 dB (peak) for the LF/HF section, and 125 dB (average) and 131 dB (peak) for the LF section, the MK2394i-WP can achieve a maximum SPL of 140 dB, allowing it to perform in high-output applications without distortion.

Constructed from exterior-grade Baltic birch plywood, the MK2394i-WP offers durability and acoustical efficiency. Its wear-resistant textured finish not only ensures that the speaker can withstand the rigors of daily use but also allows it to blend into any environment. The powder-coated perforated steel grille provides additional protection to the internal components while maintaining optimal sound transparency. With dimensions of 30 x 15.54 x 14.75 inches and a weight of 60 lbs, the MK2394i-WP strikes a balance between portability and durability. It is ideal for both permanent installations and portable applications, offering flexible mounting options such as wall mounting, pole mounting, or suspension in arrays for various installation needs.

Features

• 600W passive 2-way loudspeaker ideal for small to medium-sized venues and distributed fill applications
• 12-inch LF driver with a 3-inch voice coil for deep bass and a 1.4-inch exit, 3-inch voice coil HF compression driver for clear high frequencies
• 90° x 45° beamwidth horn design for even and consistent sound coverage
• Operating range of 65 Hz to 19 kHz, providing full-range audio reproduction
• Maximum SPL of 140 dB with calculated axial output limits of 123 dB (average) and 129 dB (peak)
• Axial sensitivity of 95 dB (LF/HF), 97 dB (LF), and 106 dB (HF) for clear sound at high output levels
• Beamwidth-matching crossover and filter design for integration between LF and HF drivers
• Single-amp and bi-amp operating modes for flexible system configuration
• High-pass filter with a 60 Hz cutoff and DSP with 2-way filters for optimal performance
• Exterior-grade Baltic birch plywood construction with a wear-resistant textured finish for durability
• Powder-coated perforated steel grille for maximum sound transparency and protection
• Dimensions: 30 x 15.54 x 14.75 inches, Weight: 60 lbs
• Shipping weight: 66 lbs

Specifications

Configuration

• Subsystem:
  • LF: 1 x 12 inch cone, vented
  • HF: 1 x 1.4 inch exit, 3 inch voice coil compression driver, horn-loaded
• Operating Mode:
  • Single-amp: LF/HF
  • Bi-amp: LF, HF
• External Signal Processing: High pass filter, DSP w/2-way filters

Performance

• Operating Range: 65 Hz to 19 kHz
• Nominal Beamwidth: 90 x 45 Degree
• Axial Sensitivity (whole space SPL):
  • LF/HF: 95 dB (65 Hz to 19 kHz)
  • LF: 97 dB (65 Hz to 1400 Hz)
  • HF: 106 dB (1200 Hz to 19 kHz)
• Input Impedance:
  • LF/HF 8 Ohm (Nominal), 7.2 Ohm @ 180 Hz (Minimum)
  • LF 8 Ohm (Nominal), 6.9 Ohm @ 290 Hz (Minimum)
  • HF 8 Ohm (Nominal), 6.7 Ohm @ 4700 Hz (Minimum)
• High Pass Filter: High Pass =>60 Hz, 12 dB/octave Butterworth
• Accelerated Life Test:
  • LF/HF: 69.3V (600W @ 8 Ohm)
  • LF: 69.3V (600W @ 8 Ohm)
  • HF: 34.6V (150W @ 8 Ohm)
• Calculated Axial Output Limit:
  • LF/HF: 123 dB (Average), 129 dB (Peak)
  • LF: 125 dB (Average), 131 dB (Peak)
  • HF: 128 dB (Average), 134 dB (Peak)
• Max SPL: 140 dB

Physical

• Material: Exterior-grade Baltic birch plywood
• Finish: Wear resistant textured black paint
• Grille: Powder-coated perforated steel
• Dimensions (HWD): 30 x 15.54 x 14.75 inches
• Weight: 60 lbs
