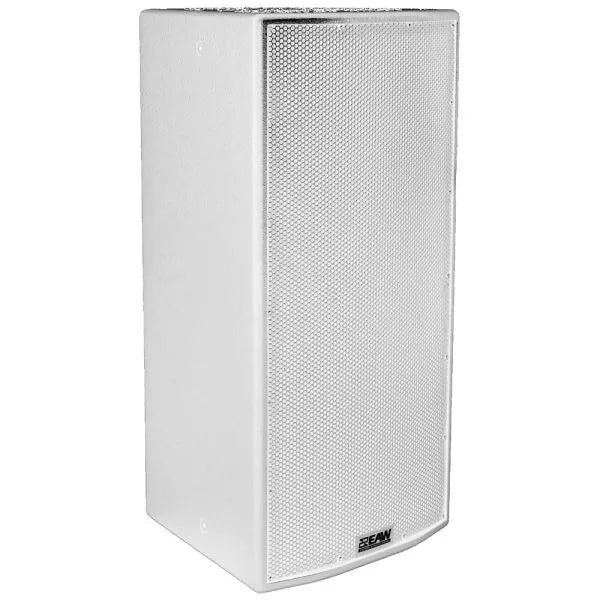

EAW MK2364i-WP 12in 2-Way Full Range Loudspeaker 60° x 45° Weatherproof (White)

Engineered for Versatile Sound Reinforcement

The EAW MK2364i-WP is a 600W 12-inch passive 2-way loudspeaker built to deliver high-performance sound in a wide range of professional audio applications. Installed in smaller venues such as houses of worship, meeting rooms, hotel ballrooms, or corporate A/V spaces, or used in distributed systems across stadiums, arenas, and large entertainment venues, this speaker provides clarity, power, and reliability. The IP56-rated weather protection ensures safe operation in outdoor environments, while the sleek white finish helps it blend into architecturally sensitive spaces.

Wide Coverage with Consistent Output

This model features a 12-inch low-frequency driver with a 3-inch voice coil and a 1.4-inch exit, 3-inch voice coil compression driver for high frequencies. These are coupled through a large-format horn with a 60° x 45° beamwidth, allowing for broad and even sound dispersion. This horn ensures directivity is preserved throughout the high-frequency range, minimizing reflections and maintaining speech intelligibility and tonal clarity across the coverage area. The MK2364i-WP produces powerful, high-fidelity output while staying compact and easy to deploy.

Optimized Driver Integration with Beamwidth-Matching Filters

The MK2364i-WP incorporates EAW’s beamwidth-matching crossover and filter architecture, which maintains a consistent response through the crossover region. This reduces typical issues like phase distortion and lobing found in traditional two-way loudspeakers. System designers can choose between single-amp and bi-amp configurations. Single-amp mode streamlines setup, while bi-amp mode enables precision tuning via external DSP, offering complete control over the low- and high-frequency sections for advanced installations.

High SPL Performance for Demanding Applications

With an operating frequency range of 65 Hz to 16 kHz, the MK2364i-WP delivers full-range coverage suitable for both voice and music playback. Its sensitivity ratings are 95 dB for LF/HF, 97 dB LF, and 107 dB HF, translating to strong performance at lower power levels. The speaker delivers a maximum SPL of 141 dB and calculated axial output limits of 123 dB (average) and 129 dB (peak), making it well-suited for live performances, concerts, and high-volume distributed systems.

Built for Durability and Seamless Installation

Crafted from exterior-grade Baltic birch plywood, the MK2364i-WP features a wear-resistant textured white finish and a powder-coated steel grille to protect the internal components. This enclosure design contributes to acoustic accuracy and withstands environmental stress in permanent and mobile setups. With compact dimensions of 30 x 15.54 x 14.75 inches and a weight of 60 lbs, the speaker is manageable for a range of installation options including wall mounting, tripod use, and flown array configurations.

Reliable Audio in Any Setting

From indoor fixed installations to demanding outdoor environments, the MK2364i-WP provides reliable performance, wide-area coverage, and professional-grade sound. It is fully compatible with other EAW MK2300i series loudspeakers and SBK subwoofers, sharing a common enclosure height for streamlined system design. Used as a standalone unit or part of a larger system, this model delivers on both fidelity and durability.

Features

• 600W passive 2-way loudspeaker with 12-inch LF driver and 1.4-inch exit, 3-inch voice coil HF compression driver
• 60° x 45° beamwidth horn for wide, even sound coverage
• IP56-rated enclosure for outdoor and indoor environments
• Baltic birch plywood cabinet with textured white finish
• Frequency response from 65 Hz to 16 kHz for full-range clarity
• Maximum SPL of 141 dB; calculated output limits of 123 dB average and 129 dB peak
• Axial sensitivity of 95 dB (LF/HF), 97 dB (LF), and 107 dB (HF)
• Beamwidth-matching crossover and filter for smooth driver integration
• Configurable in single-amp and bi-amp modes with external DSP
• High-pass filter at 60 Hz and 2-way DSP filtering for system optimization
• Powder-coated steel grille for added durability and acoustic transparency
• Dimensions: 30 x 15.54 x 14.75 inches
• Weight: 60 lbs; shipping weight: 66 lbs
