Description

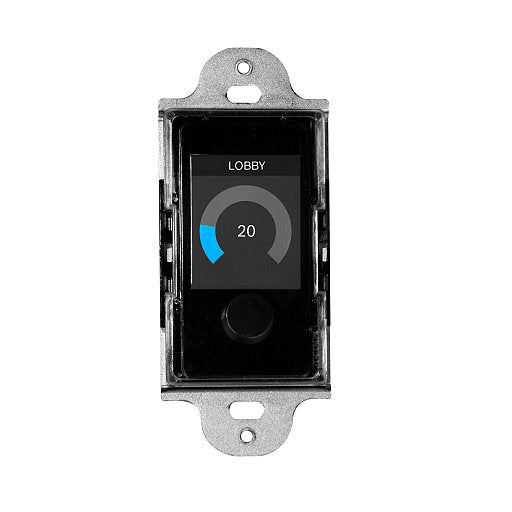

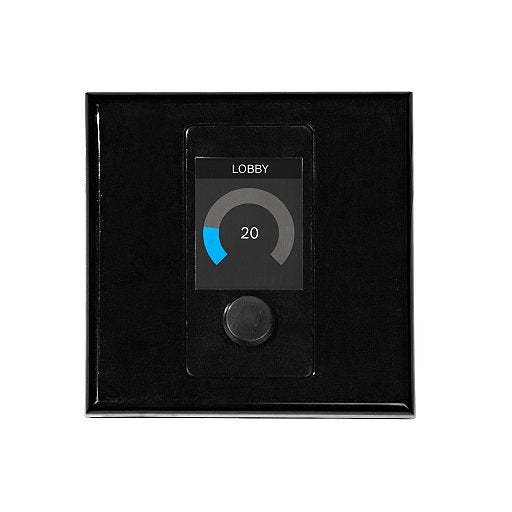

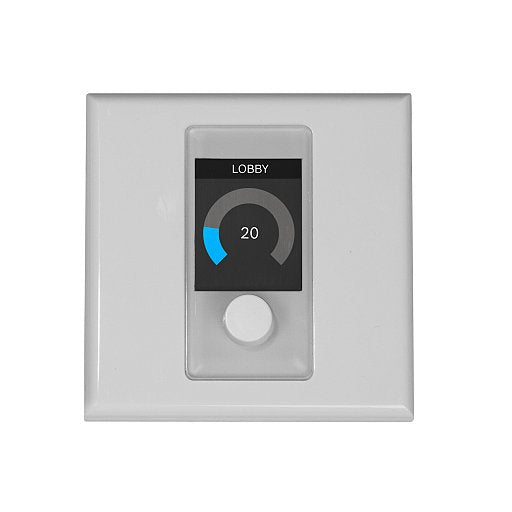

The WPN1 networked wall panel controller provides simplified operation and control of devices within the SONICUE Sound System Software ecosystem. With its 1.77” TFT color display and rotary encoder it can control MXE5 Matrix Mix Engines or IPX amplifiers system-wide. Configuration in SONICUE’s panel designer provides dedicated customization, from volume control in a single zone to multi-zone control with individual pin-protected menus. Combined with the colored display and support of characters for local languages, the WPN1 provides a customization level close to a touch panel controller, ensuring that users can interact effectively with their system.
Supported by MXE5s system logic, WPN1 can also take control for third-party devices like AV equipment or other devices in the building. WPN1 is powered via POE and requires a connection to a SONICUE Control server in the system, such as an MXE5.
Features
- Easy to read 1.77” color TFT display
- Flexible configuration in SONICUE for systemwide control

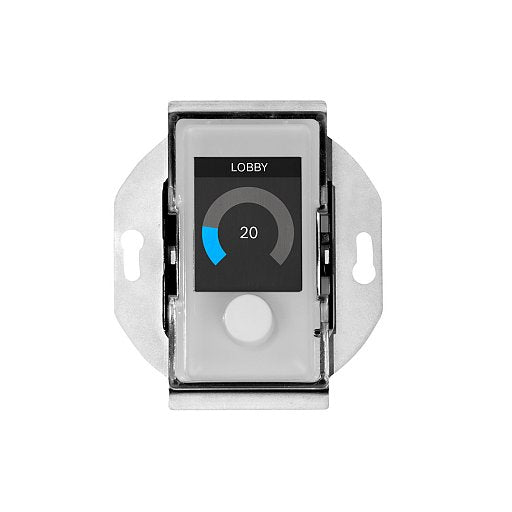

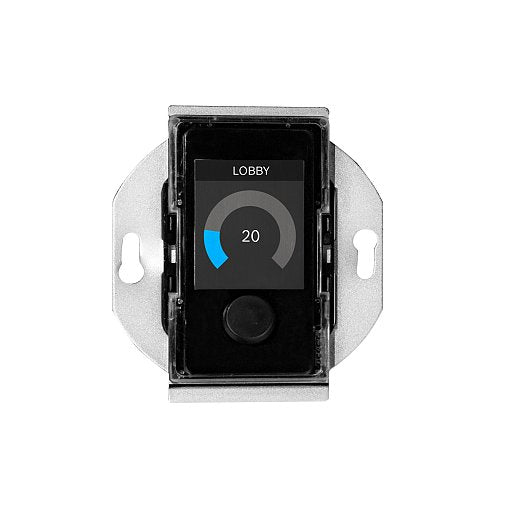

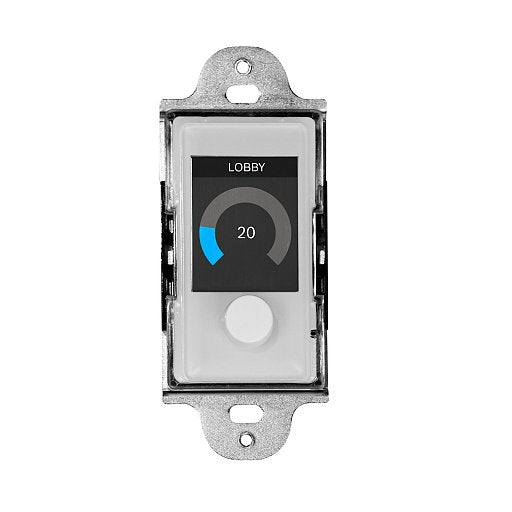

- Simple mounting in standard EU or NEMA single-gang wall-mount boxes
- Convenient powering via PoE

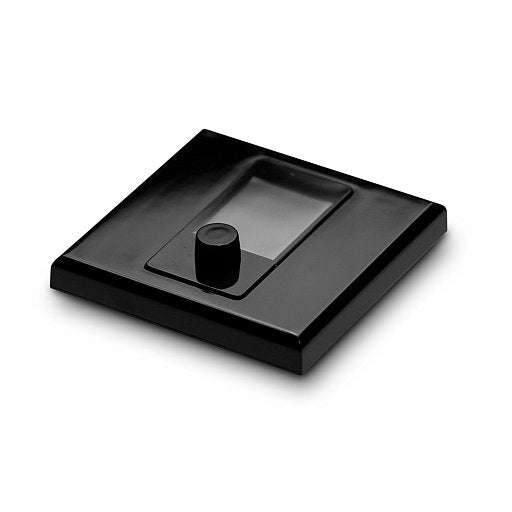

- Interchangeable front panel (white/black)
Specifications
| Display type | TFT |
| Display size (in) | 1.77 in |
| Display resolution (pixels) | 160 x 128 pixels |
| Brightness | 480 cd/m2 |
| Network | Ethernet 100BASE-TX, 1000BASE-T |
| PoE input | PoE IEEE 802.3af |
| PoE nominal voltage (VDC) | 48 VDC |
| Mounting type | Wall-mounted |
| Required box size (mm) | 62 mm diameter, ≥60 mm deep |
| Software compatibility | SONICUE (≥1.2.4) |
| SONICUE Control server | MXE51 |
| Color | White, changeable to black |
| Power consumption (W) | ≤ 1.30 W |
| Operating temperature (°C) | 0 °C, 45 °C |
| Operating temperature (°F) | 32 °F, 113 °F |
| Operating relative humidity, noncondensing (%) | 15%, 93% |
| WPN1-EU (incl. wall plate) | |
| Dimension (H x W x D) (mm) | 86.1 mm x 86.1 mm x 47.2 mm |
| Weight (g) | 93 g |
| Shipping weight (g) | 253 g |
| WPN1-US (w/o wall plate) | |
| Dimension (H x W x D) (mm) | 107.8 mm x 44.0 mm x 47.2 mm |
| Dimension (H x W x D) (inch) | 4.2 in x 1.7 in x 1.9 in |
| Weight (g) | 94 g |
| Weight (lb) | 0.21 lb |
| Shipping weight (g) | 212 g |
| Shipping weight (lb) | 0.47 lb |
