Dynacord VWP-US V Series Wall Panel Controller
$359.00
Free Shipping
Found a better price? We'll match it.
Authorized
Dealer
Track Your
Order
1-Year
Manufacturer Warranty
Buy With Confidence
Buy With Confidence
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

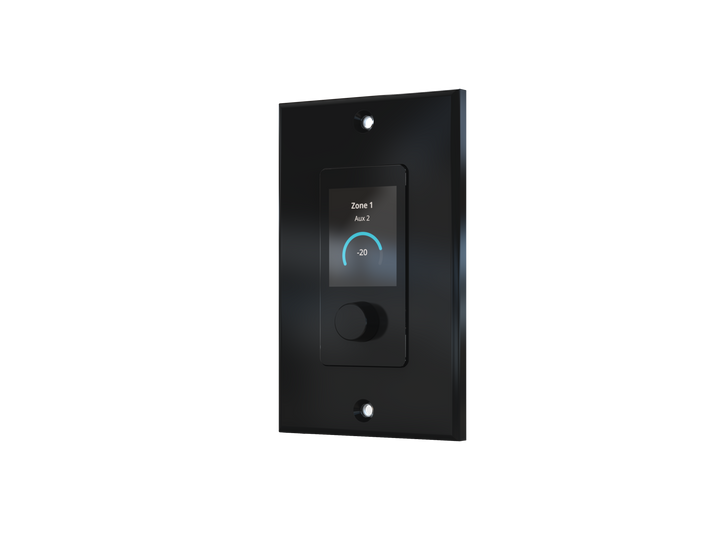

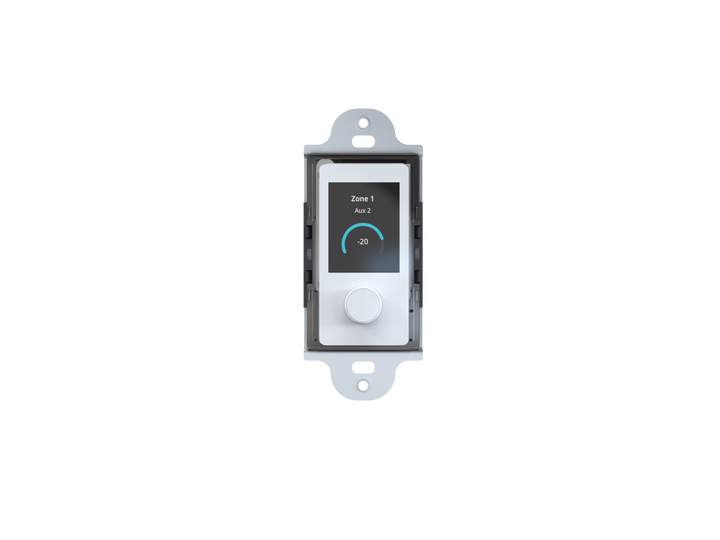

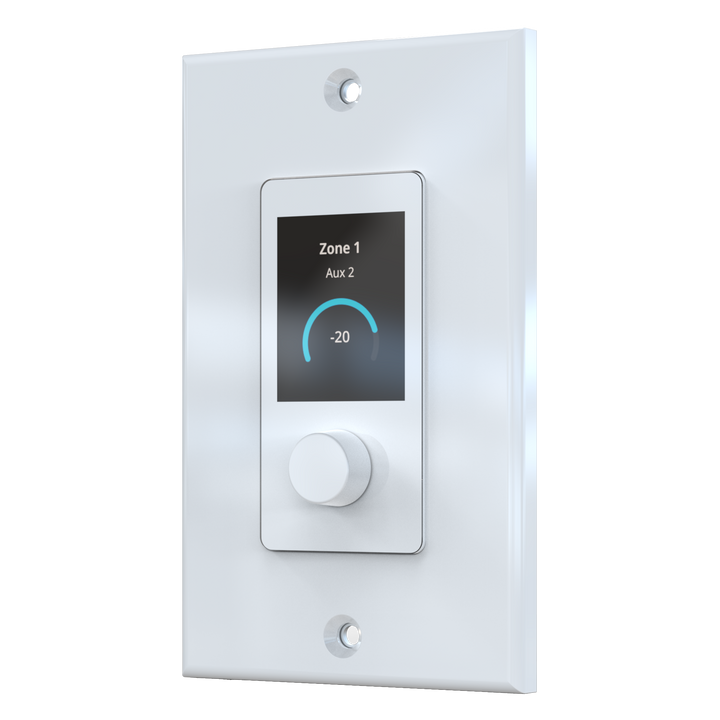

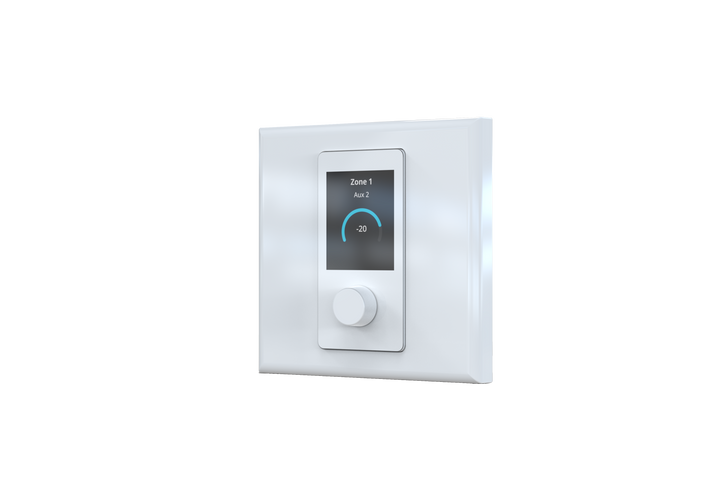

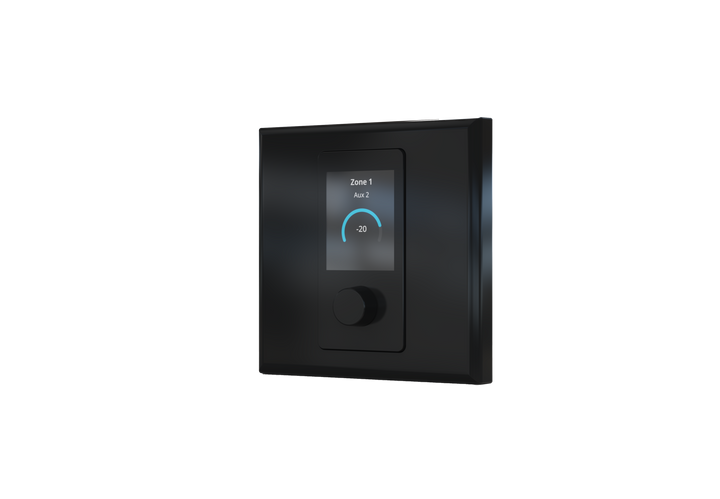

This wall panel controller provides level, zone, source & media playback control with a full color TFT multilingual display.
Features
- Easy to read 1.77” color TFT display
- Unicode support for 150+ languages
- Expandable up to 16 controllers, daisy chained
- Flexible level, zone, source control, and media player control in VZX Web App
- Interchangeable front panel (white/black)
Specifications
Electrical
- Control Type: 24-detent 360° push-button encoder
- Power Consumption: ≤1.30 W
- User Controls: Level, Mute, Zone, Source, Media Player
Display
- Screen: 1.77" color TFT
- Resolution: 160 × 128
- Brightness: 480 cd/m²
Connections

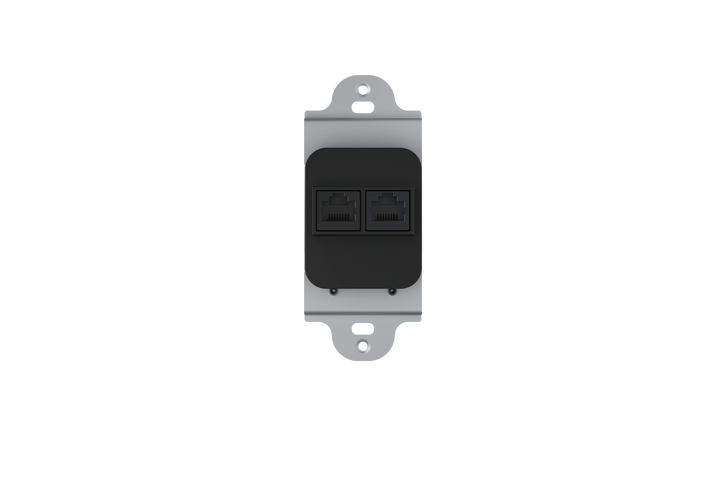

- Connectors: 2 × RJ45 (In/Out)
- Power Source: Accessory Bus of VZX-8
- Daisy-Chain Support: Up to 16 units
Mechanical
- Mounting: Wall-mounted
- Color: White (includes black panel option)
- Dimensions: 4.50 × 1.65 × 1.52 in
- Weight: 0.22 lb
Environmental
- Operating Temperature: +5 °C to +40 °C
- Operating Humidity: 15 to 93% (non-condensing)
