Description

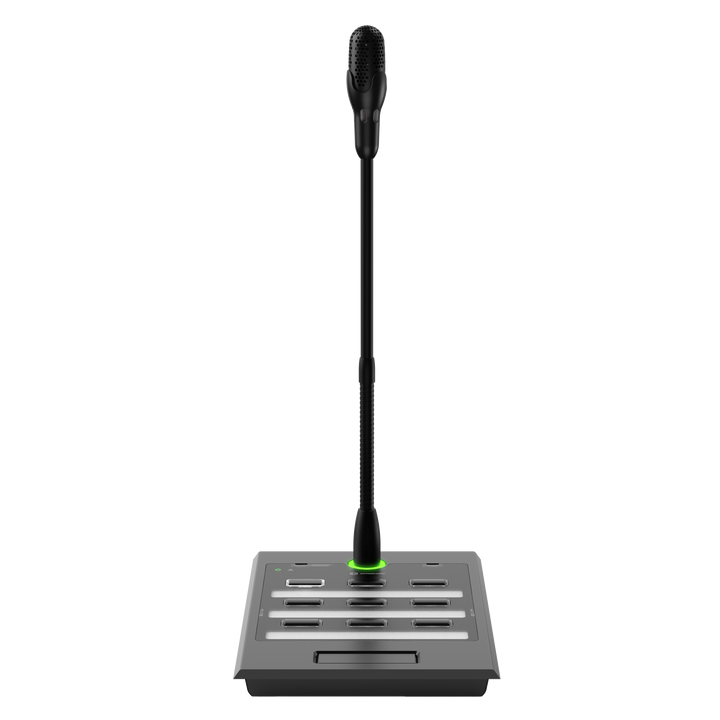

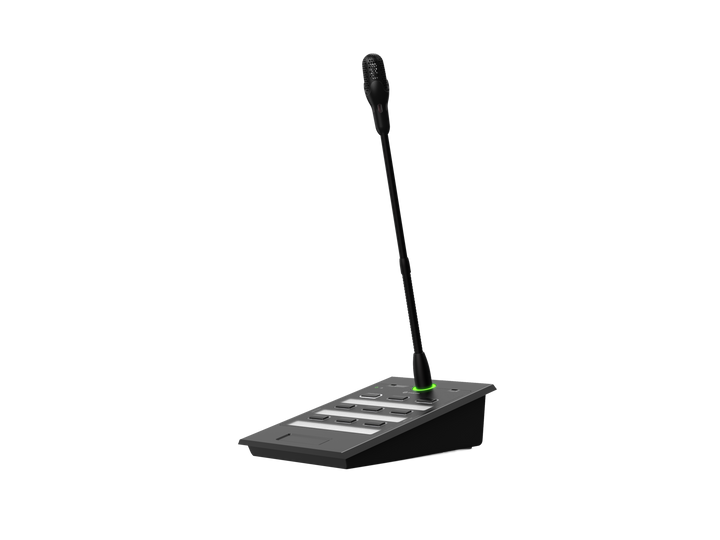

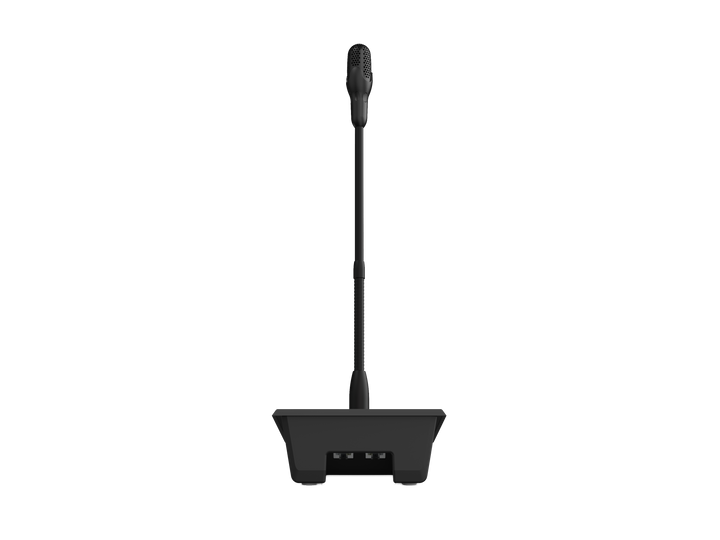

The VCS-8 8-Zone Call Station provides easy zone paging, message triggering, and system control.

Features

  • 9 freely programmable buttons
  • Customizable priority and mutual exclusion busy indication support
  • Expandable with up to 8 call stations
  • LED light-ring busy indication
  • High-quality condenser microphone
  • Sleek, stylish design

Specifications

General
Compatibility
Dynacord V VZX-8
Inputs/Outputs
Audio I/O
2x RJ45 Input/Output
Microphone Type
Electret Condenser powered by Accessory Bus
Input Voltage
+20 dBu (Maximum)
Input Impedance
3.3 Kilohms
EIN
117 dBu @ 150 Ohms (20 kHz BW)
CMRR
Typically 50 dB @ 1 kHz
Frequency Response
100 Hz - 14 kHz
Dynamic Range
> 90 dB
Sample Rate
48 kHz
Polar Pattern
Unidirectional
Input Sensitivity
+ 4 dBu
Wireless
Wireless
Yes
Power
Power Source
DC Input
DC Input Power
37 to 57 VDC
Physical
Color
Black
Operating Conditions
41 to 104°F / 5 to 40°C
Dimensions
7.6 x 5.1 x 2.4" / 192 x 130 x 60 mm (without microphone)
Weight
2.03 lb / 0.92 kg
