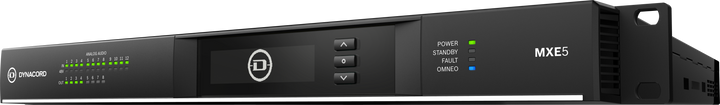

Dynacord MXE5-64 Audio Matrix Mix Engine
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The MXE5-64 Matrix Mix Engine is a performance audio matrix designed to deliver high-quality audio in fixed installation projects, operating at 96 kHz or 48 kHz.
Working as a control center and communications hub for other system devices and IP-based peripherals, it provides supervision and system wide control, featuring 12 analog mic/line inputs, 8 line outputs and 64x64 Dante channels.
The freely configurable DSP unit offers a variety of DSP blocks. The configurable matrix blocks support up to 3840 cross-points and up to 256 internal signal paths for customized DSP designs. Onboard are professional input and output processing features, including mixing, parametric EQ, delays, compression, limiting, ducking, auto mixing, auto gain control, ambient noise compensation and speaker processing with FIR drive.
MXE’s TaskEngine provides advanced, system wide control with functions like scheduler and scene handling. The MXE5-64 is entirely designed and configured in SONICUE Sound System Software which also allows the creation of customized GUIs for use in SONICUE Control on TPC-1 touch panels, iOS devices or PCs.
Specifications
| DSP Matrix Mix Engine | Open architecture DSP, sound system manager, system control and supervision |
| Matrix Size | Flexible with 3860 cross-points, 256 signal paths |
| Dante audio (48/96 kHz) | 64 x 64 channels (64 Flows) |
| Analog Inputs | 12 mic / line w. 48V phantom power |
| Analog Outputs | 8 line |
| Control ports | 8 GPIO (digital in/out, analog in) |
SPECIFICATIONS |
|
| Signal to Noise Ratio (A-weighted) | > 118 dB |
| THD+N | < 0.002 % |
| Sampling rate | 96 kHz / 48 kHz |
| Latency (analog in/out, 96/48 kHz) | < 0.22 ms / 0.45 ms |
| Signal Processing | 32/40-bit floating point |
| Max. input/output level | + 22 dBu |
| DSP blocks | EQs, x-over, FIR drive, compressor, PA & RMS limiter, noise gate, ducker, automatic gain control, ambient noise compensation, mix-matrix, router, auto mixer, delay, generators, detectors, VU meters, polarity, level, mute |
| TaskEngine (system logic) | Analog, logic and text operations, scheduler, scene handling, OCA & HTTP protocol |
| Safety / Redundancy | Int. supervision, system monitoring, watchdog, fault output, audio redundancy supported |
| Dimensions (w x h x d) | 483 x 43.5 x 471 mm (19”, 1RU) |
| Weight | 6.0 kg (13.2 lbs) |
