Description

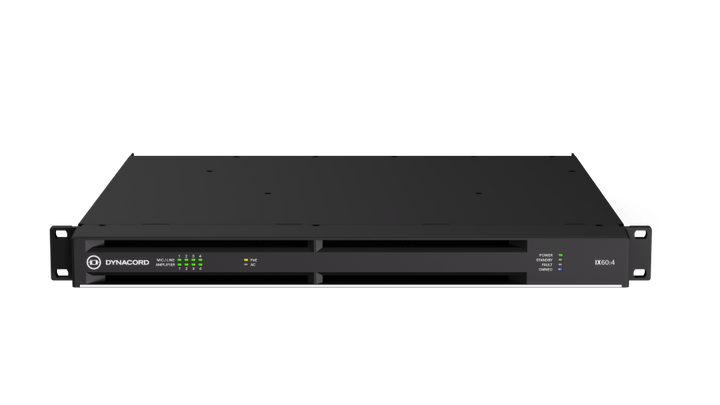

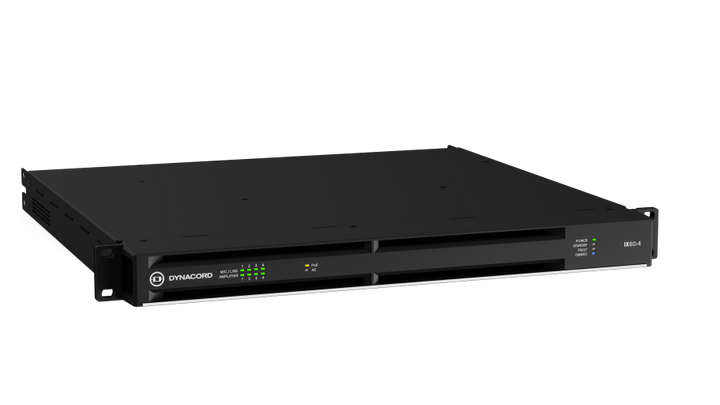

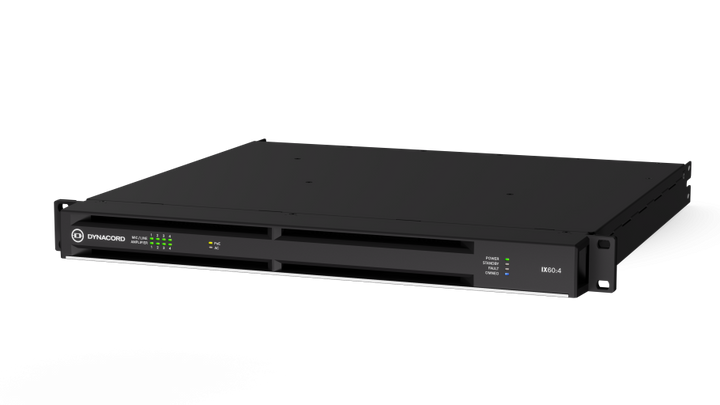

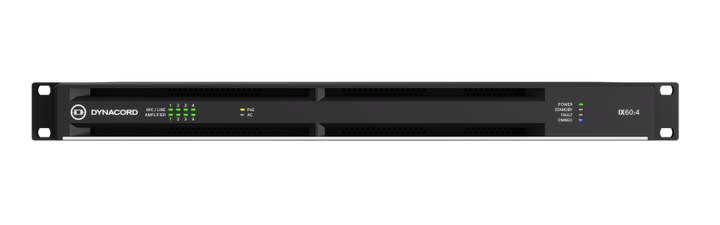

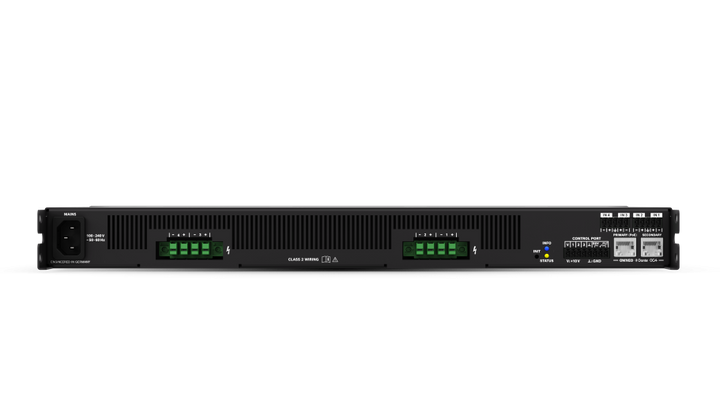

The Dynacord IX60:4 is a 4-channel networked DSP power amplifier with a 6 kW powerTANK for flexible Hi-Z and Lo-Z loads. It combines 8x8 Dante, mic/line inputs with +48 V phantom, a 12 x 12 matrix mixer at 96 kHz, FIR Drive speaker processing, and MXE-style TaskEngine automation in a single 1U chassis.
Networking and System Logic
Eight Dante inputs and eight Dante outputs share the network with OCA/AES70 remote control. 4 mic/line inputs can also feed Dante as break-in points. ghostPOWER via PoE on the PRIMARY port keeps DSP, Dante, and mic/line inputs alive if mains fails. TaskEngine handles scheduling, logic, and third-party integration alongside SONICUE control.
Specifications
- Channels: 4
- powerTANK: 6 kW total shared pool
- Output (all driven @ 4 Ω): 1500 W per channel
- Loads: Lo-Z and Direct Drive 70 V / 100 V
- Mic/line inputs: 4 with switchable +48 V phantom
- Dante: 8 x 8 @ 48/96 kHz
- DSP: 96 kHz, 12 x 12 matrix, FIR Drive, TaskEngine
- Backup power: PoE IEEE 802.3af on PRIMARY RJ45 (ghostPOWER)
- Network: Dual RJ45 with glitch-free PRIMARY/SECONDARY redundancy
- Mains: IEC C14
- Rack size: 1U
- Dimensions: 483 x 44.1 x 447 mm (19.0" x 1.74" x 17.6")
- Weight: 8.6 kg (19.0 lb)
In the Box
- Dynacord IX Series power amplifier
- Mains power cord
- 2 x 5-pin Euroblock input connectors
- 2 x 4-pin Euroblock speaker output connectors
- 1 x 8-pin Euroblock control-port connector
- Quick installation guide
- Safety information
- Installation manual
