Description

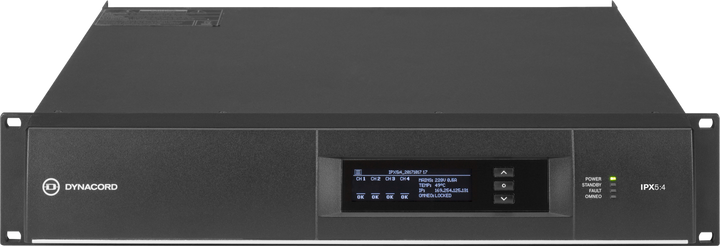

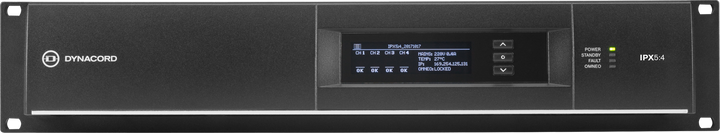

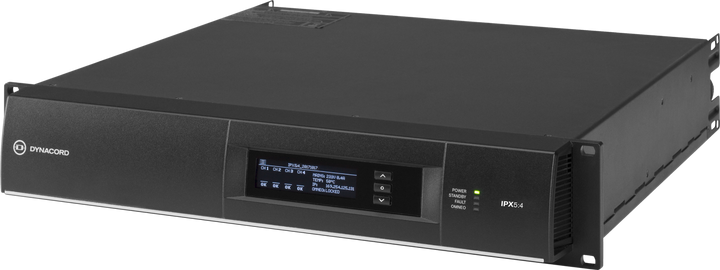

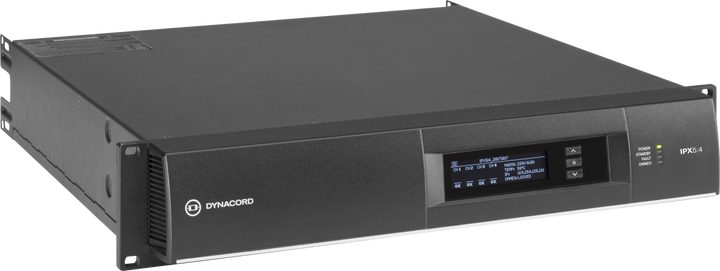

The Dynacord IPX5:4 is a 4-channel Class-D installation DSP amplifier delivering 1250 W per channel at 4 ohms (all channels driven), for 5000 W total. It integrates OMNEO networking (Dante audio plus OCA/AES70 control), native 48/96 kHz DSP with FIR Drive, and Variable Load Drive for low-impedance and 70/100/140/200 V direct-drive operation.
Networking and DSP
Eight OMNEO/Dante audio inputs and two Dante monitor outputs share the network with OCA remote control. Onboard FIR Drive speaker processing, limiters, and EQ run at 48 or 96 kHz. Eco Rail power management and a digitally controlled PFC supply keep heat and idle draw down for permanent installs. Front-panel OLED provides local status and basic control; full configuration uses IRIS-Net or SONICUE.
Specifications
- Channels: 4
- Output power: 1250 W @ 4 Ω, all channels driven (5000 W total)
- Load modes: Low-Z (2-8 Ω); Direct Drive 70/100/140/200 V; bridge, parallel, and parallel-bridge modes
- Topology: Class D with PFC supply
- DSP: 48/96 kHz, FIR Drive
- Network audio: OMNEO/Dante, 8 inputs + 2 monitor outputs

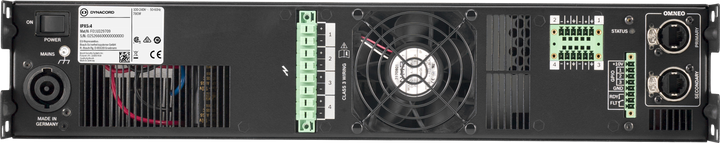

- Analog inputs: 2 x 6-pin Euroblock analog inputs
- Speaker outputs: 1 x 8-pin Euroblock speaker output
- GPIO: 8-pin Euroblock
- Mains: Neutrik powerCON-HC (32 A connector included)
- Rack size: 2U
- Dimensions: 483 x 88.1 x 514.2 mm (19.0" x 3.5" x 20.2")
- Weight: 14.3 kg (31.5 lb)
In the Box
- Dynacord IPX DSP power amplifier
- 1 x 8-pin Euroblock output connector
- 2 x 6-pin Euroblock input connectors
- 1 x 8-pin Euroblock GPIO connector
- 4 x M6x20 rack-mount screws
- 32 A mains powerCON connector with safety instructions
- Installation manual
- Safety instruction booklet
