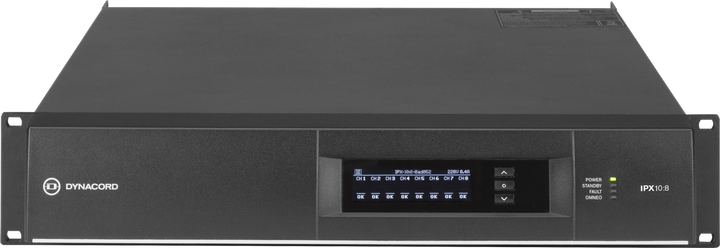

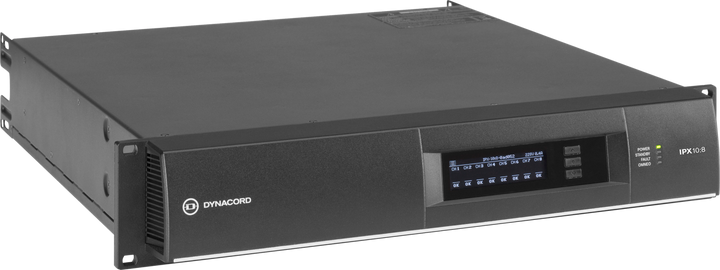

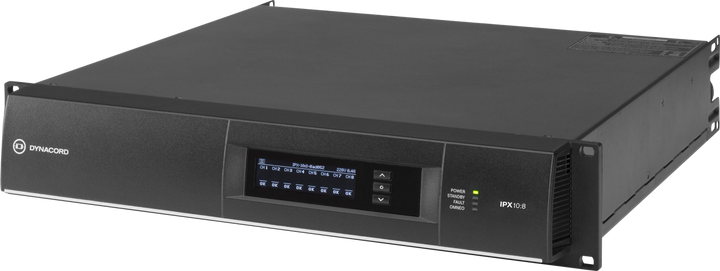

Dynacord IPX10:8 8-Channel 10,000W OMNEO DSP Installation Amplifier
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Dynacord IPX10:8 is a 8-channel Class-D installation DSP amplifier delivering 1250 W per channel at 4 ohms (all channels driven), for 10,000 W total. It integrates OMNEO networking (Dante audio plus OCA/AES70 control), native 48/96 kHz DSP with FIR Drive, and Variable Load Drive for low-impedance and 70/100/140/200 V direct-drive operation.
Networking and DSP

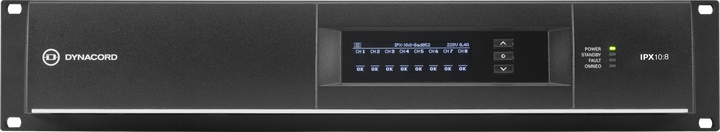

Eight OMNEO/Dante audio inputs and two Dante monitor outputs share the network with OCA remote control. Onboard FIR Drive speaker processing, limiters, and EQ run at 48 or 96 kHz. Eco Rail power management and a digitally controlled PFC supply keep heat and idle draw down for permanent installs. Front-panel OLED provides local status and basic control; full configuration uses IRIS-Net or SONICUE.
Specifications
- Channels: 8
- Output power: 1250 W @ 4 Ω, all channels driven (10,000 W total)
- Load modes: Low-Z (2-8 Ω); Direct Drive 70/100/140/200 V; bridge, parallel, and parallel-bridge modes
- Topology: Class D with PFC supply
- DSP: 48/96 kHz, FIR Drive
- Network audio: OMNEO/Dante, 8 inputs + 2 monitor outputs

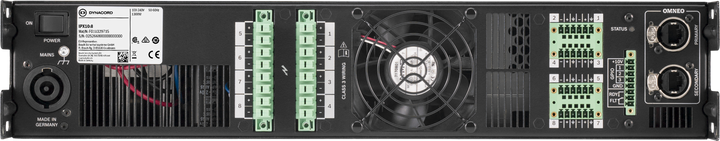

- Analog inputs: 4 x 6-pin Euroblock analog inputs
- Speaker outputs: 2 x 8-pin Euroblock speaker outputs
- GPIO: 8-pin Euroblock
- Mains: Neutrik powerCON-HC (32 A connector included)
- Rack size: 2U
- Dimensions: 483 x 88.1 x 514.2 mm (19.0" x 3.5" x 20.2")
- Weight: 16.8 kg (37.1 lb)
In the Box
- Dynacord IPX DSP power amplifier
- 2 x 8-pin Euroblock output connectors
- 4 x 6-pin Euroblock input connectors
- 1 x 8-pin Euroblock GPIO connector
- 4 x M6x20 rack-mount screws
- 32 A mains powerCON connector with safety instructions
- Installation manual
- Safety instruction booklet
