Description

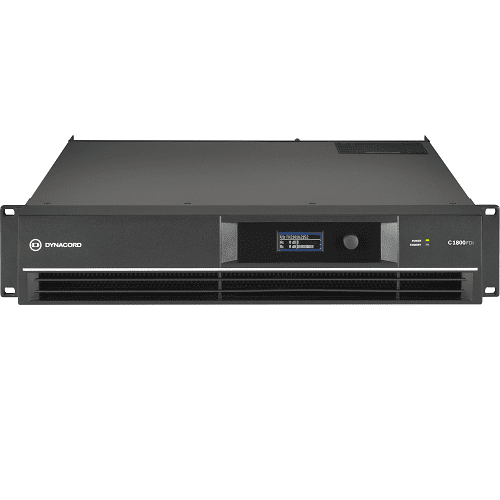

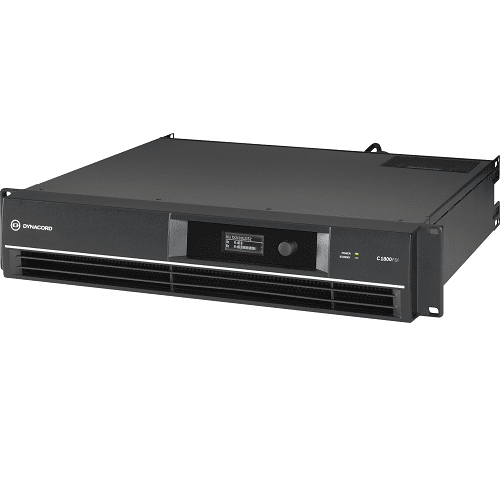

The Dynacord C1800FDi is a 2-channel DSP power amplifier for fixed installation, rated 2 x 950 W at 4 ohms. It combines a robust linear amplifier stage with onboard FIR Drive processing and SONICUE remote control, plus Euroblock I/O, GPIO, and direct-drive high-impedance capability for 70 V / 100 V lines where supported.
DSP and Control
Onboard processing includes FIR filters, limiters, output and array delay, a 10-band user PEQ and 5-band array PEQ per channel, and load impedance measurement. Setup and monitoring are handled through Dynacord SONICUE sound system software over USB. A rear Power/Standby switch and power-remote input support energy-saving install workflows.
Specifications
- Channels: 2
- Rated output (headline): 2 x 950 W @ 4 Ω
- Dual channel (IHF-A-202): 1400 W @ 2 Ω, 850 W @ 4 Ω, 450 W @ 8 Ω
- Bridged: 2800 W @ 4 Ω, 1700 W @ 8 Ω
- High impedance: 70 V dual 2 x 1250 W; 100 V bridged 1 x 1250 W
- Topology: Class AB
- DSP: FIR Drive, limiters, delay, PEQ; SONICUE remote control

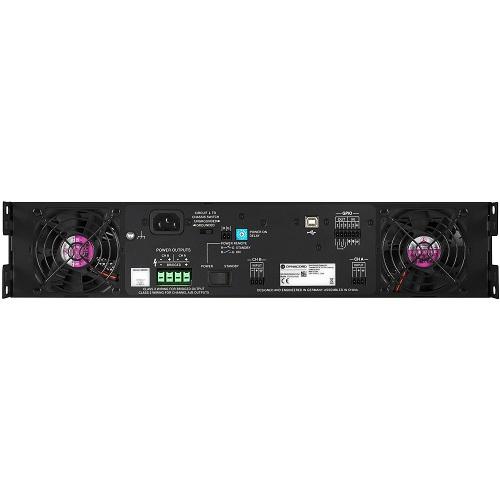

- Inputs: 2 x Euroblock balanced line
- Outputs: Euroblock (CH A, CH B, bridged)
- Other: USB Type B, GPIO, power remote
- Cooling: Front-to-rear, 3-stage fans
- Rack size: 2U
- Dimensions: 483 x 88 x 462.4 mm (19.0" x 3.5" x 18.2")
- Weight: 15.2 kg (33.5 lb)
In the Box
- Dynacord C Series DSP power amplifier
- Mains power cord
- USB cable
- Euroblock GPIO connector
- Euroblock output connector
- 2 x Euroblock input connectors
- Power remote connector
- Installation manual
- Safety instruction card
