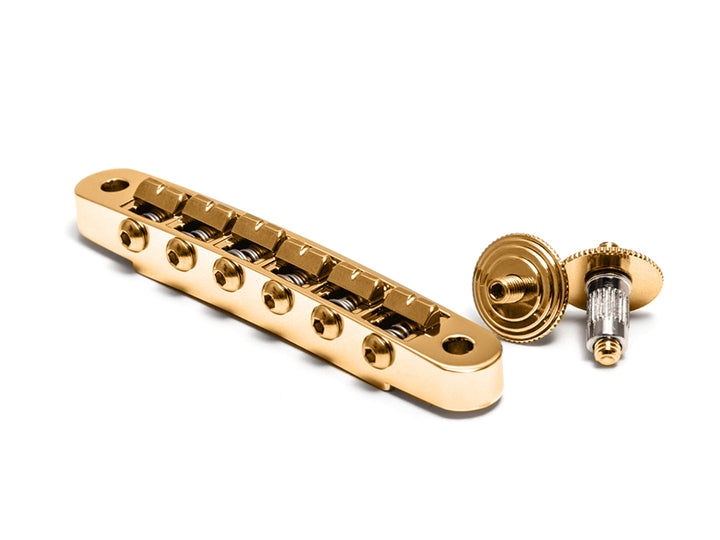

Duesenberg 3-Point Radius Bridge (Gold)

This is the gold-plated version.

3-Point Resonance Transfer for maximum tone. The latest that the Duesenberg tonal research has to offer.

Much like a table with four legs that technically can never really stand still, a traditional bridge-saddle with four contact points to the bridge housing can never perfectly transfer string resonance.

That's why we have developed a bridge that uses only three contact points between bridge housing and saddle to maximize pressure and tonal transfer between strings and instrument.

You have never seen a three legged table wobble, right?

This is all technical jabbering - the thing is that you want to minimize areas on your instrument where resonance and vibration is lost. The bridge is a very important part in that respect.

Of course our new 3-Point Radius Bridge comes with sintered steel saddles for reduced string breakage, floating bridge posts for improved tuning stability and our own friction reducing 3-Step thumbwheels.

Its elegant topcurve creates a perfect radius for modern fretboards and also prevents the strings from touching the back of the bridge housing when a tailpiece is mounted.

The 3-Point Radius Bridge is used on Duesenberg production models since early 2019 and is the latest that the Duesenberg tonal research has to offer.

Stud spacing: 73.5mm/2,89"

String spacing: 52mm/2"

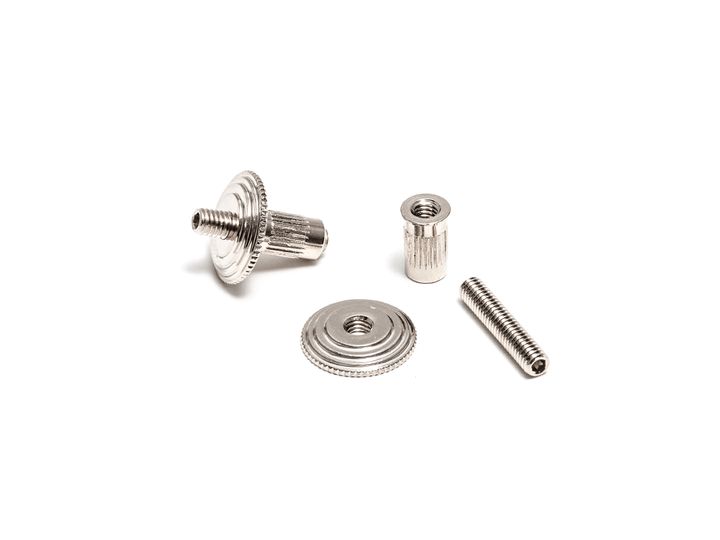

Ships with: M4 Studs, Bushings, Duesenberg 3-Step Thumbwheels
