Duesenberg Alliance Series Mike Campbell 30th Anniversary Electric Guitar (Blue & White)

When Mike Campbell played his Starplayer TV during the 2008 Super Bowl halftime break show with "Tom Petty and The Heartbreakers", it immediately became a milestone for Duesenberg history and an icon around the world.

Mike has been a close friend ever since.

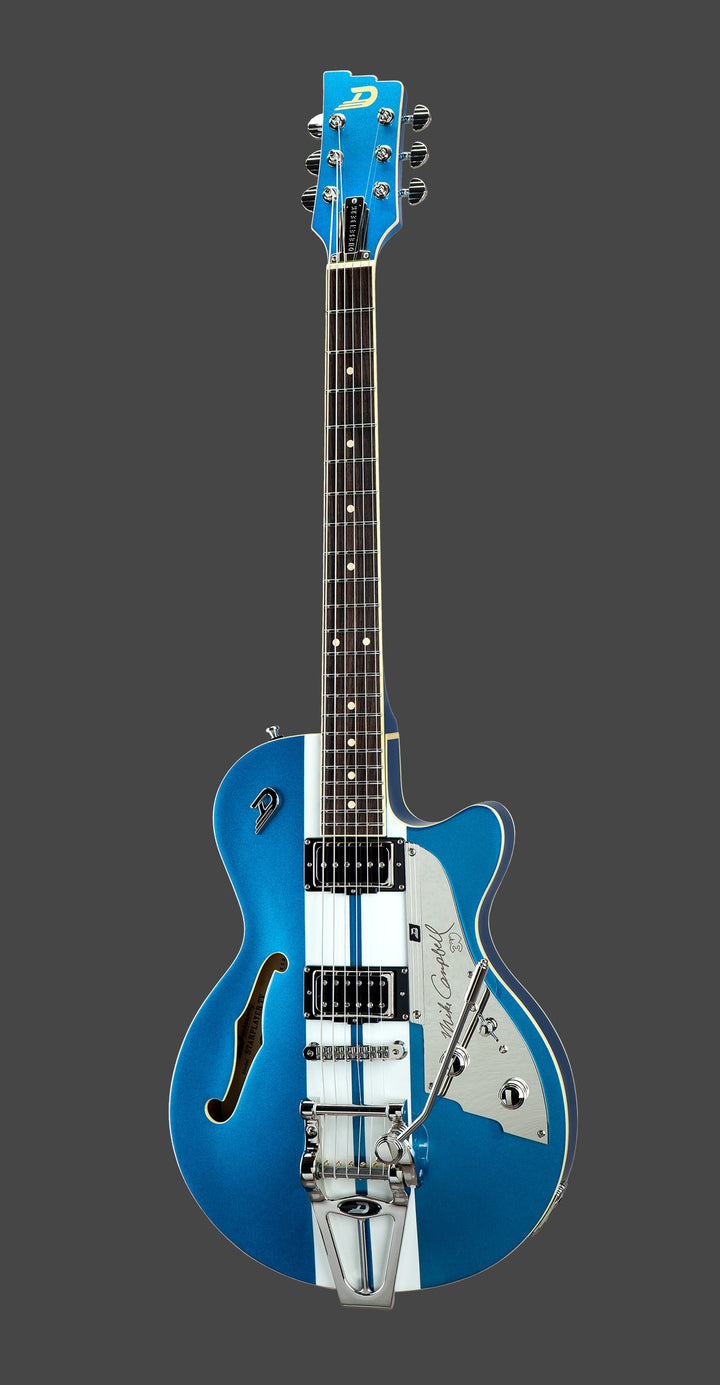

The Alliance Series Mike Campbell is based on our versatile Starplayer TV design. The entire instrument is finished in metallic light blue with added white twinstripes on top. The pickguard shows Mike’s signature.

Three unique editions

Today, the Alliance Series Mike Campbell features three different instruments, two semi-hollow and one all-hollow that are directly fitted to Mike's needs but created for everyone to enjoy.

Features

• Construction: The Alliance Series Mike Campbell comes in two different constructions. The smaller, Starplayer TV shaped instruments feature our versatile semi-hollow construction with a solid centerblock. The big-body Mike Campbell Hollow is all-hollow for a lot of moving air and feedback control.
• Premium Pickups: All Editions come with our own premium pickups. The blue and green versions are fitted with our acclaimed set of pickups that combines the sharp tone of a bridge humbucker with the warmth of a P90 in the neck position. The red all-hollow version features two P90 pickups for a pure and raw hollow tone.
• Plek Processed: Just like all our instruments, the Alliance Mike Campbell receives our elaborate Plek treatment. A pleked fretboard guarantees perfectly level frets. This is the basis for our fret polishing and setup work all done by hand that eventually makes our instruments play like nothing you have ever played before.

Pickups

Duesenberg Pickups are known for their distinct, clear and versatile tone that easily cuts through the mix from mellow Jazz to supercharged Rock.

Our creamy Domino P90 in the neck position and the classically voiced GrandVintage Humbucker at the bridge form an all-around dream team many have tried to replicate. The acclaimed middle position of the Heavy Duty 3-Way Switch features a special wiring which filters certain low-end frequencies out of the humbucker signal. The result is an open, funky and extremely versatile addition to your pallet of tone.

Diamond Deluxe Vibrato

Meet the vibrato system that has changed the idea of what a classic design can do.

Buttery smooth action, reliable tuning stability and string changes that are a breeze are just the main aspects of our unique vibrato design.

The Diamond Deluxe gives you the best tone while being lightweight. Heavy duty needle and nylon bearings give you the highly responsive Duesenberg feel when using the vibrato arm. The arm itself can be turned freely for 360° and can be adjusted to your preferred angle and length. The strings are simply guided through the holes in the bar underneath the arm-axis and can be lead to the tuners without any hassle.

Proven daily on the stages of this world.

Specifications

Neck

• Type: Set Neck, 1-piece Maple
• Width: 42.5 mm / 1.67" (nut), 52 mm / 2.05" (12th fret)
• Thickness: 21 mm / 0.8" (1st fret), 24 mm / 0.95" (12th fret)
• Shape: Medium D
• Fingerboard: Indian Rosewood, radius 305 mm / 12"
• Inlays: Cream dots
• Frets: 22 Jumbo 2.8 x 1.0 mm
• Scale length: 648 mm / 25.5"
• Trussrod: Steel dual-action
• Headstock: Matching body colour

Body

• Type: Semi-hollow with sustain block, bent sides, f-hole
• Top: Laminated Spruce
• Back, sides: Laminated flamed Maple
• Dimensions: 46 x 34 x 7 cm / 18.11" x 13.38" x 2.75"
• Height (sides): 4.5 cm / 1.8"
• Binding: Cream
• Pickguard: Nickel, signed by Mike Campbell
• Finish: PUR lacquer

Hardware

• Tuners: Duesenberg Z-Tuners
• Bridge: Duesenberg Steel Saddle Bridge
• Vibrato System: Duesenberg Diamond Deluxe Tremola
• Strap pins: Duesenberg Standard (Straplock compatible)
• Hardware color: Nickel
• Strings: Duesenberg Custom 10/50 (010-013-017-028-042-050)

Electrics

• Pickup (neck): Duesenberg Domino P90
• Pickup (bridge): Duesenberg GrandVintage Humbucker
• Wiring: 1 Volume, 1 Tone, 3-Way Pickup Selector

Ships with the Duesenberg Custom Line Case.
