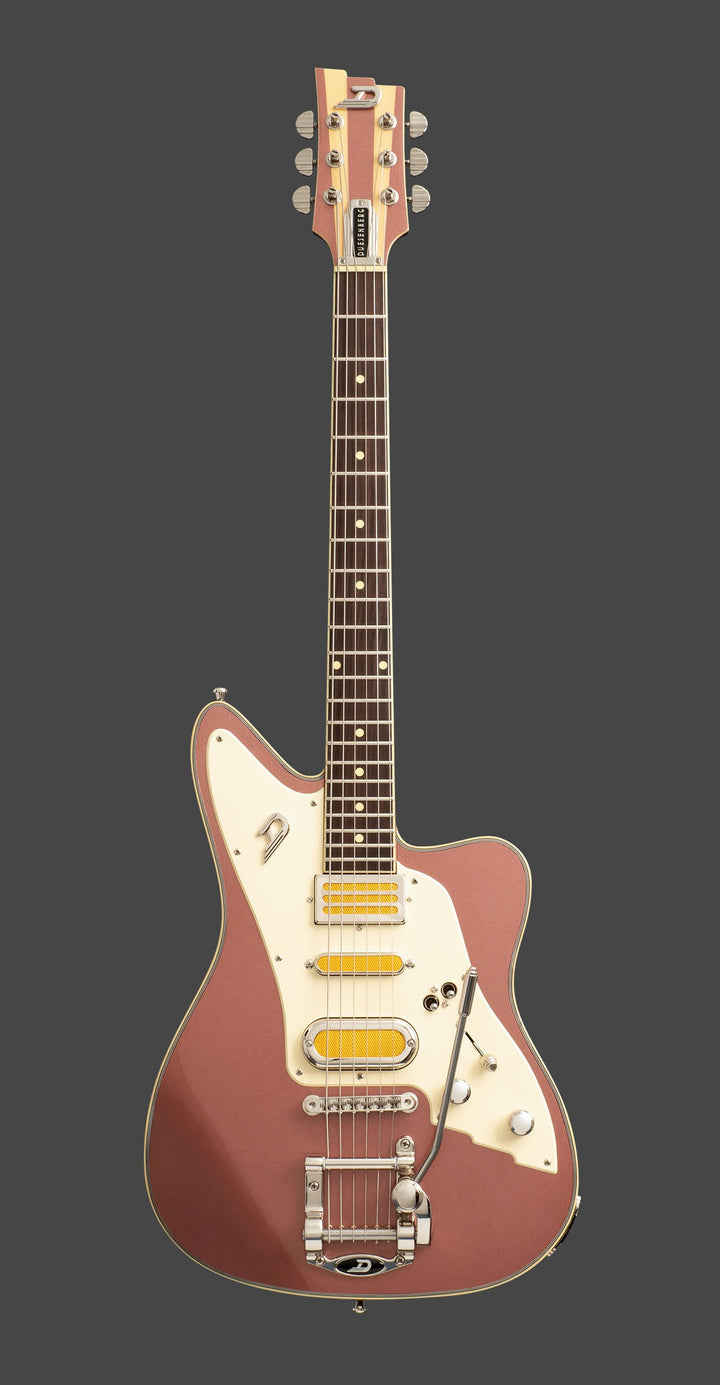

Duesenberg Alliance Series Joey Landreth Signature Electric Guitar (Catalina Sunset Rose)

Features

• Tonal Character: With a solid alder body, delivering quick attack and long sustain from the guitar, and a semi-hollow construction from maple and spruce for the bass, this set of instruments is perfectly geared to each other.
• Custom Pickups: Custom versions of our Split/King Pickup, as well as our very own interpretation of a classic Gold-Foil Singlecoil design, these instruments deliver exceptional tonal quality and a wide variety of sounds.
• Plek Processed: A pleked fretboard guarantees perfectly level frets. This is the basis for our fret polishing and setup work all done by hand that eventually makes our instruments play like nothing you have ever played before.

Joey's Guitar

Besides the acclaimed Duesenberg Radiator Tremola in the short version, Joey's Alliance Guitar has a couple more tricks up its sleeve.

Fitted with our own interpretation of the classic Gold-Foil Singlecoil pickup in the neck position, this guitar is ready for outstanding transparency and clarity which is perfectly suited for Joey's unique playing style. This Gold-Foil is accompanied by a clasically wound Singlecoil in the middle position and a new custom version of our innovative Split/King Duo-Coil design Pickup by the bridge.

This pickup is capable of delivering both real Singlecoil and real Humbucker tones through a unique coil design and was fine tuned for Joey's Guitar to deliver more output and bite.

• The sophisticated wiring, featuring a 3-way switch and two additional toggle-switches on the pickguard allows for the following tonal options:
• Position 1) Bridge Humbucker
• Position 2) Bridge Humbucker + Neck Single Coil
• Position 3) Neck Single Coil
• Upper toggle: mode switch (Humbucker/Single Coil) for the Bridge Pickup
• Lower toggle: add middle position Single Coil in any position

Specifications

Neck

• Type: Set Neck, 1-piece Maple
• Width: 42.5 mm / 1.67" (nut), 52 mm / 2.05" (12th fret)
• Thickness: 21 mm / 0.8" (1st fret), 24 mm / 0.95" (12th fret)
• Shape: Medium D
• Fingerboard: Indian Rosewood, radius 305 mm / 12"
• Inlays: Cream Dots
• Frets: 22 Jumbo 2.8 x 1.0 mm
• Scale length: 648 mm / 25.5"
• Trussrod: Steel dual-action
• Headstock: Matching Color

Body

• Type: Solid Body, Alder
• Dimensions: 46 x 34 cm / 18" x 13.4"
• Height (sides): 4.2 cm / 1.7"
• Pickguard: Cream
• Binding: Multi-layer binding
• Finish: Poly finish

Hardware

• Tuners: Duesenberg Z-Tuners half open
• Bridge: Duesenberg Steel Saddle Bridge
• Vibrato System: Duesenberg Radiator Tremola, short version
• Strap pins: Duesenberg Standard (Straplock compatible)
• Hardware finish: Nickel
• Strings: Duesenberg Custom 19/56 (019-022p-024w-032-044-056)

Electrics

• Pickup (neck): Duesenberg Gold-Foil
• Pickup (middle): Duesenberg Alnico Singlecoil
• Pickup (bridge): Duesenberg Phonico Splitking Custom
• Wiring: 1 Volume, 1 Tone, 3-Way Pickup Selector, 2 Mini-Toggle Switches

Ships with the Duesenberg Custom Line Case.
