Canare MR202-12AT 12-Channel Foil Shield Multichannel Audio Cable 200m Spool (Black)

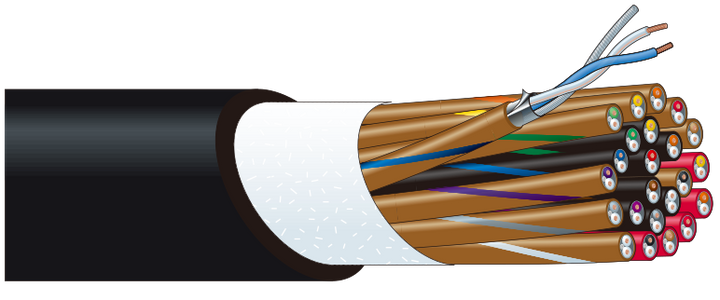

Canare MR202-12AT is a 12-channel two-conductor shielded multichannel audio cable, on a 200m spool in black. Each channel is a twisted pair of 25 AWG stranded conductors (7 x 0.18 mm) at a 25 mm pitch, wrapped in its own 100 percent coverage aluminium foil shield with a drain wire, under a colour-coded inner jacket with spiral markings so channels can be identified without a tester. Channel outer diameter is 2.7 mm.

The MR202-AT is Canare's best-selling multipair for studio interconnect and portable snake systems. The foil shield and drain wire make termination fast, the overall diameter stays at 12.7 mm for 12 channels, and the whole 200m spool weighs about 38 kg. Canare notes it is not intended for heavy-duty applications; for touring snakes that get dragged, look at the braided multichannel ranges.

Features

• 12 channels, each a 25 AWG twisted pair with foil shield and drain wire
• Inner jacket colour coding and spiral markings for channel identification
• Studio interconnect and portable snake systems
• Aluminium foil shield and drain wire for easy termination
• Cross-linked PE insulation, PVC jacket
• Conductor DCR 10.7 ohm/100m, capacitance 76 pF/m between conductors, 142 pF/m conductor to shield

Specifications

• Channels: 12
• Channel O.D.: 2.7 mm
• Nominal O.D.: 12.7 mm
• Weight: 19 kg per 100 m
• Colour: Black
• Length: 200m
