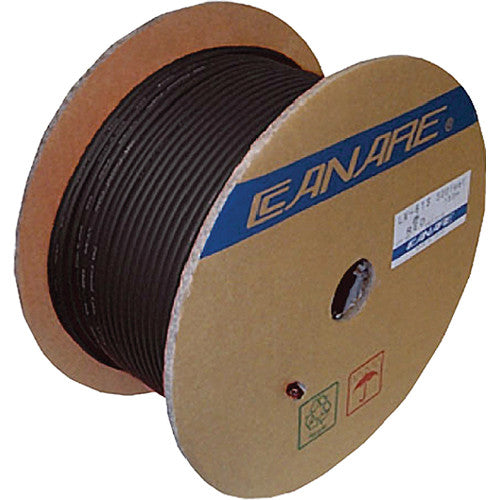

Canare LV-77S Double Shielded 75 Ohm Video Coaxial Cable 153m Spool (Black)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
An amazingly flexible version of 8281F double shielded precision 75 ohm video coax. Typically used for longer cable runs between equipment, Canare LV-77S offers good return loss characteristics and excellent signal isolation. Available in 10 different non-glare PVC jacket colors.
Features
- Flexible Center Conductor: Stranded Bare Copper
- Dielectric strips away clean from Conductor
- Tightly Woven Braid Shield
- Stays Flexible even in Sub_Zero Weather
LV-77S is the flexible, double-shielded member of Canare's standard coax range: a stranded 22 AWG center conductor (7 x 0.26 mm) inside solid polyethylene, under two tinned copper braids of 92 and 95 percent coverage. The double braid gives the isolation of Belden 8281F-class precision coax while the stranded center lets the cable bend where a solid-conductor cable would not. Canare notes that TS100-series strippers cannot be used on this cable.
Specifications
- Impedance: 75 ohm
- Center conductor: stranded 22 AWG (7 x 0.26 mm) bare copper
- Insulation: solid PE, 4.8 mm
- Shield: double tinned copper braid, 92 and 95 percent coverage
- Nominal O.D.: 7.7 mm
- Weight: 9.0 kg per 100 m
- Capacitance: 67 pF/m
- Terminate with Canare BCP-A77 (die TCD-5CF, boot CB05A)
- Colour: Black
- Length: 153m
