Canare L-4E5C Slim Star Quad Microphone Cable 200m Spool (Black)

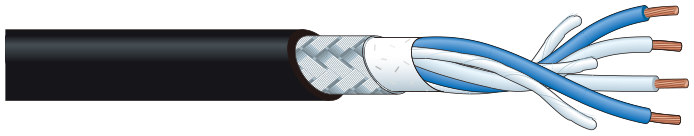

Canare L-4E5C is the narrow-profile version of the L-4E6S star quad microphone cable, on a 200m spool in black. It keeps the four-conductor star quad geometry that cancels induced noise, but uses 26 AWG conductors (30 strands of 0.08 mm each) at an 18 mm twist pitch to bring the outer diameter down to 4.8 mm and the weight to 3.4 kg per 100 m.

Canare designed it to save space and weight for remote field work and confined installations: lavalier and headset runs, camera audio, compact snakes and rack wiring where a 6 mm cable will not route. The 96 percent coverage braided shield, cross-linked PE insulation and cold-flexible PVC jacket are the same as the full-size cable, and the ultrafine strands make it bend resistant.

Features

• Star quad construction: four 26 AWG conductors, 30 x 0.08 mm strands each
• Narrow profile version of L-4E6S, 4.8 mm outer diameter
• High density braided copper shield, 96 percent coverage
• Bend resistant design for remote field work and confined installations
• Cross-linked PE insulation, flexible in extreme cold weather
• Rejects EMI and RFI, reduced handling noise
• Conductor DCR 13.0 ohm/100m, shield DCR 2.4 ohm/100m
• Capacitance 162 pF/m between conductors, 200 pF/m conductor to shield

Specifications

• Nominal O.D.: 4.8 mm
• Weight: 3.4 kg per 100 m
• Twist pitch: 18 mm
• Colour: Black
• Length: 200m
