Canare

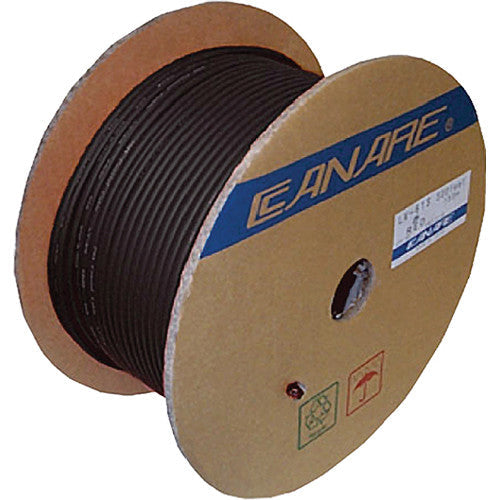

Canare L-4.5CHD 3G-SDI 75 Ohm Video Coaxial Cable 300m Spool (Black)

12G-SDI 18 AWG Coaxial Cable w/Braided & Foil Shield - 300m
$1,615.99 Free Shipping
Found a better price? We'll match it.
SKU: L-4.5CHD-300M-BLACK
Special Order
Our specialists procure special orders 1.19x faster than the industry average. Most orders arrive within 1-2 weeks.

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Authorized Dealer
Canare
Track Your
Order
1-Year Manufacturer Warranty
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Buy With Confidence
Authorized Dealer
Canare
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Track Your
Order
1-Year Manufacturer Warranty
Buy With Confidence

Talk to our Experts

Have questions about this product? Our team is here to help!

Shipping, Returns & Financing

Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.

Province Standard Shipping Express Shipping
ON $19 $39
QC, MB $29 $69
Other $39 $119

Payment & Financing Options

We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.

Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.

Returns

Products can be returned within 14 days of delivery or pickup.

View our full return policy

Description

Canare's variety of 75 ohm coaxial cables support full-range of video formats. Our cutting-edge Super Low Loss Coax and Low Loss Coax are ideal for 3G-SDI / HD-SDI distribution.

Features

  • Best suited to 3G-SDI / HD-SDI transmission.
  • Highly-foamed PE insulation allows further improvement in the attenuation characteristics.
  • Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength.
  • Tinned copper braid with aluminum foil brings excellent shielding.
  • Flame resistance UL 1666 Riser (L-2.5CHD, L-4CHD, L-4.5CHD, and L-5CHD).

L-4.5CHD is a Super Coax from Canare's L-CHD series, built for 3G-SDI and HD-SDI in fixed installations. A solid 18 AWG (1.02 mm) copper center conductor sits inside highly foamed multi-layer polyethylene, under an aluminium foil and a 91 percent tinned copper braid. Attenuation is 25.1 dB per 100 m at 1.5 GHz. Canare designed it for fixed installation, so avoid repeated bending or external pressure, and terminate it with the BCP-B53 crimp plug.

Specifications

  • Impedance: 75 ohm
  • Center conductor: solid 18 AWG, 1.02 mm
  • Insulation: highly foamed PE, 4.57 mm
  • Shield: aluminium foil plus tinned copper braid, 91 percent
  • Nominal O.D.: 7.0 mm
  • Weight: 6.2 kg per 100 m
  • Inner conductor resistance: 23.3 ohm/km
  • Capacitance: 53 pF/m
  • Attenuation: 25.1 dB/100m at 1.5 GHz
  • Terminate with Canare BCP-B53 (die TCD-35CA, boot CB05A) or DCP-C53 DIN
  • Colour: Black
  • Length: 300m
