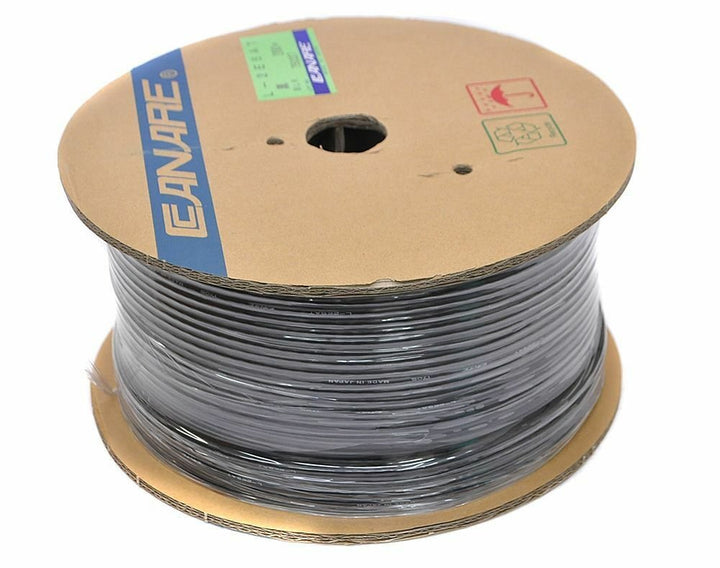

Canare L-2B2AT Foil Shield Microphone Cable 200m Spool (Black)

Canare's thinnest profile audio hookup wire. Amazingly flexible, with 100% foil shield, drain wire and PVC jacket that strips easily for rapid assembly. Suitable for large cable harness bundles, mixing consoles, tape machines and inner-rack wiring.

Features

• 100% Foil Shield Coverage w/Drain Wire
• Built in Dupont® Kevlar 29 and Drain Wire
• Cross Linked PE Insulation
• Reduced Handling Noise
• Rejects EMI and RFI

Applications

• Microphones
• Permanent Installations
• Audio Patch Cords
• PA Systems
• Post Production Suites
• Recording Studios

Each of the two 25 AWG conductors is 16 strands of 0.12 mm copper, twisted at a 25 mm pitch under a 100 percent aluminium foil shield with a drain wire, cross-linked polyethylene insulation and a PVC jacket. At 3.2 mm outer diameter and 1.3 kg per 100 m it is the cable for console harnesses, patchbay wiring and anywhere a braided cable would be too thick to route.

Specifications

• Conductors: 2 x 25 AWG (16 x 0.12 mm)
• Twist pitch: 25 mm
• Shield: aluminium foil, 100 percent, with drain wire
• Insulation: cross-linked PE, jacket PVC
• Nominal O.D.: 3.2 mm
• Weight: 1.3 kg per 100 m
• Conductor DCR: 10.5 ohm/100m
• Capacitance: 66 pF/m between conductors, 120 pF/m conductor to shield
• Colour: Black
• Length: 200m
