Description
The Canare FJ-FPC is a 75 ohm F-type receptacle for straight mounting on a printed circuit board. It gives a piece of equipment a threaded F jack for cable television, satellite (BS/CS) and RF distribution feeds without any internal coax wiring, since the connector solders straight to the board and the front panel hole locates it.

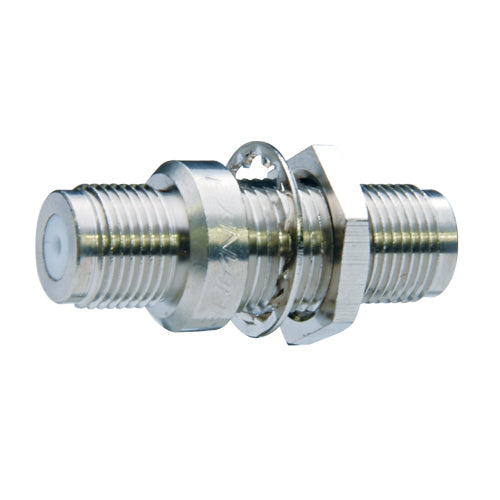

The connector keeps a VSWR of 1.1 or less up to 2 GHz, which covers CATV and satellite IF bands. It accepts the IU-7/16 insulation bushing when the jack must be isolated from the panel. Canare makes the same receptacle as a panel-mount feed-through (FJ-JR) and in flush-mount versions with ITT and Neutrik D flanges.
Features
- 75 ohm F-type receptacle, PC board straight mount
- VSWR 1.1 or less up to 2 GHz
- Return loss 20 dB at 2 GHz
- Suitable for satellite broadcast (BS/CS) and CATV
- Accepts insulation bushing IU-7/16
