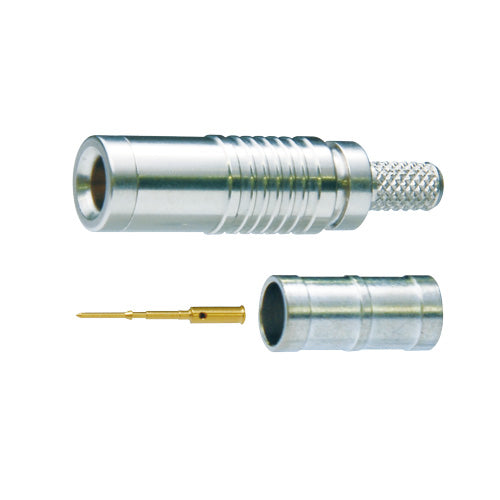

Canare DCP-C25HD 75 Ohm DIN 1.0/2.3 Crimp Plug for L-2.5CHD

75 ohm DIN 1.0/2.3 Plug for L-2.5CHD/L-2.5CHLT/1855A
$16.99
Found a better price? We'll match it.
SKU: DCP-C25HD
Special Order
Our specialists procure special orders 1.19x faster than the industry average. Most orders arrive within 1-2 weeks.

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Free shipping on most orders above $199

Purchase with Apple and Google Pay

Test gear at our store

Authorized Dealer
Canare
Track Your
Order
1-Year Manufacturer Warranty
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Buy With Confidence
Authorized Dealer
Canare
Blackout Audio storefront
Blackout Audio
Google Reviews
Reviewer
"You can tell they really care." Read
Reviewer
"Welcoming but also super professional" Read
5.0 Read All Reviews
Track Your
Order
1-Year Manufacturer Warranty
Buy With Confidence

Talk to our Experts

Have questions about this product? Our team is here to help!

Shipping, Returns & Financing

Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.

Province Standard Shipping Express Shipping
ON $19 $39
QC, MB $29 $69
Other $39 $119

Payment & Financing Options

We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.

Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.

Returns

Products can be returned within 14 days of delivery or pickup.

View our full return policy

Description

The Canare DCP-C25HD is a true 75 ohm DIN 1.0/2.3 crimp plug, compatible with IEC 61169-29 and DIN 47297 mini coax connectors. It terminates Canare L-2.5CHD and L-2.5CHLT cable, and also fits Belden 1855A and VDM230. DIN 1.0/2.3 is the connector of choice for high density routers, multiviewers and micro video patchbays where a BNC will not fit.

Canare's ball-locking mechanism gives a smooth push-on mating with a positive lock, and the elongated body lets you grip the plug in a tight rear panel. The gold plated beryllium copper center contact and the Canare crimp design keep return loss at 20.8 dB or better up to 3 GHz for 3G-SDI, HD-SDI and SD-SDI. To remove the plug from a dense panel, use the BET-DIN or BET-D/H extraction tool.

Features

  • True 75 ohm DIN 1.0/2.3 crimp plug, IEC 61169-29 and DIN 47297 compatible
  • For Canare L-2.5CHD and L-2.5CHLT, Belden 1855A, VDM230
  • Ball-locking mechanism for smooth, reliable mating
  • Return loss 20.8 dB or greater up to 3 GHz
  • Gold plated beryllium copper center contact
  • Elongated body for stable finger grip

Works With

  • Replacement center pin: BN1148, sleeve: BN7136
  • Crimp die set: TCD-D253F
  • Extraction tool: BET-DIN or BET-D/H
