Canare BCP-D55UHD 75 Ohm 12G-SDI BNC Crimp Plug for L-5.5CUHD
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

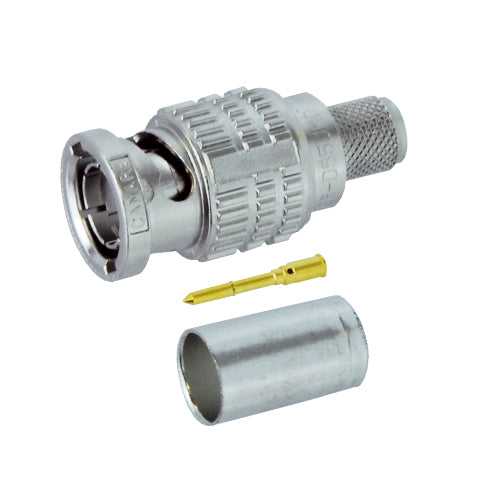

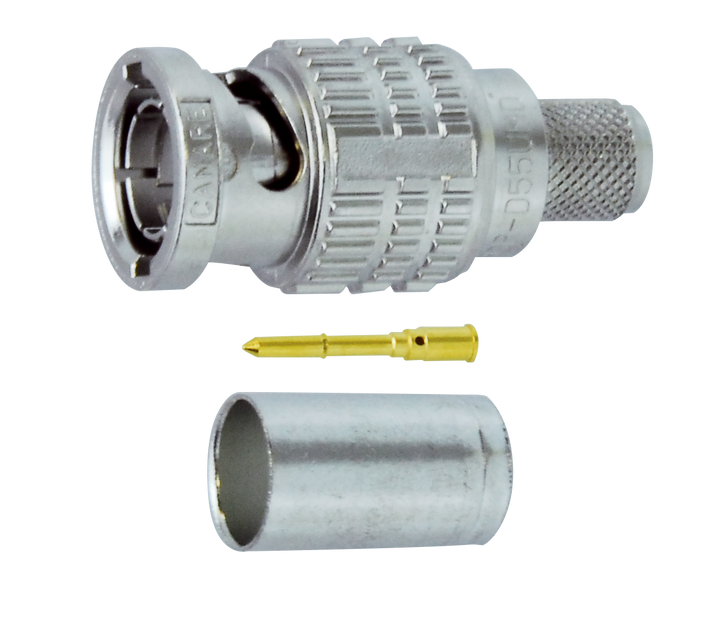

The Canare BCP-D55UHD is a true 75 ohm BNC crimp plug from the BCP-D series, the connector family Canare designed for 12G-SDI. It terminates Canare L-5.5CUHD coaxial cable and is fully compliant with SMPTE ST 2082-1, so a 4K UHD single-link run keeps the return loss the standard asks for: 20 dB at 6 GHz and 15 dB at 12 GHz.
The elongated body gives your fingers something to hold in a dense patch panel, and a position mark on the body shows at a glance whether the plug is locked. The gold plated center pin snaps into the locking insulator so it cannot drift during crimping, and the beryllium copper outer contact keeps its spring over years of mating cycles.
Features
- 12G-SDI 4K UHD capable, SMPTE ST 2082-1 compliant
- Engineered for Canare L-5.5CUHD 12G-SDI coaxial cable
- Return loss 20 dB at 6 GHz and 15 dB at 12 GHz
- Gold plated snap-lock center pin and beryllium copper outer contact
- Elongated body for a better grip, position mark to confirm locking
- Canare crimp design for quick, repeatable installation with Canare strip and crimp tools
Works With
- Replacement center pin: BN1175, sleeve: B75004A
- Crimp die set: TCD-55UHD
