Canare BCP-D33UHD 75 Ohm 12G-SDI BNC Crimp Plug for L-3.3CUHD
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

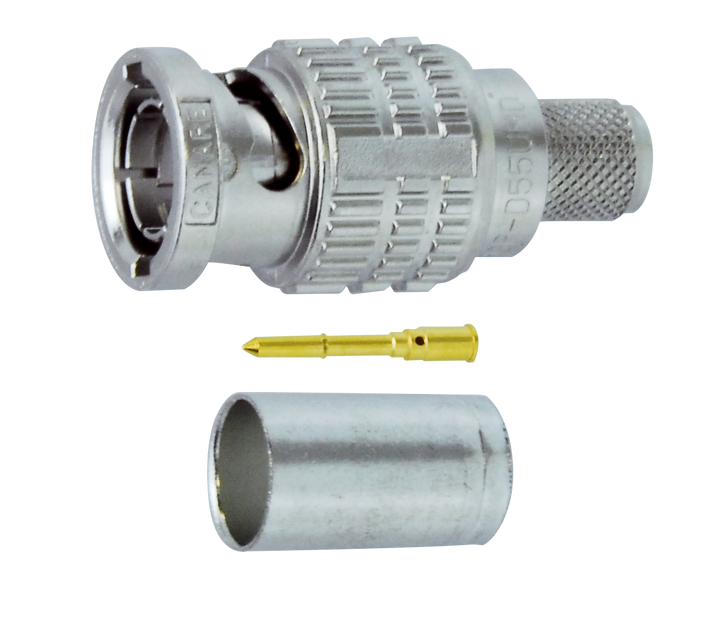

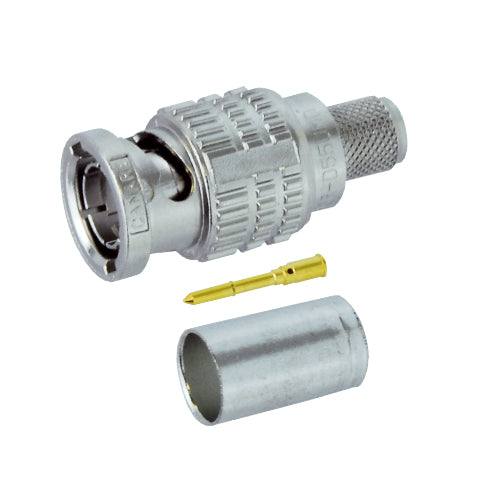

The Canare BCP-D33UHD is a true 75 ohm BNC crimp plug from the BCP-D series, the connector family Canare designed for 12G-SDI. It terminates Canare L-3.3CUHD coaxial cable and is fully compliant with SMPTE ST 2082-1, so a 4K UHD single-link run keeps the return loss the standard asks for: 20 dB at 6 GHz and 15 dB at 12 GHz.
The elongated body gives your fingers something to hold in a dense patch panel, and a position mark on the body shows at a glance whether the plug is locked. The gold plated center pin snaps into the locking insulator so it cannot drift during crimping, and the beryllium copper outer contact keeps its spring over years of mating cycles.
Features
- 12G-SDI 4K UHD capable, SMPTE ST 2082-1 compliant
- Engineered for Canare L-3.3CUHD 12G-SDI coaxial cable
- Return loss 20 dB at 6 GHz and 15 dB at 12 GHz
- Gold plated snap-lock center pin and beryllium copper outer contact
- Elongated body for a better grip, position mark to confirm locking
- Canare crimp design for quick, repeatable installation with Canare strip and crimp tools
Works With
- Crimp die set: TCD-35CA
- Matching strain relief boot: CB03
