Description

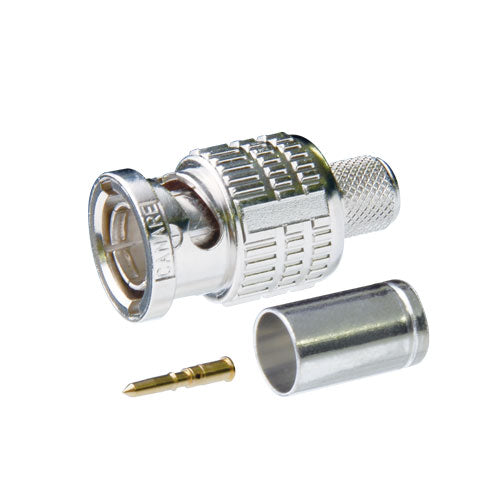

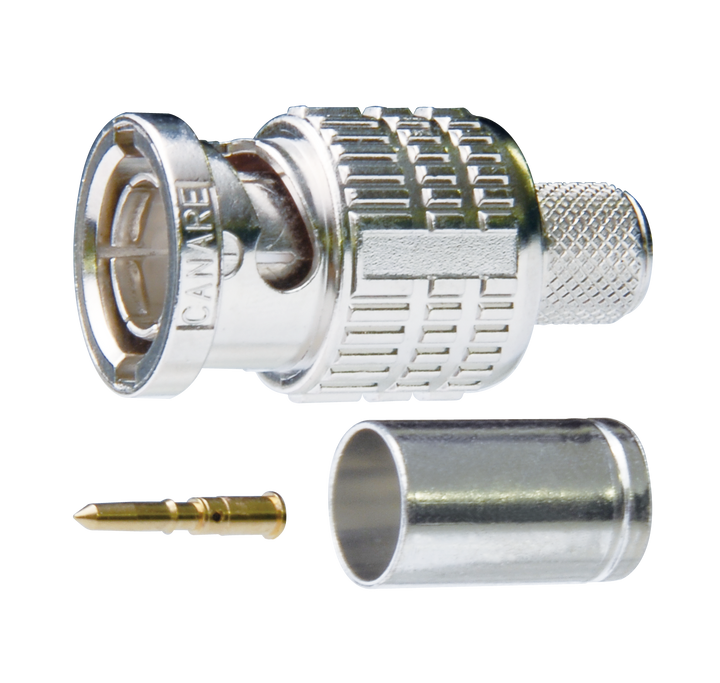

The Canare BCP-B5F is a 75 ohm BNC crimp plug from the BCP-B series, sized for L-5CFB and V-5CFB coaxial cable. The B series is Canare's workhorse connector for 3G-SDI and 6G-SDI, HD-SDI and SD-SDI, and it meets SMPTE 424M and 292M with a return loss of 26.4 dB at 3 GHz and a VSWR of 1.1 or less up to 3 GHz.
Each plug uses the same crimp pin and sleeve system as the rest of the Canare BNC range: the gold plated center pin snaps into place so it cannot shift during assembly, the die-cast body is elongated for finger grip in crowded panels, and a position mark on the body lets you confirm the connector is locked. Strip and crimp with Canare tools and the assembly is done in seconds.
Features
- True 75 ohm construction with crimp pin and sleeve
- SMPTE 424M and 292M compliant for 3G-SDI, HD-SDI and SD-SDI
- Return loss 26.4 dB at 3 GHz, VSWR 1.1 or less up to 3 GHz
- Gold plated snap-lock center pin, die-cast body
- Elongated body and position mark for confident locking
- Superior cable pull strength
Works With
- Cable: Canare L-5CFB and V-5CFB
- Replacement center pin: B11020D, sleeve: B75004A
- Matching strain relief boot: CB05A
- Crimp die set: TCD-5CF or TCD-55FA
