Canare BCP-B53 75 Ohm 3G-SDI BNC Crimp Plug for L-4.5CHD/V4-4.5CHD
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

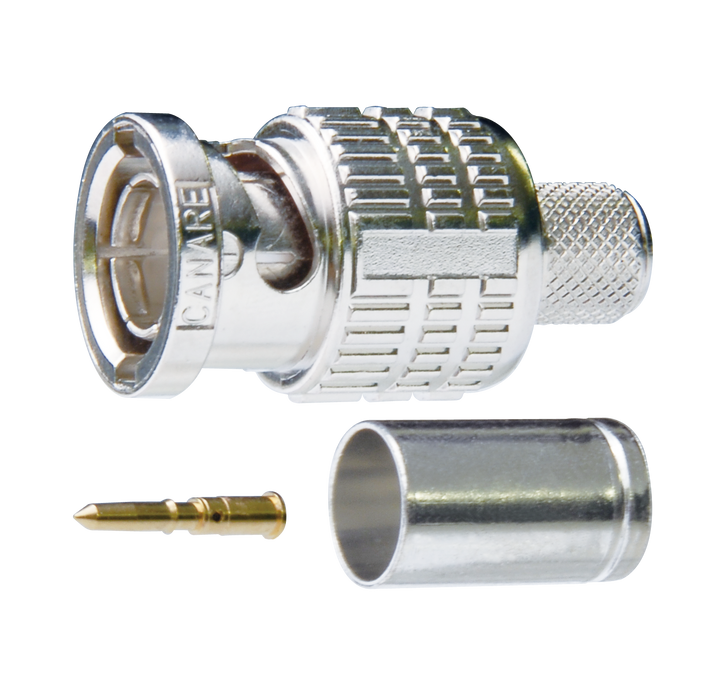

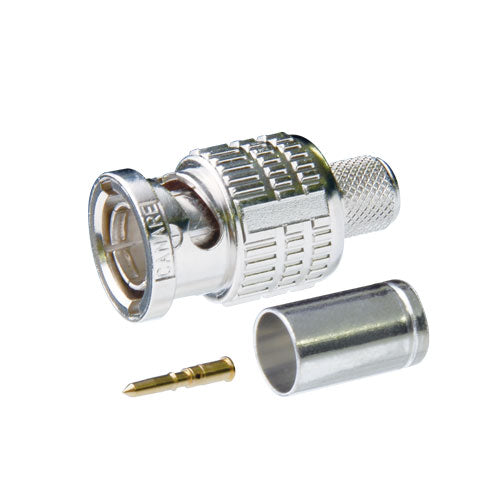

The Canare BCP-B53 is a 75 ohm BNC crimp plug from the BCP-B series, sized for L-4.5CHD and V4-4.5CHD (also Belden 1694A) coaxial cable. The B series is Canare's workhorse connector for 3G-SDI and 6G-SDI, HD-SDI and SD-SDI, and it meets SMPTE 424M and 292M with a return loss of 26.4 dB at 3 GHz and a VSWR of 1.1 or less up to 3 GHz.
Each plug uses the same crimp pin and sleeve system as the rest of the Canare BNC range: the gold plated center pin snaps into place so it cannot shift during assembly, the die-cast body is elongated for finger grip in crowded panels, and a position mark on the body lets you confirm the connector is locked. Strip and crimp with Canare tools and the assembly is done in seconds.
Features
- True 75 ohm construction with crimp pin and sleeve
- SMPTE 424M and 292M compliant for 3G-SDI, HD-SDI and SD-SDI
- Return loss 26.4 dB at 3 GHz, VSWR 1.1 or less up to 3 GHz
- Gold plated snap-lock center pin, die-cast body
- Elongated body and position mark for confident locking
- Superior cable pull strength
Works With
- Cable: Canare L-4.5CHD and V4-4.5CHD (also Belden 1694A)
- Replacement center pin: B11020D, sleeve: BN7046
- Matching strain relief boot: CB05A
- Crimp die set: TCD-35CA
