Canare BCP-B51F 75 Ohm 3G-SDI BNC Crimp Plug for L-5CFW/V-5CFW
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

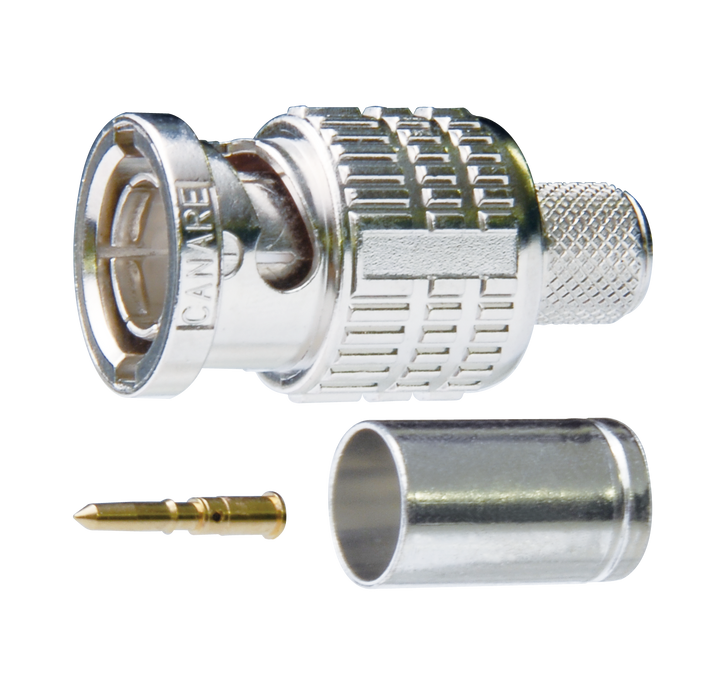

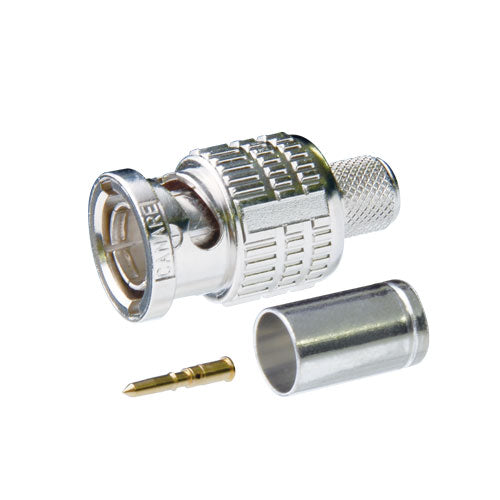

The Canare BCP-B51F is a 75 ohm BNC crimp plug from the BCP-B series, sized for L-5CFW and V-5CFW coaxial cable. The B series is Canare's workhorse connector for 3G-SDI and 6G-SDI, HD-SDI and SD-SDI, and it meets SMPTE 424M and 292M with a return loss of 26.4 dB at 3 GHz and a VSWR of 1.1 or less up to 3 GHz.
Each plug uses the same crimp pin and sleeve system as the rest of the Canare BNC range: the gold plated center pin snaps into place so it cannot shift during assembly, the die-cast body is elongated for finger grip in crowded panels, and a position mark on the body lets you confirm the connector is locked. Strip and crimp with Canare tools and the assembly is done in seconds.
Features
- True 75 ohm construction with crimp pin and sleeve
- SMPTE 424M and 292M compliant for 3G-SDI, HD-SDI and SD-SDI
- Return loss 26.4 dB at 3 GHz, VSWR 1.1 or less up to 3 GHz
- Gold plated snap-lock center pin, die-cast body
- Elongated body and position mark for confident locking
- Superior cable pull strength
Works With
- Cable: Canare L-5CFW and V-5CFW
- Replacement center pin: B11020D, sleeve: B75004A
- Matching strain relief boot: CB05A
- Crimp die set: TCD-5CF or TCD-55FA
